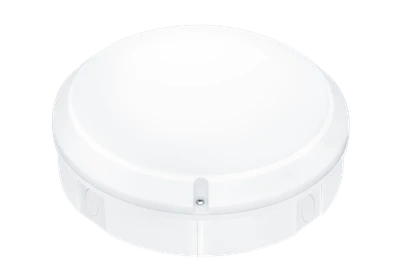

THORNeco LED Bulkhead Lara 300mm IP65 20,5W 2200/1800/1200lm 830/35/40K

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Type of grid None Housing material Plastic Colour consistency (McAdam ellipse) SDCM4 Protection class according to IEC 61140 II Colour rendering index (CRI/Ra) 80-89 Lumen setting adjustable Discrete positions Cover material Plastic opal Housing colour White Colour of light White Colour temperature switchable Discrete positions Impact resistance (IK rating) IK10 Control gear LED driver constant current Filament test according to IEC 60695-2-11 850 C – 30 s Photobiological safety according to EN 62471 RG0 Light distribution Symmetric Voltage type AC Light outlet Direct Light source type LED non-replaceable Width – mm Conductor cross section – mm² Recess width – mm Recess diameter – mm Outer diameter 300 mm Length – mm Power factor 0.9 Rated life time L70/B50 at 25 °C 74000 h Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Max. number of luminaires per miniature circuit breaker C16 9 Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Max. number of luminaires per miniature circuit breaker B16 7 Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Flickering value Pst LM – Stroboscope effect value SVM – Unified Glare Rating (UGR) 23 Number of poles – Number of lamps 1 Height/depth 75 mm Maximum system power 20.5 W Recess height/depth – mm Recess length – mm Lamp power – W Colour temperature 3000 – 4000 K Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Nominal current – – – mA Suitable for suspended mounting No With movement sensor No Light source included Yes With light sensor No Suitable for emergency lighting No Control gear included Yes Suitable for recessed mounting No Suitable for surface mounting Yes Suitable for ceiling mounting No Constant luminous flux control No Suitable for light line configuration No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With air slots No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 No Dimming 0-10 V No IFTTT support available No Replaceable control gear Yes Dimming DSI No Dimming DALI-2 No Bluetooth operated No Dimming with push-button No Compatible with Amazon Alexa No Compatible with Apple HomeKit No Compatible with Google Assistant No Dimming touch and dim No Dimming Zigbee No Dimming programmable No Dimming RF No Dimming DALI No Dimming 1-10 V No Dimming DMX No Dimming potentiometer (integrated) No Dimming manufacturer’s proprietary system No Dimming mains voltage modulation No Dimming leading edge No Dimming trailing edge No · Technical Data Sheet – Click to Download
