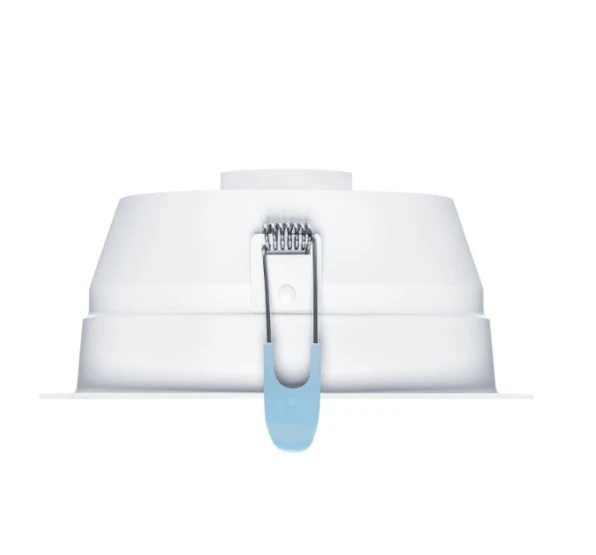

THORNeco LED Downlight Amy 150mm IP44 10W 1000lm 830/35/40K

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Reflector None Lamp cap/base None Impact resistance (IK rating) IK03 Colour rendering index (CRI/Ra) 80-89 Lumen setting adjustable Continuously variable Cover material Plastic opal Adjustability not adjustable Housing colour White Protection class according to IEC 61140 I Colour of light White Control gear LED driver constant current Colour consistency (McAdam ellipse) SDCM5 Filament test according to IEC 60695-2-11 650 C – 30 s Photobiological safety according to EN 62471 RG0 Light distribution Symmetric Colour temperature switchable No Light outlet Direct Voltage type AC Light source type LED non-replaceable Housing material Aluminium Length – mm Width – mm Number of poles – Conductor cross section – mm² Outer diameter 170 mm Max. number of luminaires per miniature circuit breaker C16 50 Unified Glare Rating (UGR) 24 Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Max. number of luminaires per miniature circuit breaker B16 46 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Stroboscope effect value SVM – Flickering value Pst LM – Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 100,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) – % Height/depth 73 mm Number of lamps 1 Maximum system power 10 W Rated life time L70/B50 at 25 °C 74000 h Power factor 0.9 Lamp power – W Colour temperature 3000 – 4000 K Connectable conductor cross section – mm² Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C With movement sensor No Cut-out diameter – mm Suitable for suspended mounting No With light sensor No Suitable for wall mounting No IFTTT support available No Constant luminous flux control No Brushed surface No Fit for workplace acc. EN 12464-1 No Suitable for surface mounting No Luminaire may be covered with thermally insulating material No Control gear included Yes Light source included Yes Suitable for recessed mounting Yes Suitable for traverse mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for pedestal/floor mounting No Suitable for ceiling mounting Yes Dimming mains voltage modulation No Dimming trailing edge Yes Dimming potentiometer (integrated) No Dimming LineSwitch No Dimming manufacturer’s proprietary system No Dimming 0-10 V No Dimming 1-10 V No Dimming DMX No Dimming DALI No Suitable for light-track mounting No Suitable for clamp-mounting No Dimming Zigbee No Dimming with push-button No Dimming DALI-2 No Suitable for low voltage cable system No Dimming DSI No Replaceable control gear Yes Compatible with Amazon Alexa No Compatible with Google Assistant No Compatible with Apple HomeKit No Dimming RF No Dimming programmable No Dimming leading edge Yes Dimming sine wave reduction No Dimming touch and dim No · Technical Data Sheet – Click to Download
