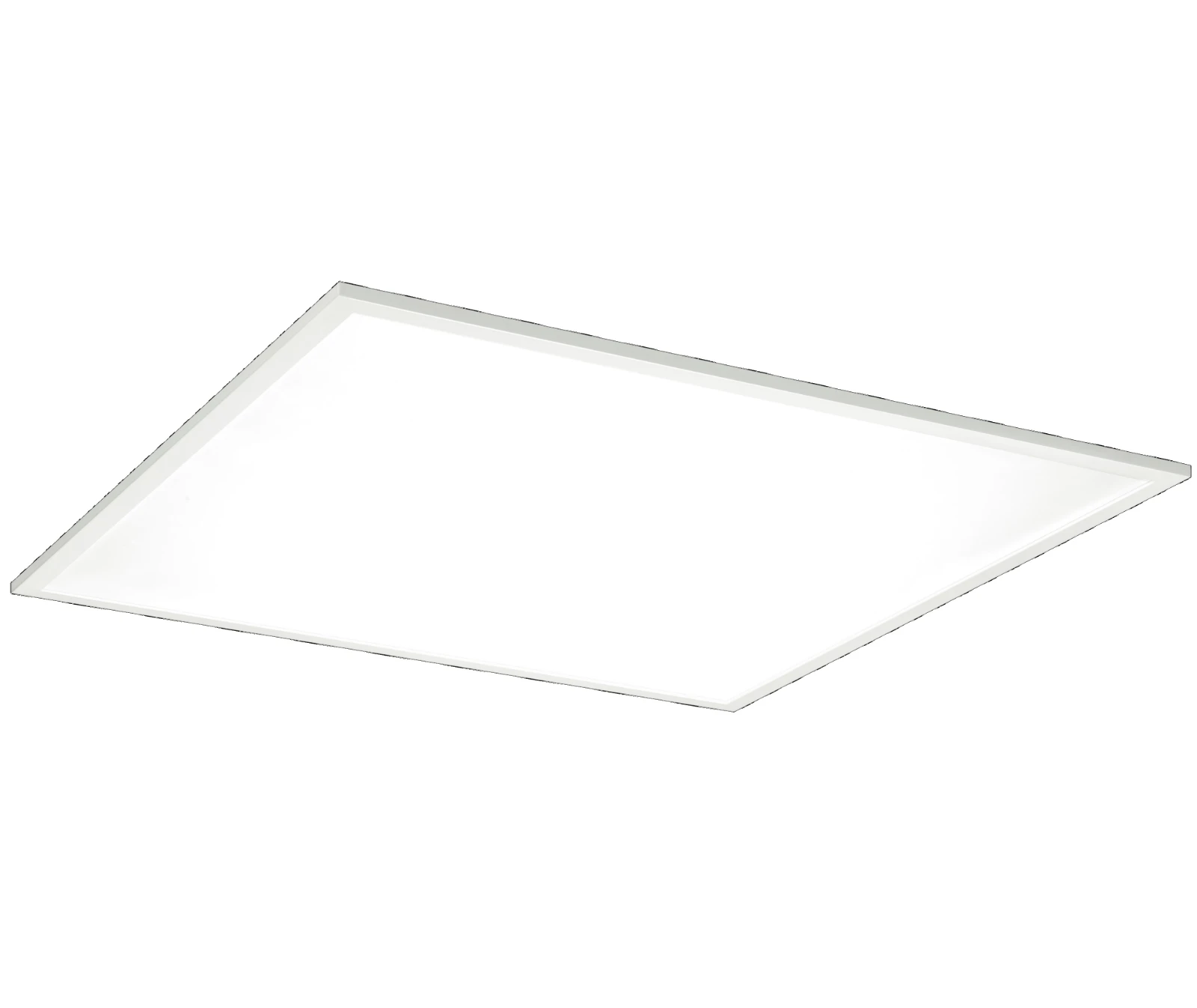

THORNeco LED Panel Anna 2 596mm IP20 36W 4400lm 830/35/40K

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Type of grid None Impact resistance (IK rating) IK03 Colour rendering index (CRI/Ra) 80-89 Protection class according to IEC 61140 II Housing material Steel Colour consistency (McAdam ellipse) SDCM4 Colour temperature switchable Discrete positions Cover material Plastic opal Lumen setting adjustable Discrete positions Filament test according to IEC 60695-2-11 650 C – 30 s Housing colour White Photobiological safety according to EN 62471 RG0 Light distribution Asymmetric Control gear LED driver constant current Light outlet Direct Voltage type AC Light source type LED non-replaceable Width 596 mm Power factor 0.9 Rated life time L70/B50 at 25 °C 74000 h Maximum system power 36 W Recess height/depth – mm Recess length – mm Number of lamps 1 Number of poles – Height/depth 60 mm Recess diameter – mm Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Max. number of luminaires per miniature circuit breaker B16 31 Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Unified Glare Rating (UGR) 19 Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Max. number of luminaires per miniature circuit breaker C16 44 Stroboscope effect value SVM – Flickering value Pst LM – Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Conductor cross section – mm² Recess width – mm Outer diameter – mm Length 596 mm Lamp power – W Nominal voltage 220 – 240 V Nominal current – – – mA Colour temperature 3000 – 4000 K Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Suitable for suspended mounting No With movement sensor No Light source included Yes Control gear included Yes Suitable for recessed mounting Yes Suitable for emergency lighting No With light sensor No Constant luminous flux control No Dimming 0-10 V No Dimming DALI No Dimming 1-10 V No Dimming manufacturer’s proprietary system No Dimming mains voltage modulation No Dimming DMX No Dimming potentiometer (integrated) No IFTTT support available No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Luminaire may be covered with thermally insulating material No Fit for workplace acc. EN 12464-1 Yes Suitable for light line configuration No Suitable for ceiling mounting Yes Suitable for surface mounting No Dimming DALI-2 No Replaceable control gear Yes Bluetooth operated No Dimming DSI No Compatible with Amazon Alexa No Compatible with Apple HomeKit No Compatible with Google Assistant No With air slots No Dimming with push-button No Dimming touch and dim No Dimming Zigbee No Dimming leading edge No Dimming trailing edge No Dimming programmable No Dimming RF No · Technical Data Sheet – Click to Download
