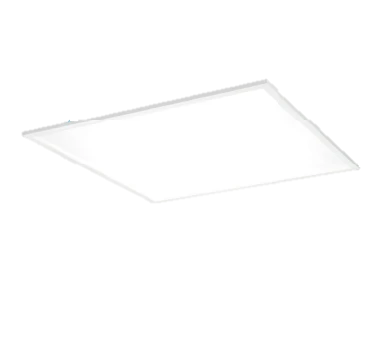

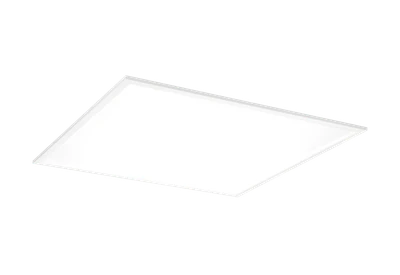

THORNeco LED Panel Anna 596mm IP20 34W 3750lm 830/35/40K DALI

Description

Technical Specifications  Technical Specifications Ceiling / wall luminaire Type of grid None Lumen setting adjustable Continuously variable Impact resistance (IK rating) IK03 Protection class according to IEC 61140 II Colour rendering index (CRI/Ra) 80-89 Colour consistency (McAdam ellipse) SDCM4 Cover material Plastic opal Housing colour White Colour temperature switchable Discrete positions Colour of light White Control gear LED driver constant current Filament test according to IEC 60695-2-11 650 C – 30 s Photobiological safety according to EN 62471 RG0 Light distribution Asymmetric Voltage type AC Light outlet Direct Light source type LED non-replaceable Housing material Aluminium Outer diameter – mm Conductor cross section – mm² Length 596 mm Width 596 mm Recess diameter – mm Recess width – mm Number of lamps 1 Height/depth 60 mm Flickering value Pst LM 1 Stroboscope effect value SVM – Failure rate at median useful life of 35,000 hrs at 25 °C ambient (tq) – % Failure rate at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 35,000 hrs at 25 °C ambient (tq) 85 % Lumen maintenance at median useful life of 75,000 hrs at 25 °C ambient (tq) – % Rated life time L70/B50 at 25 °C 74000 h Maximum system power 34 W Recess height/depth – mm Recess length – mm Failure rate at median useful life of 50,000 hrs at 25 °C ambient (tq) – % Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) 80 % Unified Glare Rating (UGR) 18 Max. number of luminaires per miniature circuit breaker B16 54 Max. number of luminaires per miniature circuit breaker C16 54 Power factor 0.95 Number of poles – Lamp power – W Colour temperature 3000 – 4000 K Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Nominal voltage 220 – 240 V Nominal current – – – mA Light source included Yes With movement sensor No Suitable for emergency lighting No With light sensor No Suitable for suspended mounting No Suitable for ceiling mounting Yes Suitable for surface mounting No Suitable for recessed mounting Yes Constant luminous flux control No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Fit for workplace acc. EN 12464-1 Yes Suitable for light line configuration No Control gear included Yes IFTTT support available No Dimming manufacturer’s proprietary system No Dimming potentiometer (integrated) No Dimming with push-button Yes Dimming Zigbee No With air slots No Luminaire may be covered with thermally insulating material No Dimming touch and dim No Dimming programmable No Dimming RF No Replaceable control gear Yes Dimming leading edge No Dimming trailing edge No Dimming mains voltage modulation No Dimming DALI Yes Dimming DMX No Dimming 1-10 V No Dimming 0-10 V No Compatible with Google Assistant No Compatible with Apple HomeKit No Compatible with Amazon Alexa No Dimming DALI-2 No Bluetooth operated No Dimming DSI Yes · Technical Data Sheet – Click to Download
