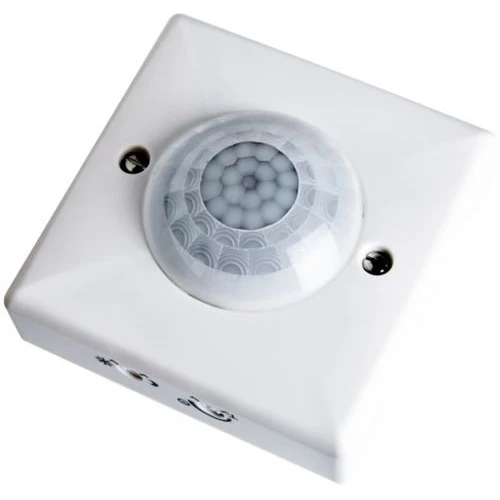

Timeguard Presence Detector Ceiling PIR Surface 360°

Description

Technical Specifications  Technical Specifications Motion detector Width 86 mm Height 86 mm RAL-number (similar) – Recess diameter – mm Scan angle 360 ° Diameter reach on floor – m Recess length – mm Recess width – mm Max. switching power 1500 W Max. starting current – A Max. reach frontally 10 m Recess depth – mm Switching-on delay – s Max. reach sideways 10 m Switch-off delay – s Minimum depth of back box – mm Max. switching power LED 420 W Control current – mA Min. switch-on time 60 s Max. duty cycle 30 min Optimum mounting height 2.5 m Number of switching zones – Min. starting current – A Max. presence range – m² Diameter – mm Depth 53 mm Frequency 50 – 60 Hz Response value luminosity 5 – 1000 lx Detection angle horizontal – – – ° Pivoting range sensor, horizontal – – – ° Pivoting range sensor, vertical – – – ° Transparent No Auxiliary input No Suitable for C-load No Remote operation No Creep-under protection No Staircase monitoring Yes Suitable for wireless transmission No Response value sensitivity adjustable No Dim function with dimmer basic element No Bridging switch No With remote control No Antibacterial treatment No Halogen free No Compatible with Google Assistant No Response value luminosity adjustable Yes Forced switch on Yes IFTTT support available No Compatible with Apple HomeKit No Suitable for ceiling mounting Yes Animal zone No HVAC-control Yes Constant light control No With signal unit No Teach-function for response value luminosity No Networkable No Forced switch off No Alarm function No Compatible with Amazon Alexa No
