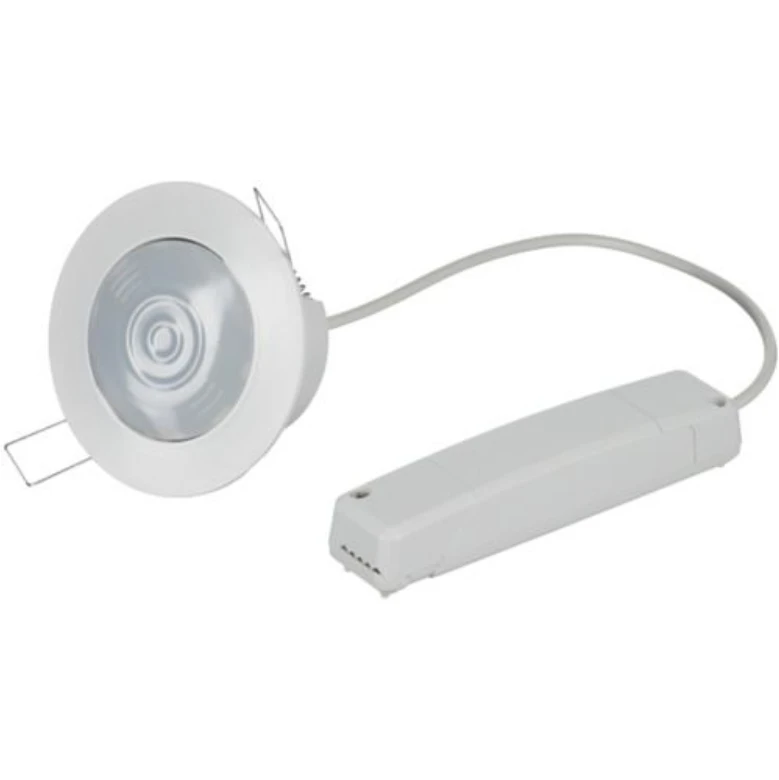

Timeguard Presence Detector Round HF Microwave Ceiling 360° Flush Mount
Timeguard Presence Detector Round HF Microwave Ceiling 360° Flush Mount
Timeguard Presence Detector Round HF Microwave Ceiling 360° Flush Mount - Image 2

Timeguard Presence Detector Round HF Microwave Ceiling 360° Flush Mount

£60.17 Incl. VAT

Microwave Detector – Flush Mount. For detection coverage beyond the scope of an enclosed space. · · · High frequency technology for instant reaction · · Up to 1000W loading for incandescent, 440VA fluorescent, energy saving lamps and 100W LED · · Enhanced 360° detection zone for optimum coverage · · Up to 7m diameter detection range (3.5m radius) for motion detection at 3m mounting height · · HF detects around partitions and through glass, doors and walls · · User-friendly adjustment for: Time ON: 30 seconds to 30 minutes Light Level: 5 to 1000 lux Requires a 64mm diameter cut out · · Not suitable for discharge lighting · · IP20 environmental rating (internal use only)

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: HF2R Categories: , , Brand: Product Code: 2500853035

Description

Technical Specifications  Technical Specifications Motion detector Width – mm RAL-number (similar) – Diameter reach on floor – m Scan angle 360 ° Recess length – mm Control current – mA Min. switch-on time 30 s Recess width – mm Recess diameter – mm Max. starting current – A Recess depth – mm Max. switching power 1000 W Max. reach sideways 7 m Max. reach frontally 7 m Switching-on delay – s Switch-off delay – s Diameter – mm Minimum depth of back box – mm Max. switching power LED 100 W Max. duty cycle 30 min Optimum mounting height 2.5 m Min. starting current – A Max. presence range – m² Number of switching zones – Height – mm Depth – mm Frequency 50 – 60 Hz Response value luminosity – – – lx Detection angle horizontal – – – ° Pivoting range sensor, horizontal – – – ° Pivoting range sensor, vertical – – – ° Bridging switch No With remote control No Creep-under protection No Staircase monitoring No Halogen free No Transparent No Auxiliary input No With signal unit No Teach-function for response value luminosity No Networkable No Suitable for wireless transmission No Response value sensitivity adjustable No Suitable for C-load No Remote operation No Dim function with dimmer basic element No HVAC-control No IFTTT support available No Suitable for ceiling mounting Yes Constant light control No Forced switch off No Alarm function No Animal zone No Response value luminosity adjustable Yes Antibacterial treatment No Compatible with Amazon Alexa No Compatible with Apple HomeKit No Compatible with Google Assistant No Forced switch on No
