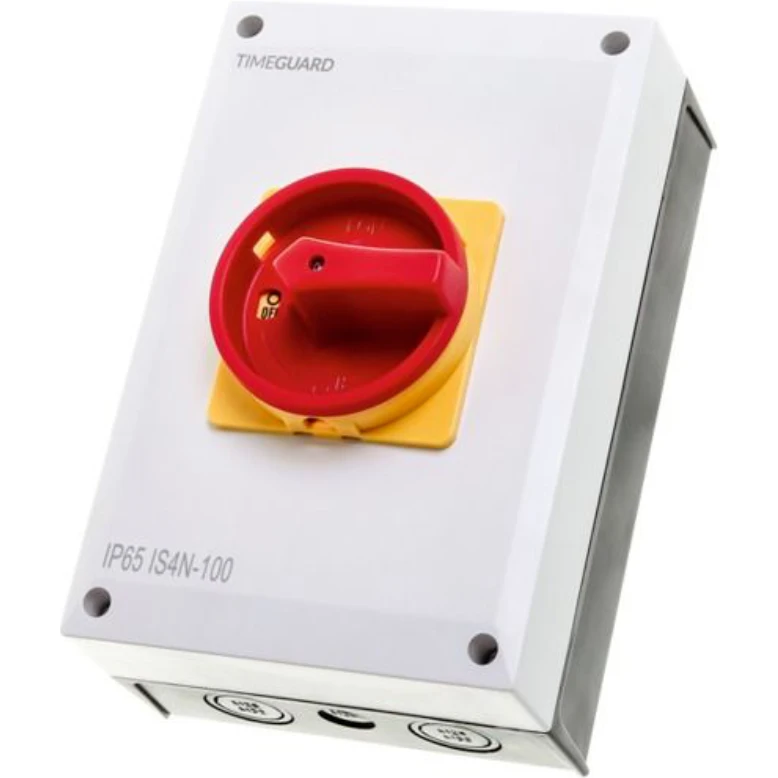

Timeguard Switch 4P Isolator Rotary IP65 100A
Awaiting product image

Timeguard Switch 4P Isolator Rotary IP65 100A

£189.34 Incl. VAT

The Weathersafe Rotary Isolator range is manufactured from tough, durable thermoplastic for outdoor switching protection. Designed with safety in mind, the interlocked front covers can only be removed when in OFF position. Lockable switch prevents tampering. · · · Four pole 100A switch · · Solid Neutral · · On load switch disconnectors · · Switch can be removed from DIN rail assembly allowing quick and easy first fix · · Interlocked front cover can only be removed when in OFF position · · Lockable switch prevents tampering · · IP65 weatherproof rating · · Tough durable thermoplastic construction · · Cable entry knockouts on enclosures

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IS4N-100 Categories: , , , Brand: Product Code: 2500853053

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated operation power at AC-3, 400 V 30 kW Number of auxiliary contacts as normally closed contact – Number of auxiliary contacts as normally open contact 4 Rated short-time withstand current lcw – kA Number of switches 1 Rated operation power at AC-23, 400 V 37 kW Rated permanent current Iu – A Conditioned rated short-circuit current Iq – kA Number of auxiliary contacts as change-over contact – Max. rated operation voltage Ue AC – V Rated permanent current at AC-21, 400 V – A Switching power at 400 V – kW Rated permanent current at AC-23, 400 V – A Number of poles 4 Rated operating voltage 220 – 240 V Version as emergency stop installation No Motor drive integrated No Version as main switch Yes Version as safety switch No Interlockable No Version as reversing switch No Version as maintenance-/service switch No Suitable for front mounting 4-hole No Suitable for distribution board installation No Suitable for intermediate mounting No Motor drive optional No Voltage release optional No
