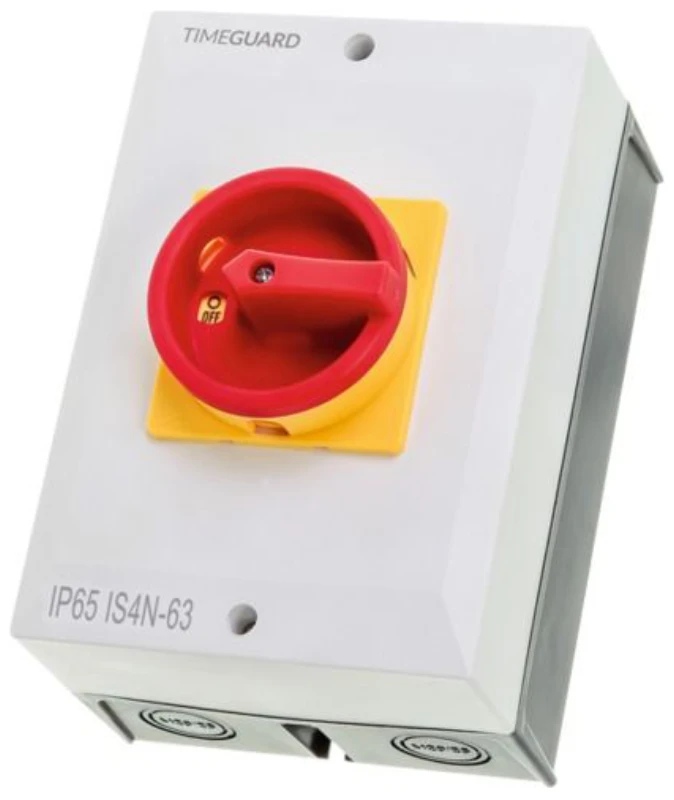

Timeguard Switch 4P Isolator Rotary IP65 63A
Awaiting product image

Timeguard Switch 4P Isolator Rotary IP65 63A

£52.15 Incl. VAT

The Weathersafe Rotary Isolator range is manufactured from tough, durable thermoplastic for outdoor switching protection. Designed with safety in mind, the interlocked front covers can only be removed when in OFF position. Lockable switch prevents tampering. · · · Four pole 63A switch · · Solid Neutral · · On load switch disconnectors · · Switch can be removed from DIN rail assembly allowing quick and easy first fix · · Interlocked front cover can only be removed when in OFF position · · Lockable switch prevents tampering · · IP65 weatherproof rating · · Tough durable thermoplastic construction · · Cable entry knockouts on enclosures

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: IS4N-63 Categories: , , , Brand: Product Code: 2500853052

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Rated permanent current Iu – A Number of auxiliary contacts as normally closed contact – Rated operation power at AC-3, 400 V 22 kW Number of auxiliary contacts as normally open contact 4 Conditioned rated short-circuit current Iq – kA Number of poles 4 Rated short-time withstand current lcw – kA Number of auxiliary contacts as change-over contact – Rated permanent current at AC-21, 400 V – A Rated operation power at AC-23, 400 V 22 kW Rated permanent current at AC-23, 400 V – A Switching power at 400 V – kW Number of switches 1 Max. rated operation voltage Ue AC – V Rated operating voltage 220 – 240 V Version as emergency stop installation No Version as main switch Yes Version as safety switch No Interlockable No Motor drive integrated No Version as maintenance-/service switch No Suitable for front mounting 4-hole No Suitable for distribution board installation No Voltage release optional No Version as reversing switch No Suitable for intermediate mounting No Suitable for front mounting centre No Motor drive optional No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/221522
