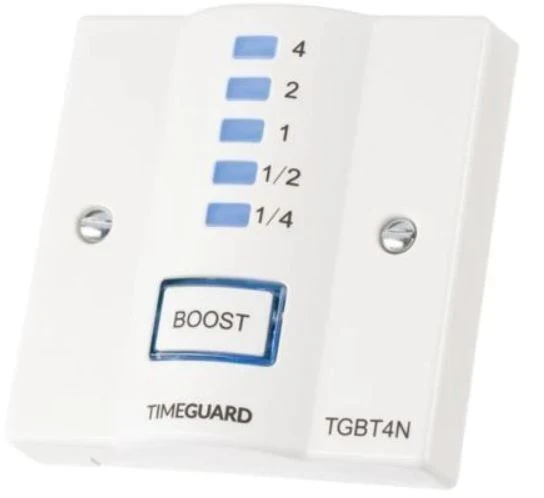

Timeguard TGBT4N Heater Booster 13A (Up to 4 Hours)
Timeguard TGBT4N Heater Booster 13A (Up to 4 Hours)
Timeguard TGBT4N Heater Booster 13A (Up to 4 Hours) - Image 2
Timeguard TGBT4N Heater Booster 13A (Up to 4 Hours) - Image 3
Timeguard TGBT4N Heater Booster 13A (Up to 4 Hours) - Image 4

Timeguard TGBT4N Heater Booster 13A (Up to 4 Hours)

£37.81 Incl. VAT

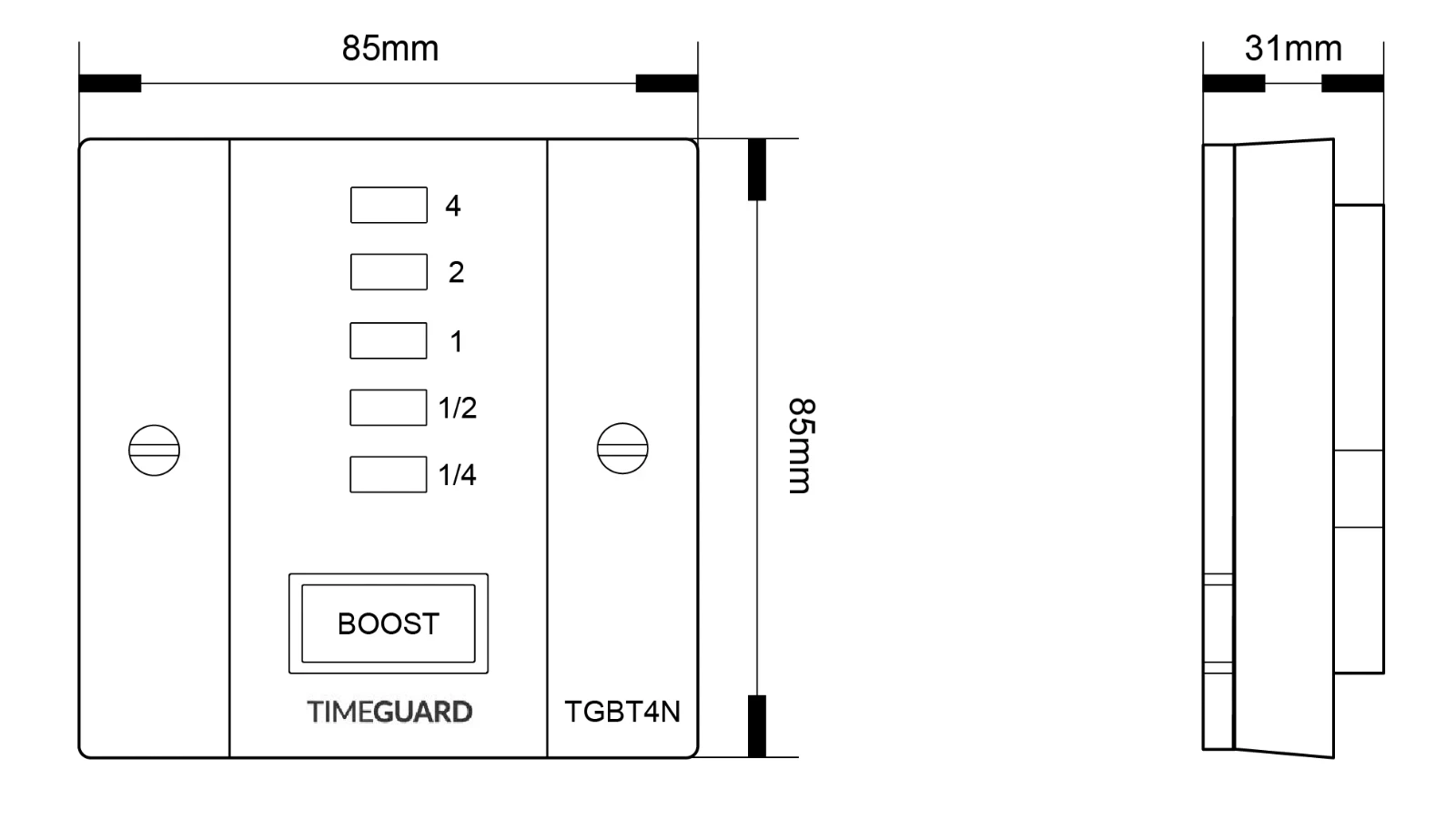

Automatic timer countdown selection for up to 4 hours – 13A (3kW) loading, for typical applications such as immersion heaters, room heaters, towel rails and lighting. Fits a standard flush or surface mount BS wall box min. 25mm deep · · · Timer Mode Boost · · Setting Type Digital · · Operating Voltage 230V AC · · Switch Rating 230V AC 13A Resistive (3kW) · · Operating Temperature -10 to +40degrees C · · Cable Connection 1.5 × 2.5mm 2 Flexible Cable · · EC Directives Conforms to Latest Directives · · Dimensions (mm) Width 85, Height 85, Depth 16

5 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TGBT4N Categories: , , Brand: Part Number: 2501283922

Description

Technical Specifications  Technical Specifications Programmable time switch Power reserve – h Nominal voltage 230 V Rated current 13 A Number of module spaces (modular system) – Recess depth – mm Depth of device 31 mm Number of contacts as normally closed contact – RAL-number (similar) – Max. power 3000 W Width of device 85 mm Frequency 50 – 60 Hz Twilight value adjustable – – – lx Minimum depth of back box 25 mm Height of device 85 mm Number of contacts as normally open contact – Shortest switching interval 15 min Number of contacts as change-over contact – Time setting 15 – 240 min Transparent No Auxiliary input No With connection for light sensor No Random generator No Astro/solar program No IFTTT support available No Compatible with Apple HomeKit No Compatible with Google Assistant No Compatible with Amazon Alexa No · Technical Data Sheet – Click to Download
