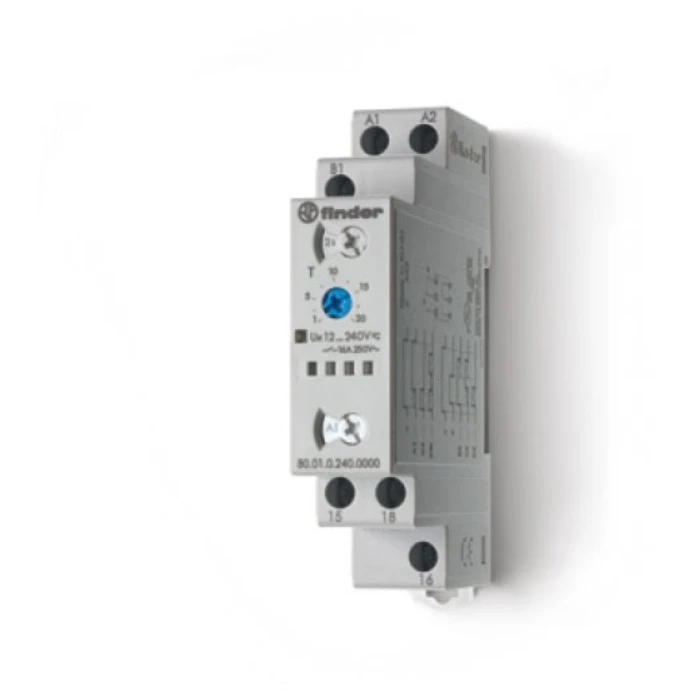

Finder Timer Modular 1Co Multifunction 16A 12-240V Ac/Dc Grey 17.5mm W
Finder Timer Modular 1Co Multifunction 16A 12-240V Ac/Dc Grey 17.5mm W
Finder Timer Modular 1Co Multifunction 16A 12-240V Ac/Dc Grey 17.5mm W - Image 2
Finder Timer Modular 1Co Multifunction 16A 12-240V Ac/Dc Grey 17.5mm W - Image 3

Finder Timer Modular 1Co Multifunction 16A 12-240V Ac/Dc Grey 17.5mm W

£61.03 Incl. VAT

Multi-voltage with a wide choice of timing functions, Finder’s range of modular and SMARTimers are suitable for residential, commercial and industrial applications as well as building automation. Finder timers are versatile, practical and suitable for a variety of applications. They can be single or multi-function, with time settings from 0.1s to 24h with a high degree of input/output insulation. The 2 in 1 Type 84.02 digital SMARTimer has two totally independent programmable channels. A big step forward for easier, flexible and instantaneous programming directly from your smartphone thanks to NFC technology. · · · Six time ranges from 0.1 s to 24 h · · Nominal voltage (12…240) V AC/DC · · Contact rated current: 6, 8 or 16 A (according to type) · · Solid state output (SSR): 1 A · · 17.5 mm wide

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 80.01.0.240.0000 Categories: , , , , , Brand: Product Code: 2500350007

Description

Technical Specifications  Technical Specifications Timer relay Voltage type for actuating AC/DC Type of electric connection Screw connection Depth 84 mm Height 56.5 mm Number of outputs, undelayed, normally closed contact 0 Number of outputs, undelayed, normally open contact 0 Nominal current 16 A Number of outputs, undelayed, change-over contact 0 Width 17.5 mm Number of outputs, delayed, normally open contact 0 Number of outputs, delayed, change-over contact 1 Time range 0.1 – 86400 s Number of outputs, delayed, normally closed contact 0 Rated control supply voltage at AC 60 Hz 12 – 240 V Rated control supply voltage at DC 12 – 240 V With semiconductor output No Outputs, reversible delayed/undelayed No Rated control supply voltage at AC 50 Hz 12 – 240 V Function floating contact on de-energization No Function star-delta No Function flashing, starting with pulse, fixed time No Function delay-on energization Yes Remote operation possible No Function delay on de-energization Yes Function floating contact on energization Yes Function pulse shaping Yes Function flashing, starting with pause, fixed time Yes Clock function, starting with pulse, variable No Clock function, starting with pause, variable No Suitable as remote control No Pluggable on auxiliary contact block No · Technical Data Sheet – Click to Download
