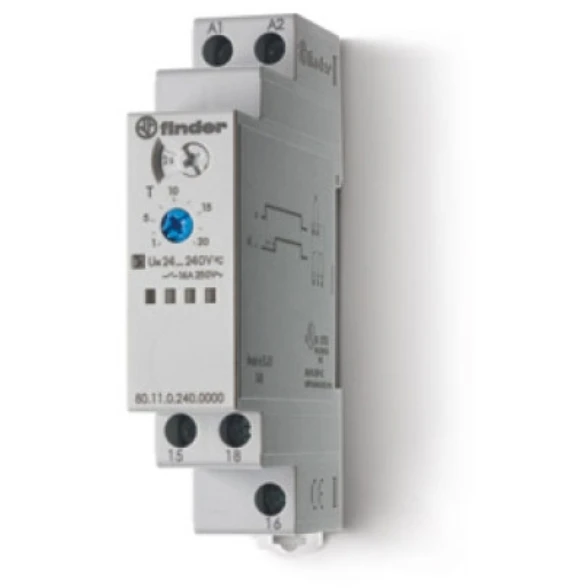

Finder Timer Modular 1Co On Delay 16A 24-240V Ac/Dc Grey 17.5mm Wide R
Finder Timer Modular 1Co On Delay 16A 24-240V Ac/Dc Grey 17.5mm Wide R
Finder Timer Modular 1Co On Delay 16A 24-240V Ac/Dc Grey 17.5mm Wide R - Image 2
Finder Timer Modular 1Co On Delay 16A 24-240V Ac/Dc Grey 17.5mm Wide R - Image 3

Finder Timer Modular 1Co On Delay 16A 24-240V Ac/Dc Grey 17.5mm Wide R

£76.90 Incl. VAT

Multi-voltage with a wide choice of timing functions, Finder’s range of modular and SMARTimers are suitable for residential, commercial and industrial applications as well as building automation. Finder timers are versatile, practical and suitable for a variety of applications. They can be single or multi-function, with time settings from 0.1s to 24h with a high degree of input/output insulation. The 2 in 1 Type 84.02 digital SMARTimer has two totally independent programmable channels. A big step forward for easier, flexible and instantaneous programming directly from your smartphone thanks to NFC technology.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 80.11.0.240.0000 Categories: , , , , , Brand: Product Code: 2500350008

Description

Technical Specifications  Technical Specifications Timer relay Voltage type for actuating AC/DC Depth 84 mm Type of electric connection Screw connection Height 56.5 mm Nominal current 16 A Width 17.5 mm Number of outputs, undelayed, normally closed contact 0 Number of outputs, undelayed, normally open contact 0 Number of outputs, undelayed, change-over contact 0 Number of outputs, delayed, normally closed contact 0 Number of outputs, delayed, normally open contact 0 Number of outputs, delayed, change-over contact 1 Time range 0.1 – 86400 s Rated control supply voltage at AC 50 Hz 24 – 240 V Rated control supply voltage at AC 60 Hz 24 – 240 V Rated control supply voltage at DC 24 – 240 V With semiconductor output No Outputs, reversible delayed/undelayed No Function delay on de-energization No Function floating contact on energization No Function floating contact on de-energization No Function star-delta No Function pulse shaping No Function flashing, starting with pause, fixed time No Function flashing, starting with pulse, fixed time No Function delay-on energization Yes Clock function, starting with pause, variable No Clock function, starting with pulse, variable No Suitable as remote control No Pluggable on auxiliary contact block No Remote operation possible No · Technical Data Sheet – Click to Download
