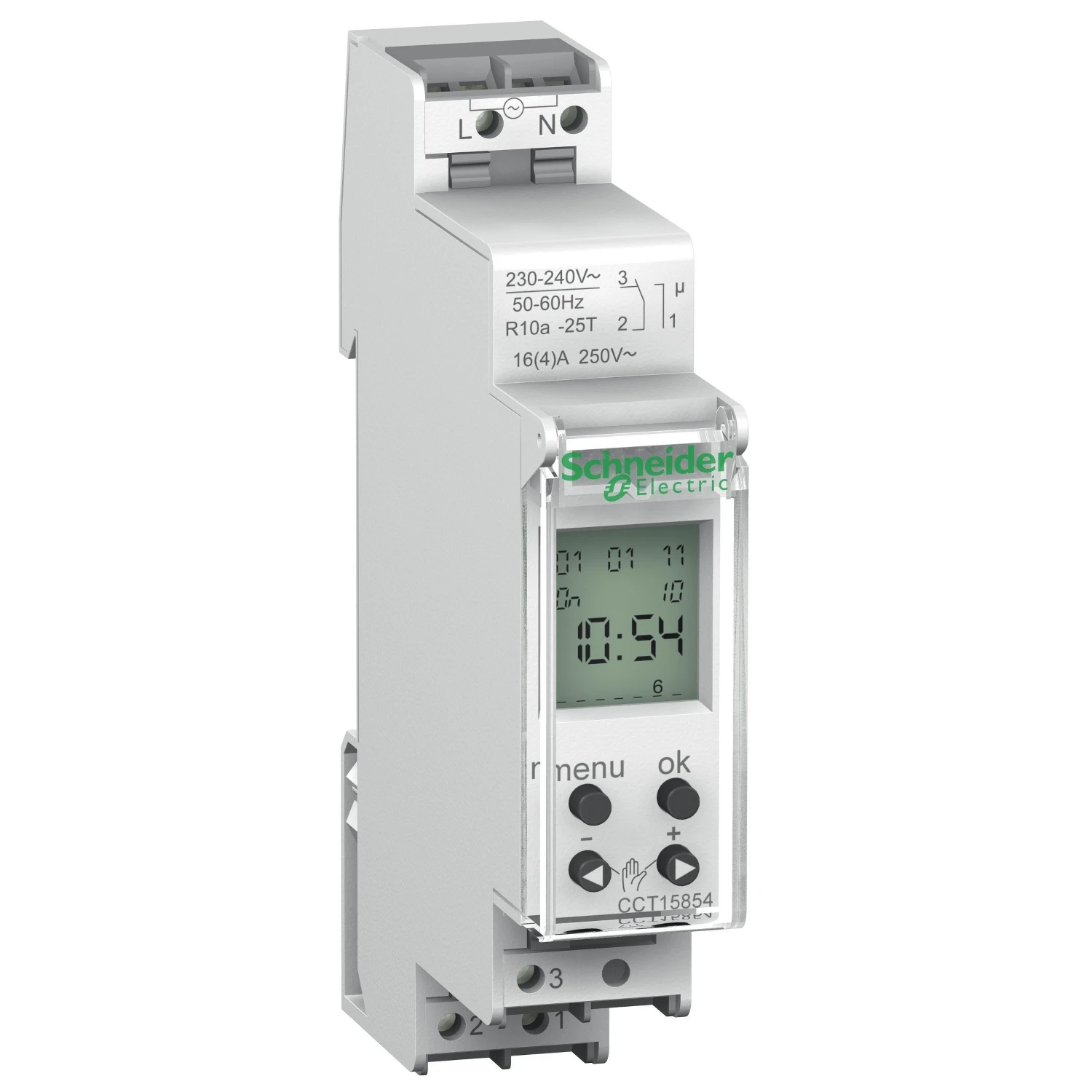

Timeswitch Ihp Digital 24H 7D 1 Channel 16A
Timeswitch Ihp Digital 24H 7D 1 Channel 16A
Timeswitch Ihp Digital 24H 7D 1 Channel 16A - Image 2
Timeswitch Ihp Digital 24H 7D 1 Channel 16A - Image 3

Timeswitch Ihp Digital 24H 7D 1 Channel 16A

£240.98 Incl. VAT

IHP digital time switch Width of 18mm (2 modules of 9mm) Automatically switches On and Off loads according to the program entered by the user on weekly level Swiching cycle is 7 days (weekly) Number of switching operations: 56 Savings on mains cut off with battery reserve: 10 years Manual override is possible 1 channel output. · · · They are easy to use by pressing on the control push-button. · · They are simple to implement (mechanical compatibility with the electrical distribution comb- busbar). · · MINp and MINt timers can signal the end of the time delay by flickering of the lamplight. · · Silent electronic timer · · Adjustable · · Savings on mains cut off with battery reserve: 10 years · · Manual override is possible · · 1 channel output

13 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CCT15854 Categories: , , Brand: Part Number: 2500574191

Description

Technical Specifications  Technical Specifications Digital time switch for distribution board Height 90 mm Width 18 mm Nominal switching current at 250 V AC 16 A Shortest switching time channel 1 1 min Shortest switching time channel 2 – min Accuracy per day 0.5 s Autonomy in hours 52560 Autonomy in years 10 Number of channels 1 Number of memory locations – Mains synchronous Yes Quartz controlled No Frequency supply voltage 50 – 60 Hz Supply voltage 196 – 253 V Depth 66 mm Width in number of modular spacings 1 Potential free switch contact Yes Switching preselection No Radio-controlled (DCF77) No Automatic switching summer-/winter time Yes External pushbutton input Yes Manual operation Yes GPS (global positioning system) No Memory card included No Annual program No Impulse program No Holiday program Yes 24 h program Yes Radio-controlled No External programming Yes 60 min. program No Text guidance in display Yes Cycle program No Random program No Hour meter No Weekly program Yes Astro/solar program No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2191321
