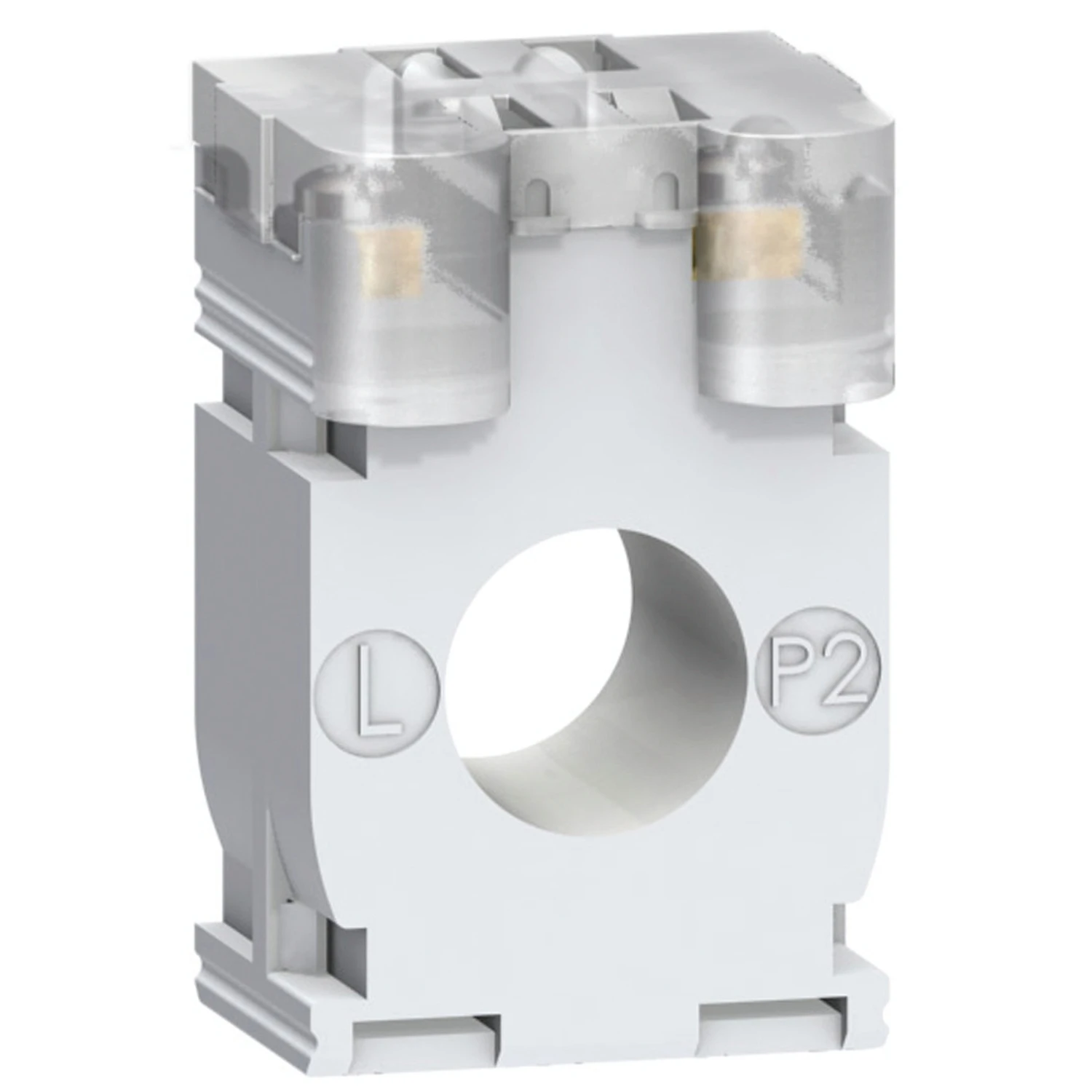

Schneider Electric Transformer 200/5 Trop Class 1 6Va 21mm Cable
This current transformer, tropicalised for cable, has a line rated current of 200 A and a secondary current rating of 5 A. This current transformer allow a maximum cable outer diameter of 21 mm. Burden and accuracy class as follows: class 0.5 maximum power: 4 VA, class 1 maximum power: 5.5 VA, class 3 maximum power: 6 VA. · · · This current transformer, tropicalised for cable, has a line rated current of 200 A and a secondary current rating of 5 A. · · This current transformer allow a maximum cable outer diameter of 21 mm. · · Colour brown · · Burden and accuracy class as follows: class 0.5 maximum power: 4 VA, class 1 maximum power: 5.5 VA, class 3 maximum power: 6 VA.
Description
Technical Specifications Technical Specifications Current transformer Opening diameter 21 mm Accuracy class 0.5 Rated secondary current 5 A Rated secondary apparent power 6 VA Rated primary current 200 A Number of primary inputs 1 Calibrated Yes With shock protection No Snap mounting No With copper rail No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188810
