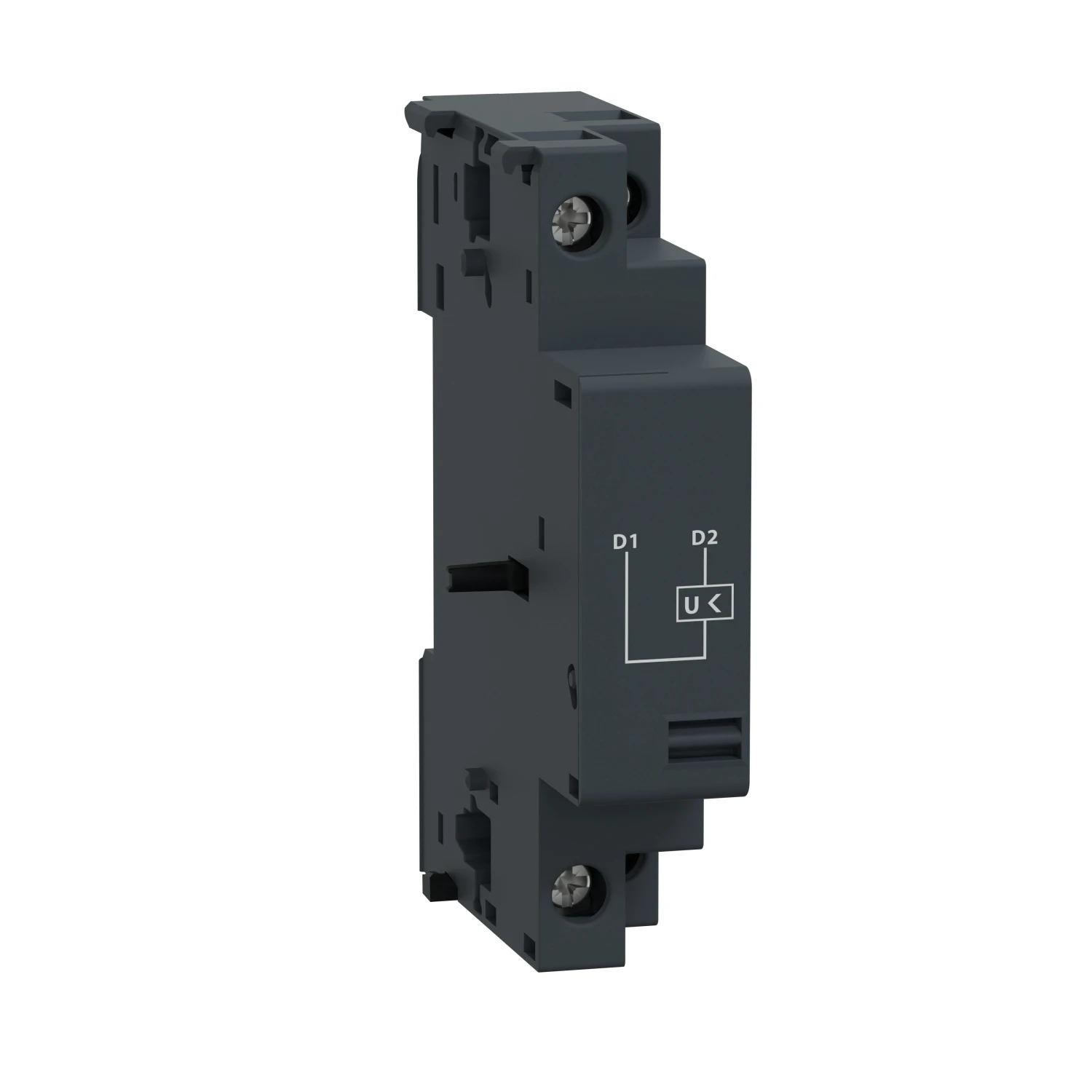

Trip Shunt Undervoltage 220-240V AC 50Hz

TeSys GV electrical trip, MN undervoltage release, 220-240V AC 50Hz, for motor circuit breakers GV2, GV3. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys GV electrical trip, MN undervoltage release, 220-240V AC 50Hz, for motor circuit breakers GV2, GV3. · · It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. · · Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. · · To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. · · Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · Tightening torque: 1.4Nm · · Inrush power: 12VA AC/ 8W DC · · Hold-in power consumption: 3.5VA AC/ 1.1W DC · · Threshold tripping voltage: 0.7 – 0.35Un · · On-load factor: 100%
