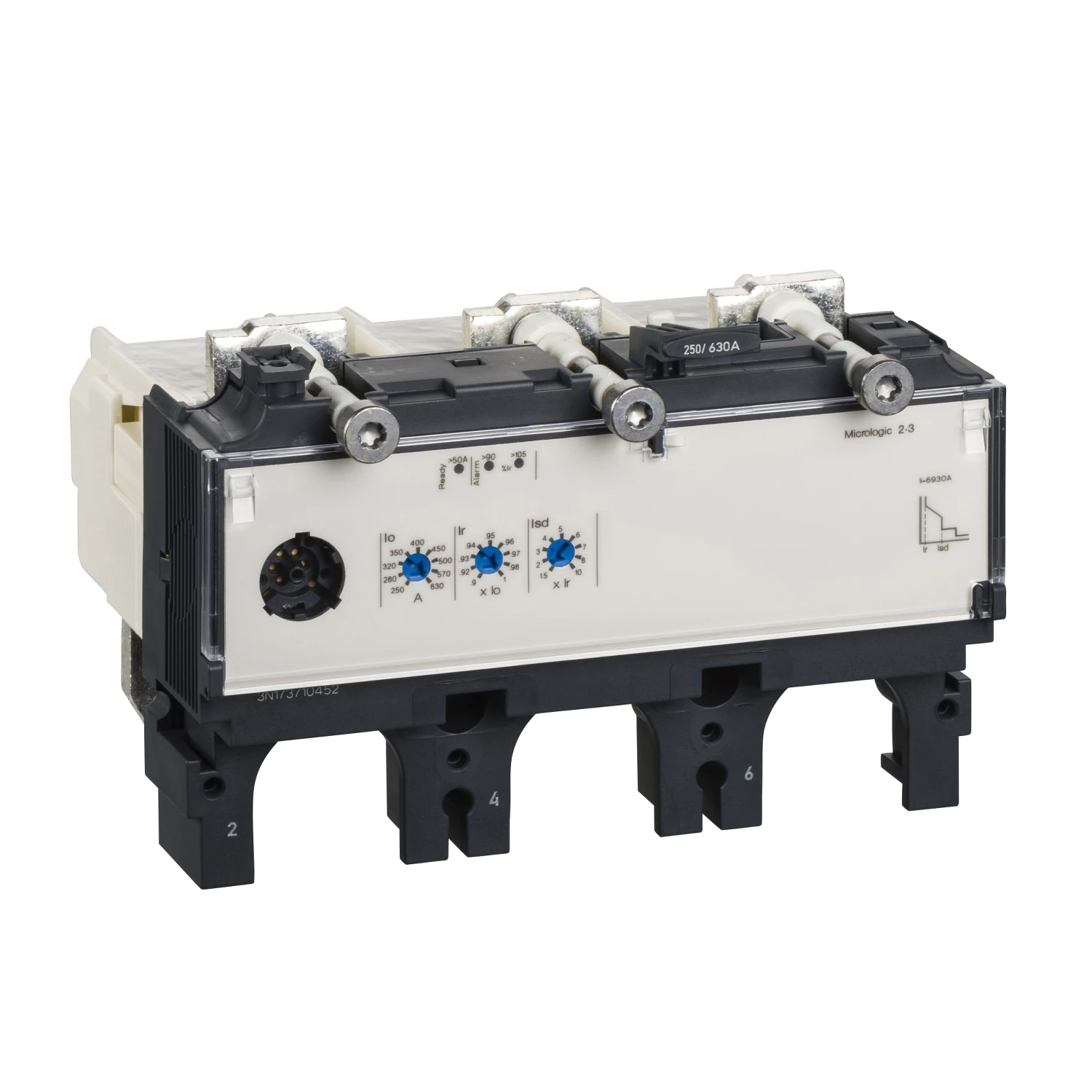

Trip Unit Micrologic 2.3 Electronic Triple Pole 3D 630A
£620.00 Incl. VAT
This Micrologic 2.3 is a 3 poles 3d electronic trip unit used on Compact NSX 630 circuit breakers. This 630A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. Micrologic 2.3 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and Compact NSX basic frame. · · · This Micrologic 2.3 is a 3 poles 3d electronic trip unit used on Compact NSX 630 circuit breakers. · · This 630A rating electronic trip unit is an optimum choice for all standard and specific applications. · · It embeds an adjustable long time protection against overloads. · · It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. · · Micrologic 2.3 indicates overloads with Alarm LEDs. · · The green Ready LED flashes if the circuit breaker is ready to trip. · · This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and Compact NSX basic frame.
Out of stock
Description
Technical Specifications Technical Specifications Trip block for power circuit-breaker Short-circuit release function Undelayed Rated permanent current Iu 630 A Initial value of the undelayed short-circuit release – setting range 6900 A End value adjustment range undelayed short-circuit release 6900 A Number of poles 3 Overload release current setting 225 – 630 A · Technical Data Sheet – Click to Download
