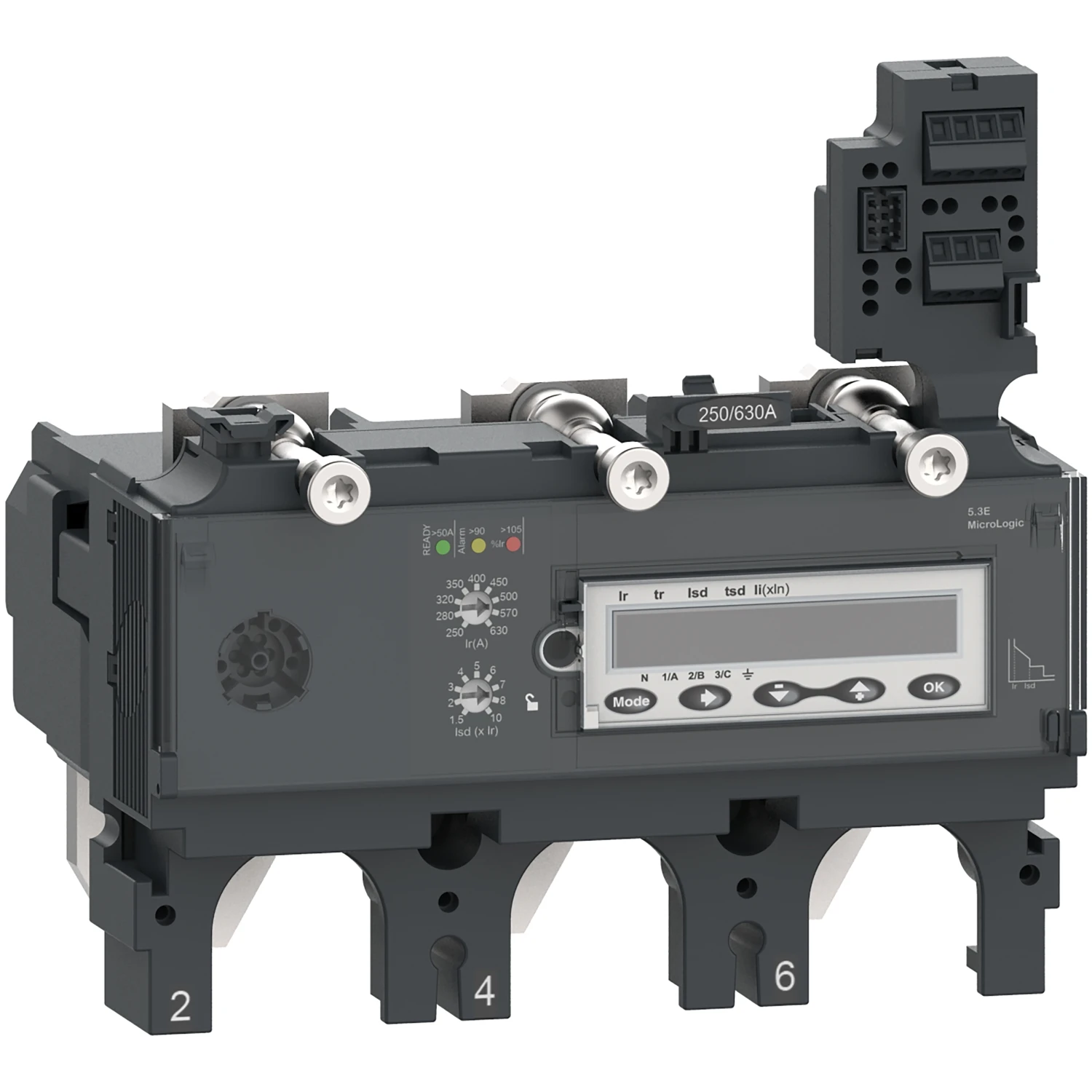

Trip Unit Micrologic 5.3 E For Compact Nsx 630 Circuit Breakers Electronic Rating 630A 3 Poles 3D
Trip Unit Micrologic 5.3 E For Compact Nsx 630 Circuit Breakers Electronic Rating 630A 3 Poles 3D
Trip Unit Micrologic 5.3 E For Compact Nsx 630 Circuit Breakers Electronic Rating 630A 3 Poles 3D - Image 2
Trip Unit Micrologic 5.3 E For Compact Nsx 630 Circuit Breakers Electronic Rating 630A 3 Poles 3D - Image 3
Trip Unit Micrologic 5.3 E For Compact Nsx 630 Circuit Breakers Electronic Rating 630A 3 Poles 3D - Image 4

Trip Unit Micrologic 5.3 E For Compact Nsx 630 Circuit Breakers Electronic Rating 630A 3 Poles 3D

£1,574.23 Incl. VAT

This MicroLogic 5.3 E (Energy) is a 3 poles 3d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 630A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 5.3 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 5.3 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame. · · · Poles description 3 Pole · · Rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 · · Network frequency 50/60 Hz · · Trip unit rating 630 A at 40 C

8 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C6335E630 Categories: , , Brand: Part Number: 2501503834

Description

Technical Specifications  Technical Specifications Trip block for power circuit-breaker Voltage type of supply voltage DC Type of motor protection Electronic release Short-circuit release function Delayed Voltage type (operating voltage) AC Width 139.7 mm Rated permanent current Iu 630 A Depth 112.6 mm Overload release current setting 250 – 630 A Height 136.2 mm Number of poles 3 Rated switch current 630 A Number of auxiliary contacts as change-over contact 0 Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Supply voltage AC 60 Hz – – – V Supply voltage DC 24 – 24 V Operating voltage at AC 50 Hz 690 – 690 V Operating voltage at AC 60 Hz 690 – 690 V Operating voltage at DC – – – V Current setting undelayed short-circuit release 945 – 6930 A Current setting delayed short-circuit release 375 – 6300 A With ground fault protection function No External power supply required Yes · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205404
