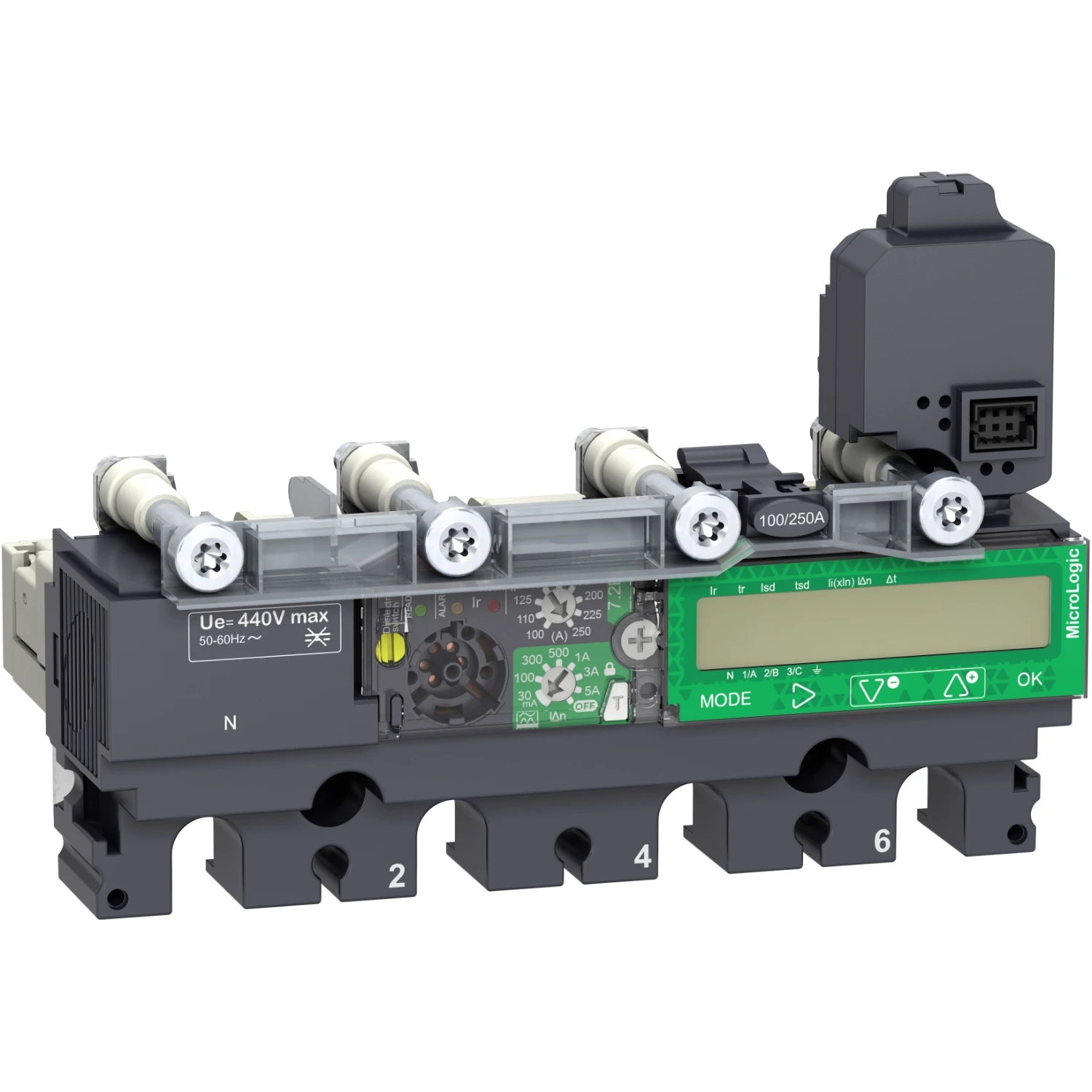

Trip Unit Micrologic 7.2 E For Compact Nsx 100/160/250 Circuit Breakers Electronic Rating 100A 4 Poles 4D
Trip Unit Micrologic 7.2 E For Compact Nsx 100/160/250 Circuit Breakers Electronic Rating 100A 4 Poles 4D
Trip Unit Micrologic 7.2 E For Compact Nsx 100/160/250 Circuit Breakers Electronic Rating 100A 4 Poles 4D - Image 2
Trip Unit Micrologic 7.2 E For Compact Nsx 100/160/250 Circuit Breakers Electronic Rating 100A 4 Poles 4D - Image 3

Trip Unit Micrologic 7.2 E For Compact Nsx 100/160/250 Circuit Breakers Electronic Rating 100A 4 Poles 4D

£1,918.75 Incl. VAT

This MicroLogic 7.2 E (Energy) is a 4 poles 4d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 100A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also adjustable short-time protection and instantaneous protection against short-circuits. MicroLogic 7.2 E Vigi trip unit offers an integrated adjustable earth-leakage protection. MicroLogic 7.2 E indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. MicroLogic 7.2 E is equipped with a display module that gives energy measurement and allows fine adjustment settings. An earth leakage pre-alarm can be remotely available by installing the optional SDx module (LV429532). This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame. · · · Poles description 4 Pole · · Rated operational voltage 440 V AC 50/60 Hz · · Network frequency 50/60 Hz · · Trip unit rating 100 A at 40 C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: C1047E100 Categories: , , Brand: Part Number: 2501503778

Description

Technical Specifications  Technical Specifications Trip block for power circuit-breaker Voltage type of supply voltage DC Short-circuit release function Delayed Type of motor protection Electronic release Voltage type (operating voltage) AC Width 139.7 mm Height 96.9 mm Depth 90.3 mm Rated permanent current Iu 100 A Number of poles 4 Number of auxiliary contacts as change-over contact 0 Supply voltage DC 24 – 24 V Supply voltage AC 60 Hz – – – V Overload release current setting 40 – 100 A Rated switch current 100 A Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Operating voltage at AC 50 Hz 440 – 440 V Operating voltage at AC 60 Hz 440 – 440 V Operating voltage at DC – – – V Current setting undelayed short-circuit release 150 – 1500 A Current setting delayed short-circuit release 60 – 1000 A With ground fault protection function No External power supply required Yes · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205415
