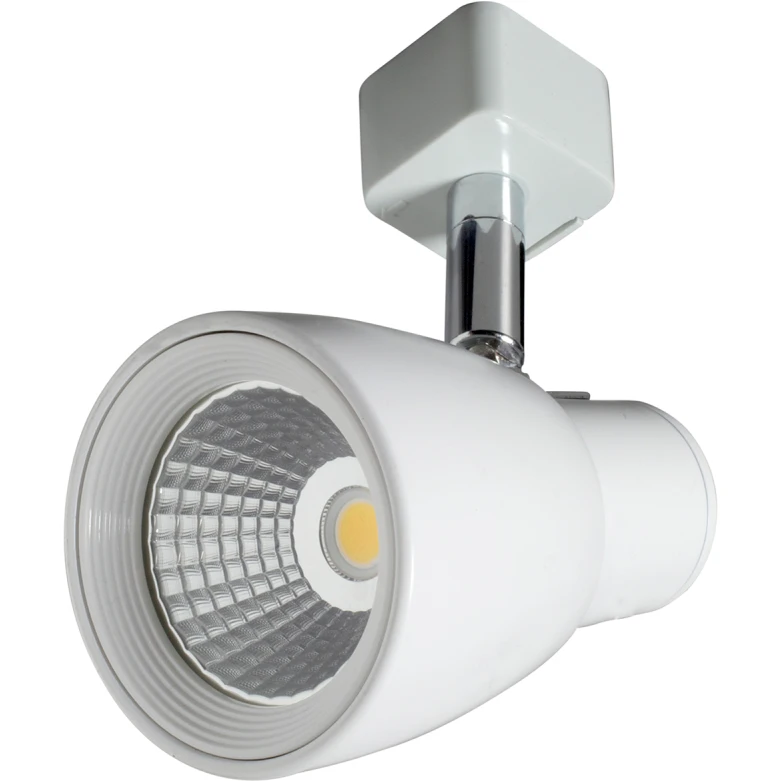

TROY 10W LED track spot, IP20, White, 3000K

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Outer diameter – mm Length 97 mm Width 65 mm Rated luminous flux acc. IEC 62722-2-1 – lm Rated life time L70/B50 at 25 °C 30000 h Power factor 0.9 Height/depth 132 mm Number of lamps – Unified Glare Rating (UGR) 21.1 Luminaire efficacy 96 lm/W Number of poles – Luminous intensity – cd Recess width – mm Conductor cross section – mm² Recess length – mm Total harmonic distortion 109.1 Maximum system power 9.7 W Recess height/depth – mm Lamp power – – – W Connectable conductor cross section – – – mm² Nominal voltage 220 – 240 V Colour temperature 3000 – 3000 K Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for recessed mounting No Suitable for traverse mounting No With movement sensor No With light sensor No Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Luminous flux 930 – 930 lm Suitable for suspended mounting No Suitable for pedestal/floor mounting No Suitable for clamp-mounting No Control gear included No Dimming leading edge No Dimming with push-button No Dimming sine wave reduction No Dimming manufacturer’s proprietary system No Dimming mains voltage modulation No Fit for workplace acc. EN 12464-1 No Light source included No Brushed surface No Dimming 1-10 V No Dimming potentiometer (integrated) No Suitable for low voltage cable system No Suitable for ceiling mounting No Dimming touch and dim No Dimming LineSwitch No Dimming RF No Dimming programmable No Luminaire may be covered with thermally insulating material No Suitable for surface mounting No Suitable for light-track mounting No No dimming function Yes Dimming trailing edge No Dimming DALI No Dimming 0-10 V No Dimming Zigbee No Dimming DMX No Dimming DSI No · Technical Data Sheet – Click to Download
