FULL-8359
3 product images available
Cable & Cable Management

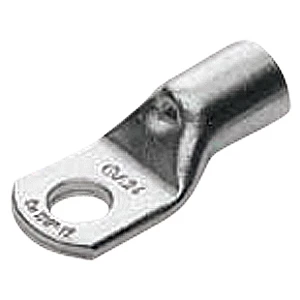

Cembre 150mm² Copper lug M14 stud [Pack of 25]

SKU: A30-M14Go Magpie ID: 5060062331527

150mm² Copper tube crimping lug M14 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Finish: Electrolytically Tin Plated · · Fully Insulated: no · · CE: yes

£9.31inc VAT£7.76 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper Surface protection Tinned Connecting angle 180° (horizontal) AWG size 250 kcmil Nominal cross section 150 mm² Number of fixing holes 1 Flange shape Ring shape Insulated No Bolt dimension (metric) 14 Slender flange model No With sight-hole Yes · Technical Data Sheet – Click to Download
