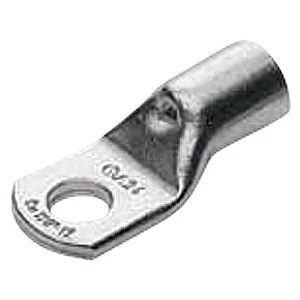

Cembre 185mm² Copper lug M14 stud [Pack of 15]
£12.41 Incl. VAT
185mm² Copper tube crimping lug M14 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Finish: Electrolytically Tin Plated · · Fully Insulated: no · · CE: yes
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) AWG size 300 kcmil Surface protection Tinned Bolt dimension (metric) 14 Flange shape Ring shape Nominal cross section 185 mm² Number of fixing holes 1 Slender flange model No With sight-hole Yes Insulated No · Technical Data Sheet – Click to Download
