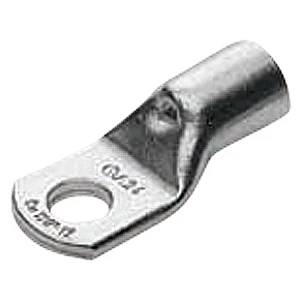

Tube Crimping Lug Copper 300mm Stud: 16mm 106mm X 44mm
Tube Crimping Lug Copper 300mm Stud: 16mm 106mm X 44mm
Tube Crimping Lug Copper 300mm Stud: 16mm 106mm X 44mm - Image 2
Tube Crimping Lug Copper 300mm Stud: 16mm 106mm X 44mm - Image 3
Tube Crimping Lug Copper 300mm Stud: 16mm 106mm X 44mm - Image 4

Tube Crimping Lug Copper 300mm Stud: 16mm 106mm X 44mm

£17.63 Incl. VAT

300mm² Copper tube crimping lug M16 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Finish: Electrolytically Tin Plated · · Fully Insulated: no · · CE: yes

21 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A60-M16 Categories: , , Brand: Part Number: 2500025509

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Material Copper Connecting angle 180° (horizontal) AWG size 500 kcmil Bolt dimension (metric) 16 Conductor category Class 5 = flexible Flange shape Ring shape Surface protection Tinned Number of fixing holes 1 With sight-hole Yes Nominal cross section 300 mm² Slender flange model No Insulated No · Technical Data Sheet – Click to Download
