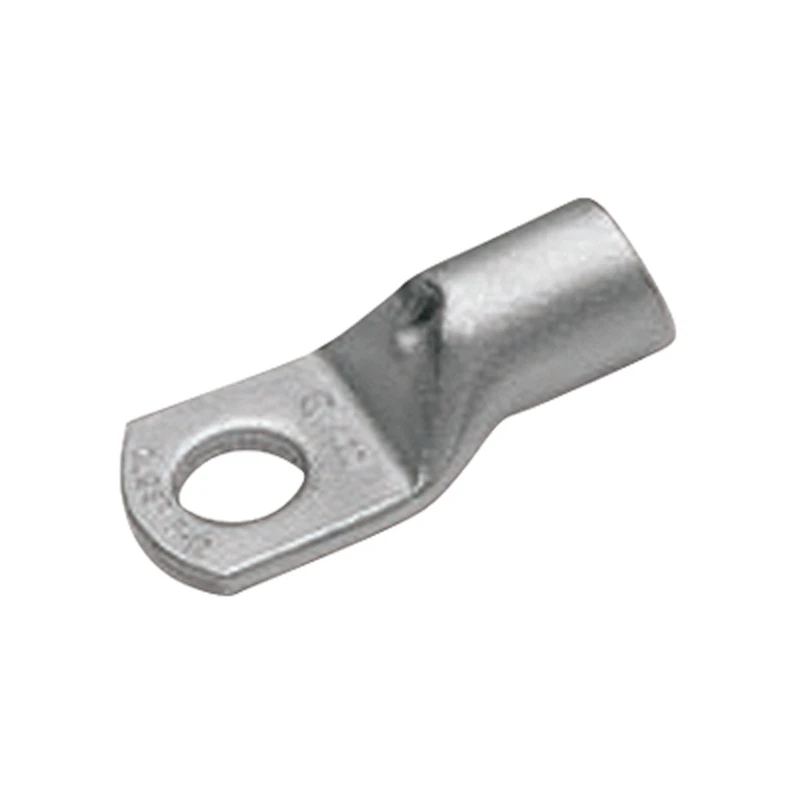

Tube Crimping Lug Copper 95mm Stud: 8mm 50mm X 27mm.
Tube Crimping Lug Copper 95mm Stud: 8mm 50mm X 27mm.
Tube Crimping Lug Copper 95mm Stud: 8mm 50mm X 27mm. - Image 2
Tube Crimping Lug Copper 95mm Stud: 8mm 50mm X 27mm. - Image 3
Tube Crimping Lug Copper 95mm Stud: 8mm 50mm X 27mm. - Image 4

Tube Crimping Lug Copper 95mm Stud: 8mm 50mm X 27mm.

£2.90 Incl. VAT

95mm² Copper tube crimping lug for extra flexible copper conductor M8 stud · · · Annealed to guarantee optimum ductility · · Insulation sleeve form to allow easy introduction of the conductor · · Maximum Voltage Rating: 11kV · · Operating Temperate Range -50°C to +150°C · · Manufactured from electrolytic Copper tube with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Finish: Electrolytically Tin Plated · · Fully Insulated: no · · CE: yes

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A20-M8 Categories: , , Brand: Part Number: 2500006078

Description

Technical Specifications  Technical Specifications Copper tube crimping lug Connecting angle 180° (horizontal) Conductor category Class 6 = very flexible Material Copper Surface protection Tinned AWG size 000 Bolt dimension (metric) 8 Flange shape Ring shape Number of fixing holes 1 Nominal cross section 95 mm² Insulated No With sight-hole Yes Slender flange model No · Technical Data Sheet – Click to Download
