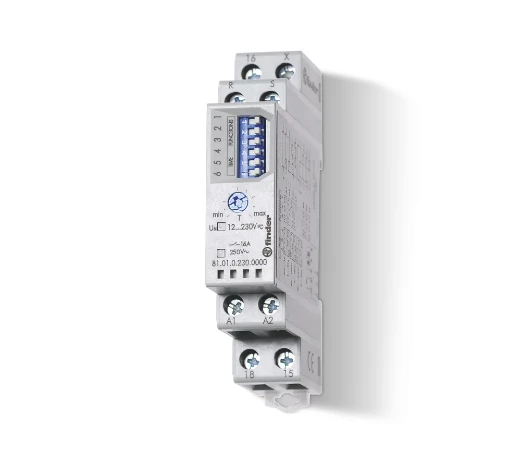

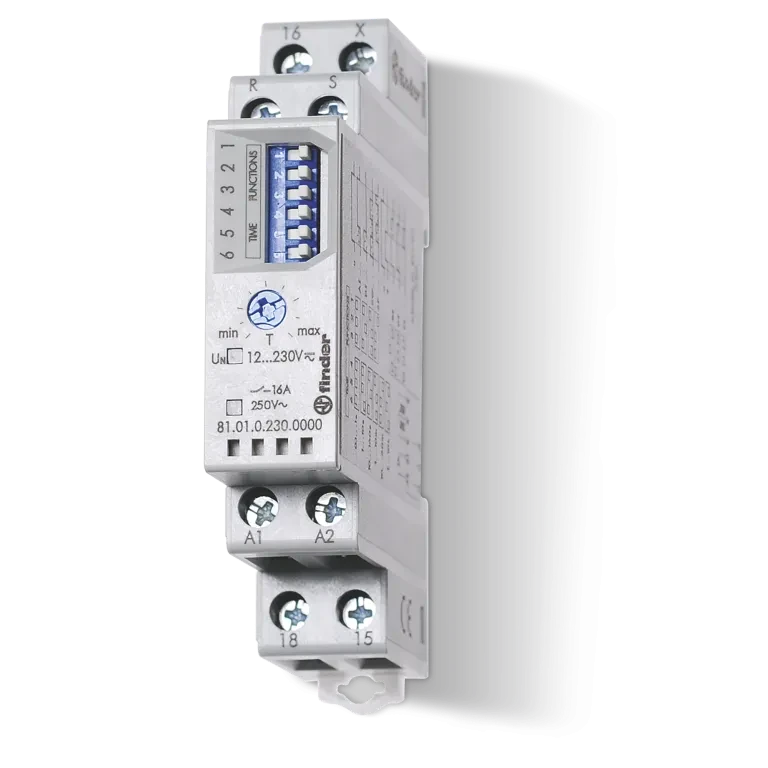

TYPE 81.01 – MODULAR TIMER

Type 81.01 AC (50/60 Hz)/DC Modular timer, Multi-voltage (non polarized DC), Multi-function, suitable for 35mm rail (EN60715) mount. Functions: • AI: On-Delay • DI: Interval • SW: Symmetrical flasher (start pulse On) • SP: Symmetric flasher (start pulse Off) • BE: Off-delay with control signal • DE: Interval with the control signal on • EEb: Interval with control signal off · · · Six time ranges from 0.1 s to 10 h · · Seven functions (4 with supply start and 3 with signal start with Reset function) · · Nominal voltage (12…230) V AC/DC · · Reset function · · One module 17.5 mm wide housing · · 35 mm rail (EN 60715) mounting · · Break points on fingers and base · · Supplied in 2m lengths · · UL Recognised: UL 1565 | E509564 · · Flame Resistance: V0 UL94
