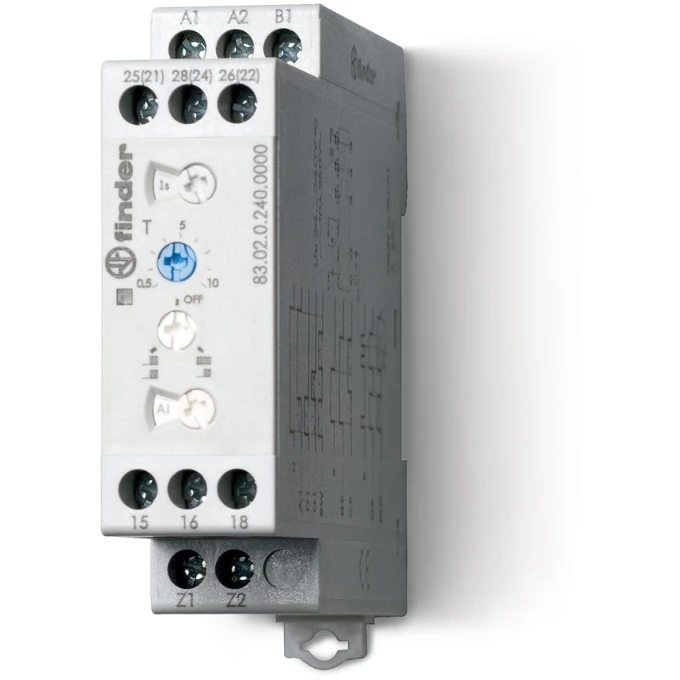

TYPE 83.02 – MODULAR TIMER 12A

Type 83.02 is a modular timer, 22.5 mm wide, multi-voltage with 2 delayed contacts or 1 delayed contact + 1 instantaneous contact. Equipped with adjustable timing with external potentiometer. It has the following functions: • AI: On-Delay • DI: Interval • GI: Pulse delayed • SW: Symmetrical flasher (start pulse On) • BE: Off-delay with control signal • CE: On and Off-Delay with control signal • DE: Interval with control signal on • WD: Watchdog · · · Multi-function · · Eight time scales from 0.05 s to 10 days · · 2 Pole (timed + instantaneous options), external time setting potentiometer option · · Wide power supply range (24… 240) V AC/DC · · 22.5 mm wide · · 35 mm rail (EN 60715) mount · · “Blade + cross”: Both flat blade and cross-head screwdrivers can be used to adjust the range and function selectors, the timing trimmer, and to disengage the 35 mm rail clip · · Compliant with EN 45545-2: 2013 (protection against fire and fumes) · · Compliant with EN 61373 (resistance to shock and vibration, category 1, class B) · · Compliant WithEN 50155 (resistance to temperature and humidity, class T1)
