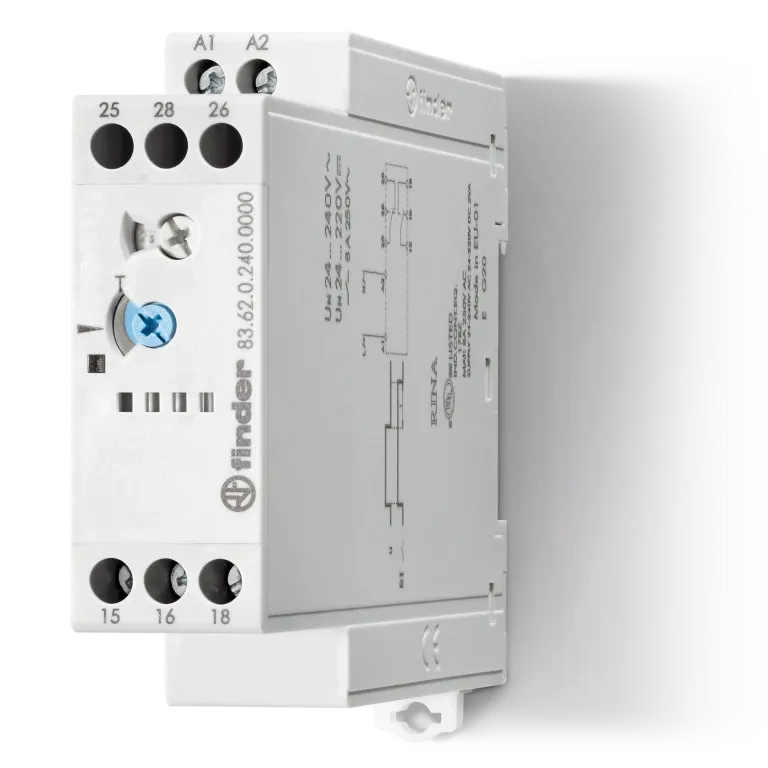

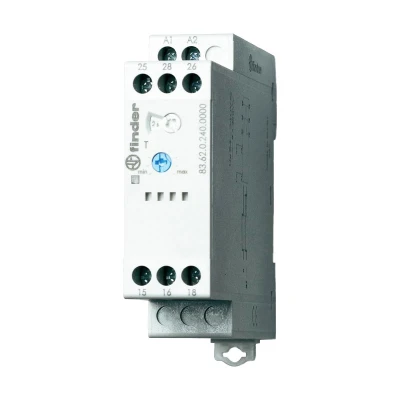

TYPE 83.62 – MODULAR TIMER 8A

Type 83.62 Power off-delay (True off-delay) modular timer, 2 pole, multi-voltage. · · · Mono-function · · Time scales: 0.05 s to 3 minutes · · True Off Delay · · Wide supply range (24…240)V AC/DC · · 22.5 mm wide · · 35 mm rail (EN 60715) mount · · “Blade + cross”: Both flat blade and cross-head screwdrivers can be used to adjust the range and function selectors, the timing trimmer, and to disengage the 35 mm rail clip · · Compliant with EN 45545-2: 2013 (protection against fire and fumes) and · · Compliant with EN 61373 (resistance to shock and vibration, category 1, class B) · · Compliant WithEN 50155 (resistance to temperature and humidity, class T1)
