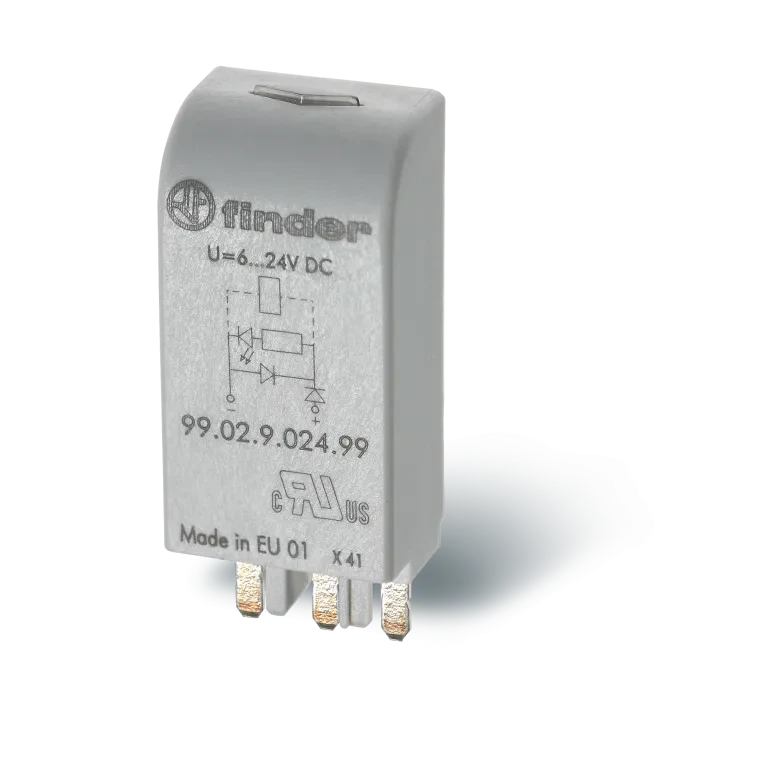

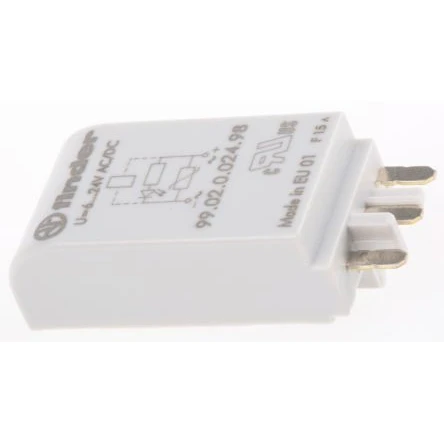

TYPE 99.02 – Coil Indication And EMC Suppression Modules

Depending on module selected, they can provide: suppression of coil back emf on switch-off, LED indication to show when the coil in energized, protection against reverse polarity applied across the coil terminals, by-pass of troublesome leakage currents in the coil circuit. · · · Green LED + Varistor module – ATEX compliant (Ex ec)* · · For both AC and DC coils. · · Limits reverse voltage limited toapproximately 2.5 times the the supply voltage · · When using DC coils insignificant increase in the relay release time · · LED indicator lights up when the coil is energized. · · Plug In for replacement · · Coil voltage: 230V AC · · AC1 Rating: 40A · · Depth: 60mm · · Normal State Configuration: 2NO
