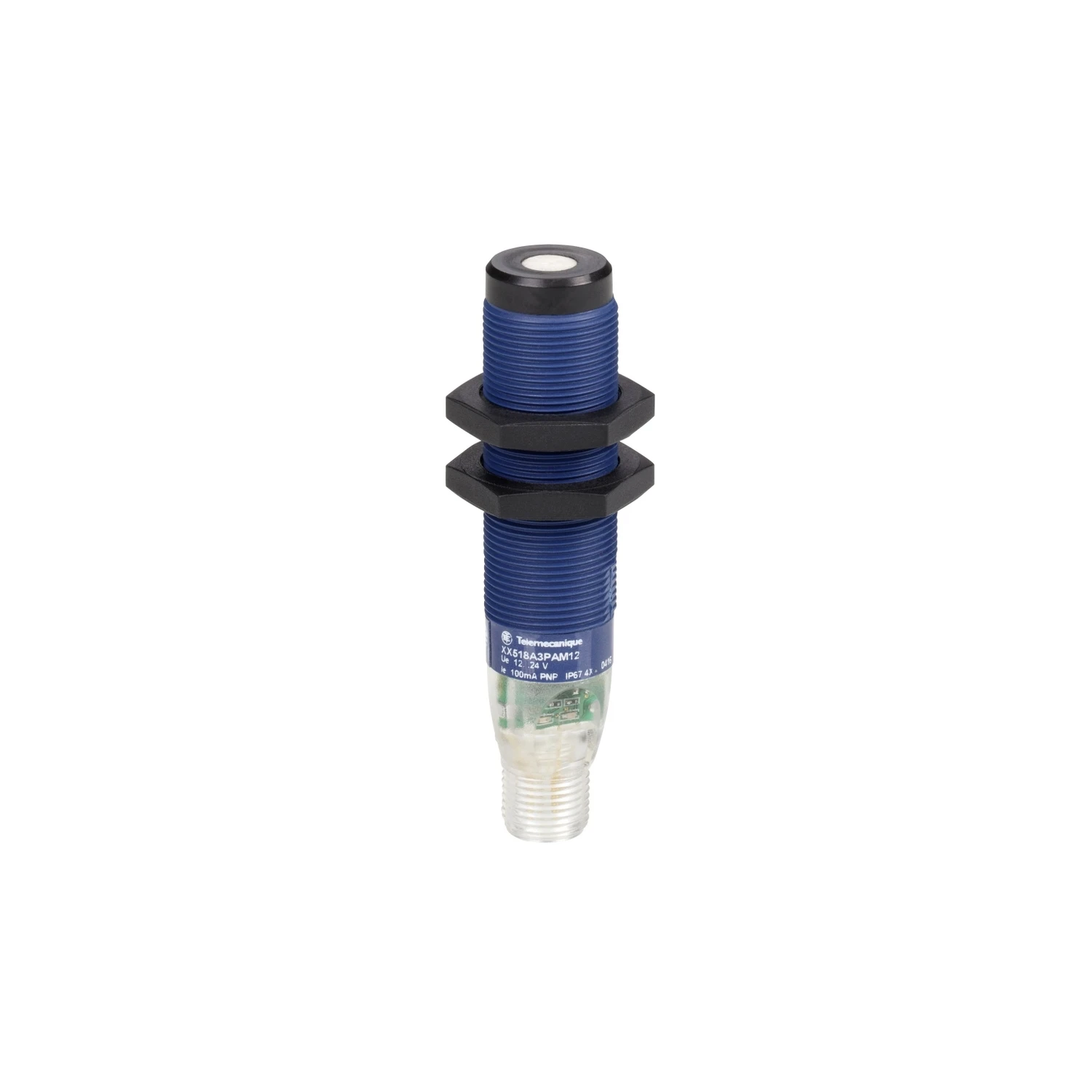

Ultrasonic sensor cylindrical M18, Sn 0,5m, 0..10 V, M12 connector
£241.21 Incl. VAT
This cylindrical ultrasonic sensor has a VALOX case. It has a supply voltage of 12V to 24V DC and an analog ouput of 0V to 10V. This cylindrical ultrasonic distance sensor with analogue output, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20°C) and hot environments (+65°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant. · · · This cylindrical ultrasonic sensor has a VALOX case. · · It has a supply voltage of 12V to 24V DC and an analog ouput of 0V to 10V. · · This cylindrical ultrasonic distance sensor with analogue output, is mountable directly on a surface or bracket, thanks to its cylindrical thread and 2 fixing nuts. · · VALOX® PBT high strength case makes it ideal for high temperature environments. · · Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. · · IP67 protection makes this product ready for the harshest environments. · · It can operate in very cold (-20°C) and hot environments (+65°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling. · · It is IEC 60947-5-2 compliant.
Out of stock
Description
Technical Specifications Technical Specifications Ultrasonic proximity switch Explosion safety category for dust None Explosion safety category for gas None Material active area of sensor Plastic Housing material Plastic Construction type housing Cylinder, screw-thread Type of analogy output 0 V … 10 V Degree of protection (IP rating) IP67 Voltage type DC Width sensor 18 mm Blind zone 51 mm AWG-number 0 Diameter sensor 18 mm Relative repeat accuracy 1.27 % No load current 40 mA Setting procedure Teach-In Type of electric connection Connector M12 Relative linearity deflection 0 % Length of sensor 77.6 mm Maximum output current 0 mA Switching frequency 0 Hz Height of sensor 0 mm Ambient temperature -20 – 65 °C Supply voltage 12 – 24 V Adjustable distance 51 – 508 mm Measuring range length 51 – 508 mm Synchronization possible No · Technical Data Sheet – Click to Download
