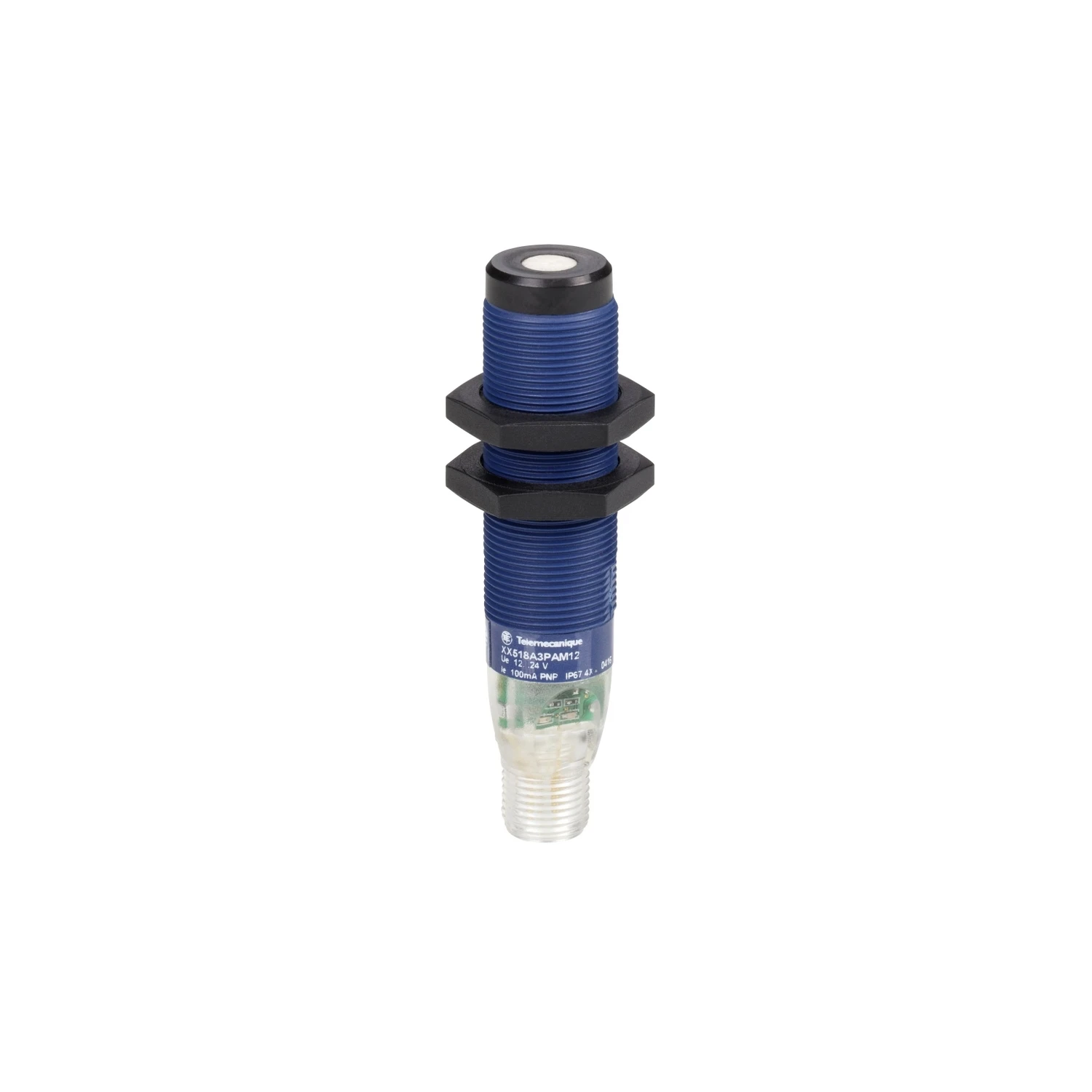

Telemecanique Sensors Ultrasonic Sensor Cylindricalm18 Sn 0.5m Nom12 Connector
Telemecanique Sensors Ultrasonic Sensor Cylindricalm18 Sn 0.5m Nom12 Connector
Telemecanique Sensors Ultrasonic Sensor Cylindricalm18 Sn 0.5m Nom12 Connector - Image 2
Telemecanique Sensors Ultrasonic Sensor Cylindricalm18 Sn 0.5m Nom12 Connector - Image 3
Telemecanique Sensors Ultrasonic Sensor Cylindricalm18 Sn 0.5m Nom12 Connector - Image 4

Telemecanique Sensors Ultrasonic Sensor Cylindricalm18 Sn 0.5m Nom12 Connector

£186.65 Incl. VAT

This cylindrical (diffuse system) ultrasonic sensor has a VALOX case. It has a supply voltage of 12V to 24V DC. This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. VALOX® PBT high strength case makes it ideal for high temperature environments. Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. IP67 protection makes this product ready for the harshest environments. It can operate in very cold (-20°C) and hot environments (+65°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is IEC 60947-5-2 compliant. · · · This cylindrical (diffuse system) ultrasonic sensor has a VALOX case. · · It has a supply voltage of 12V to 24V DC. · · This general purpose cylindrical ultrasonic sensor, is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. · · VALOX® PBT high strength case makes it ideal for high temperature environments. · · Multi-LED display allows to identify status of the sensor, to facilitate setup and troubleshooting. · · IP67 protection makes this product ready for the harshest environments. · · It can operate in very cold (-20°C) and hot environments (+65°C). · · It has a standard M12 connector, compatible with all existing market sensor cabling. · · It is IEC 60947-5-2 compliant.

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XX518A3PAM12 Categories: , , Brand: Product Code: 2500210419

Description

Technical Specifications  Technical Specifications Ultrasonic proximity switch Explosion safety category for dust None Explosion safety category for gas None Material active area of sensor Plastic Housing material Plastic Construction type housing Cylinder, screw-thread Degree of protection (IP rating) IP67 Type of electric connection Connector M12 Type of switching output PNP/PNP Type of switch function Normally open contact (NO) Setting procedure Teach-In Voltage type AC/DC Maximum output current 100 mA Diameter sensor 18 mm Width sensor 18 mm Switching frequency 40 Hz Height of sensor 18 mm Relative repeat accuracy 1.27 % No load current 40 mA AWG-number – Blind zone 51 mm Relative linearity deflection – % Length of sensor 77.6 mm Ambient temperature -20 – 65 °C Supply voltage 12 – 24 V Adjustable distance 51 – 508 mm Measuring range length 51 – 508 mm Synchronization possible No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188327
