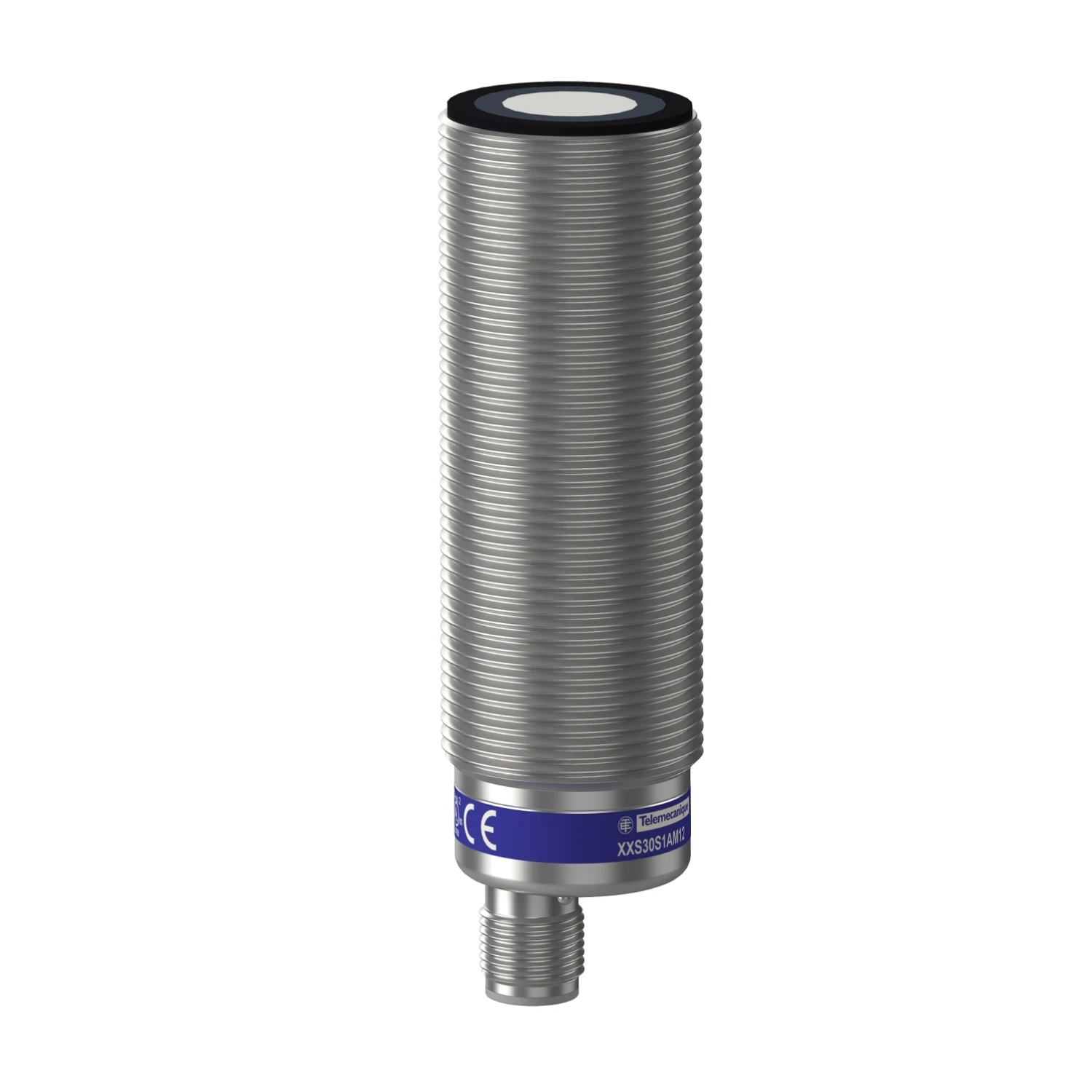

Ultrasonic Sensors Xx Ultrasonic Sensor Stainless Steel Cylindrical M30 Straight 1 M 4…20 Ma

This product is part of the XX range, an offer of ultrasonic sensors. This ultrasonic sensor in a cylindrical M30 design with diffuse detection system. It supports 1m nominal sensing distance and analogue output. It is an ultrasonic sensor with a rated supply voltage of 12V to 24V DC with reverse polarity protection, 10V to 30V DC and current consumption of 65mA. It is furnished with 5-pin M12 male connector for electrical connection. It is an IP65/IP67 rated product. The enclosure is made of 316L stainless steel with epoxy, rubber and resin front. Its dimensions are 30mm (width) x 102.15mm (depth) x 30mm (height). It weighs 0.17kg. This product is certified by CE, CULus, EAC, E2, Ecolab and RCM. It meets CSA C22.2 No 14, EN/IEC 60947 5 2 and UL 508 standards. XX Ultrasonic Sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. The XX ultrasonic sensors perform contactless, reliable and high performance detection regardless of the target’s shape, texture, color or transparency. · · · Sensor design Cylindrical M30 · · Type of output signal Analogue · · Wiring technique 5-wire · · Analogue output function 4…20 mA
