Under Voltage Release MN 220-240V AC 50/60Hz
£173.48 Incl. VAT

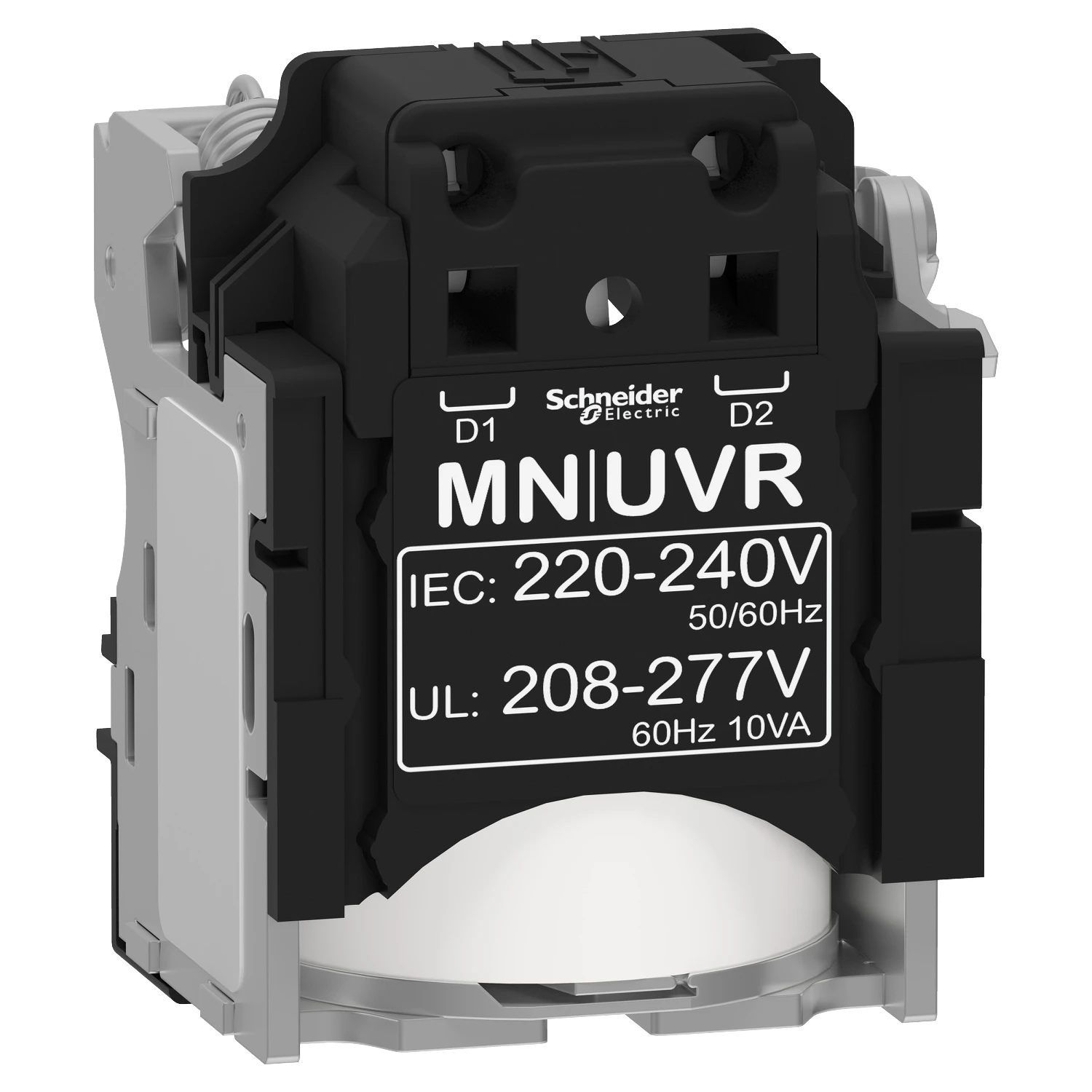

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary. · · · This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. · · Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. · · It is an auxiliary used for emergency off or remote opening applications. · · This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. · · It complies with IEC 60947-2 standard. · · This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. · · Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Out of stock
Description
Technical Specifications Technical Specifications Under voltage coil Number of contacts as normally closed contact 0 Number of contacts as change-over contact 0 Number of contacts as normally open contact 0 Rated control supply voltage at DC – – – V Rated control supply voltage at AC 60 Hz 220 – 240 V Rated control supply voltage at AC 50 Hz 220 – 240 V Suitable for power circuit breaker Yes Delayed No Suitable for overload relay No Suitable for motor safety switch Yes Suitable for off-load switch Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205398
