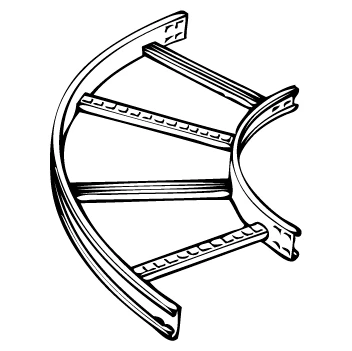

Unistrut 750mm U10 Steel Hot Dipped Galvanised Flat 90° Bend For Cable Ladder

Description

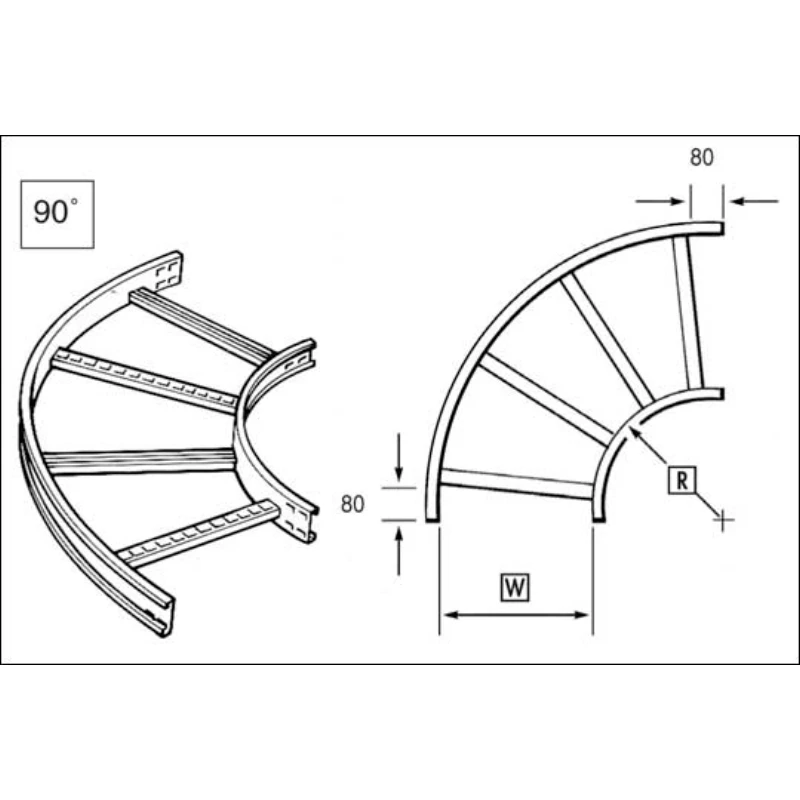

Technical Specifications  Technical Specifications Bend for cable ladder Material Steel Type of side wall Channel (open) Bend model Smooth bend Colour Zinc Surface protection Hot dip galvanized Change of direction Horizontal Angle 90° Model Coupler not included Type of rung Slotted channel Suitable for cable ladder height 100 mm Suitable for cable ladder width 750 mm Inner radius 300 mm Side wall perforation Yes Suitable for circuit integrity Yes Hinged No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
