Unistrut B Cable Tray Medium Duty 75mm Pregalvanised Steel Length 3m
Unistrut B Cable Tray Medium Duty 75mm Pregalvanised Steel Length 3m
Unistrut B Cable Tray Medium Duty 75mm Pregalvanised Steel Length 3m - Image 2
Unistrut B Cable Tray Medium Duty 75mm Pregalvanised Steel Length 3m - Image 3

Unistrut B Cable Tray Medium Duty 75mm Pregalvanised Steel Length 3m

£17.39 Incl. VAT

Cable tray length made up of a solid steel body complete with a galvanised surface finish designed to enable passage for cables to travel down whilst providing protection and eliminating health and safety risks. · · · 3M length · · Rim releases suitable for rim night latches · · Rim releases suitable for rim night latches · · Suits latches with 12mm maximum throw · · When cut to smaller lengths on site, connection to the next tray requires a fish plate · · Adequate ventilation · · Profile Height: 25 mm · · Unit Weight: 3.1 kg

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TUMLT075/10PG Categories: , , Brand: Product Code: 2500074108

Description

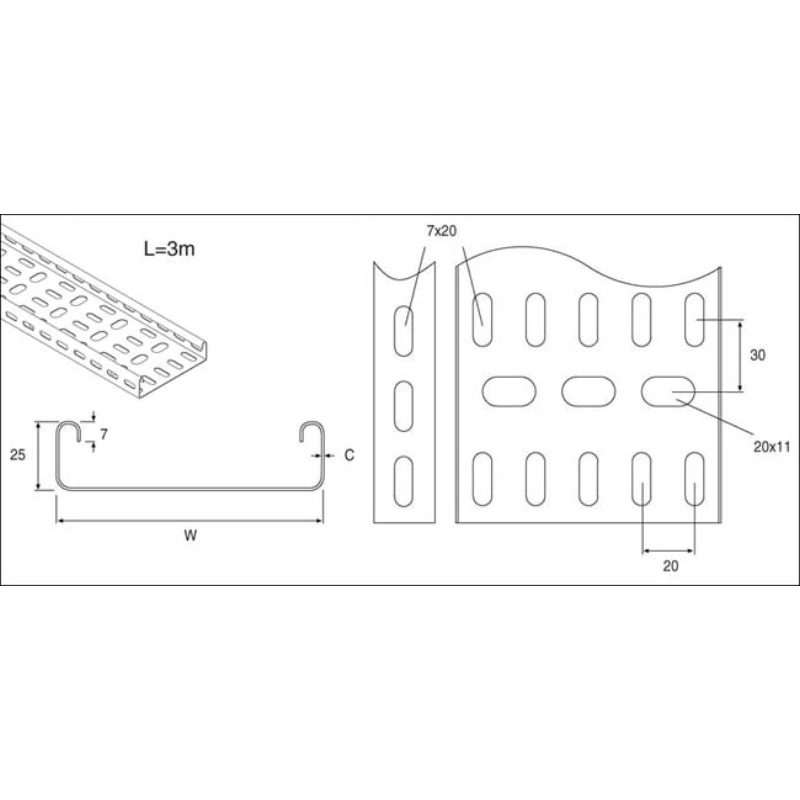

Technical Specifications  Technical Specifications Cable tray Material Steel Colour Zinc Surface protection Pre-galvanised Model Coupler not included Width 75 mm Useful cross section 1740 mm² Material thickness 0.8 mm Length 3000 mm Height 25 mm With cover No Mounting perforation in base Yes Side wall perforation Yes Suitable for circuit integrity Yes · Technical Data Sheet – Click to Download
