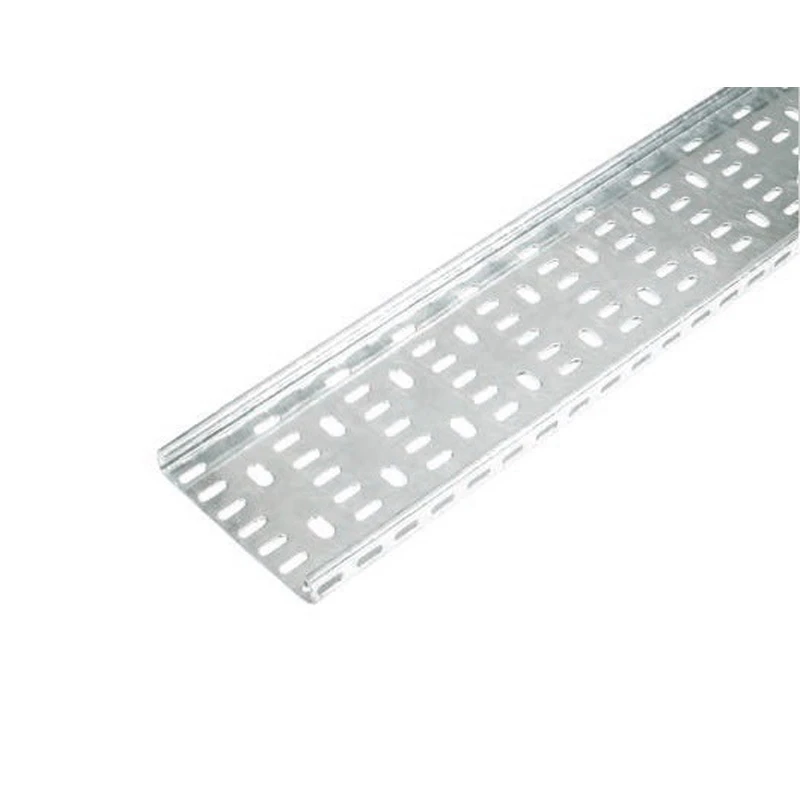

Unistrut Tray Cable Medium Duty Return Flange 150 x 25mm x 3m Steel Hot Dipped Galvanised
£41.62 Incl. VAT
Unistrut Multipurpose Cable Tray is made of hot-dip galvanised steel. It is robust enough to meet a wide variety of applications but light enough to handle and install with ease and complete with wide range of accessories and fixings to suit. Available in 3m length. Suitable for commercial buildings, including office blocks, shopping centres and super markets, hospitals, data centres, correction facilities, infrastructure such as airports, road and rail tunnels, automotive industry, petrochemical, food and beverage and general industrial applications. · · · Medium duty · · UK traditional slot pattern · · European standard graded material · · Meets BS EN 10111 – DD11 or BS EN 10139 – DC01 standard · · Compatible with Unistrut fittings only
Description
Technical Specifications Technical Specifications Cable tray Colour Zinc Material Steel Surface protection Hot dip galvanized Model Coupler not included Material thickness 0.8 mm Width 150 mm Length 3000 mm Useful cross section 3560 mm² Height 25 mm Mounting perforation in base Yes Side wall perforation Yes With cover No Suitable for circuit integrity Yes
