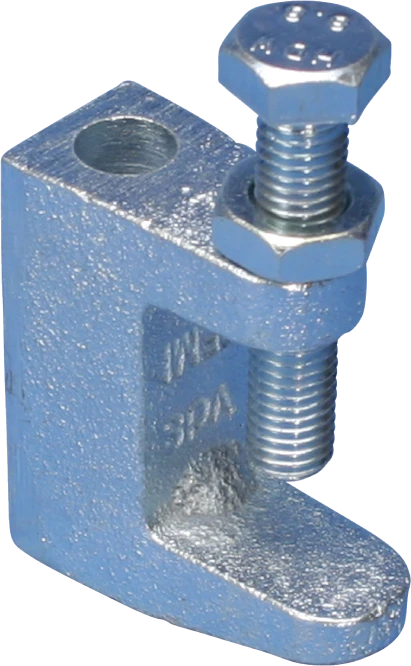

nVent CADDY Universal Beam Clamp, Thick Flange, 10 mm Hole, Threaded

Reversible beam clamp for use with wide flange widths. Electrogalvanized, M10 rod, 31.8 mm max flange. · · · Universal beam clamp for thick beams · · Material: Cast Iron · · Finish: Electrogalvanized · · Hole Size (HS): 10 mm · · Hole Type: Threaded · · Flange Thickness (FT): 31.8 mm Max · · A: 28.6 mm · · Torque (TQ): 7 N·m · · Static Load 1 (F1): 2200 N · · Static Load 2 (F2): 1100 N
