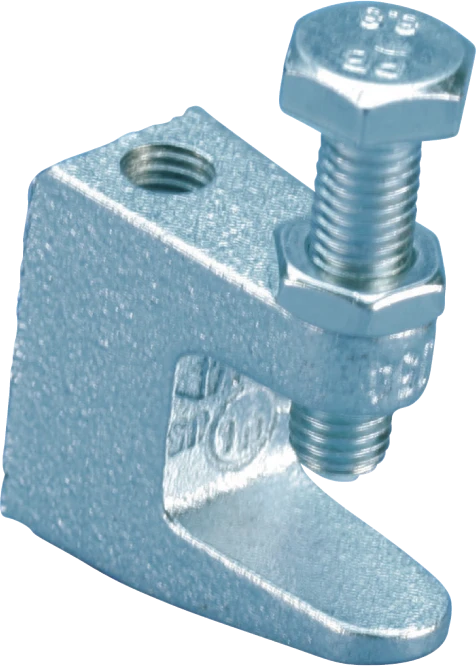

nVent CADDY Universal Beam Clamp, Threaded, 8 mm Hole, 18 mm Max Flange

Reversible beam clamp for use with standard flange widths. Electrogalvanized, M8 rod, 18 mm max flange. · · · Universal beam clamp for standard beams · · Including set screw and lock nut · · Structural attachment (with infinite adjustment) to top or bottom flange of metal beams to support hanger rod · · Material: Cast Iron · · Finish: Electrogalvanized · · Hole Type: Threaded · · Hole Size (HS): 8 mm · · Flange Thickness (FT): 18 mm Max · · A: 21 mm · · Torque (TQ): 14 N·m
