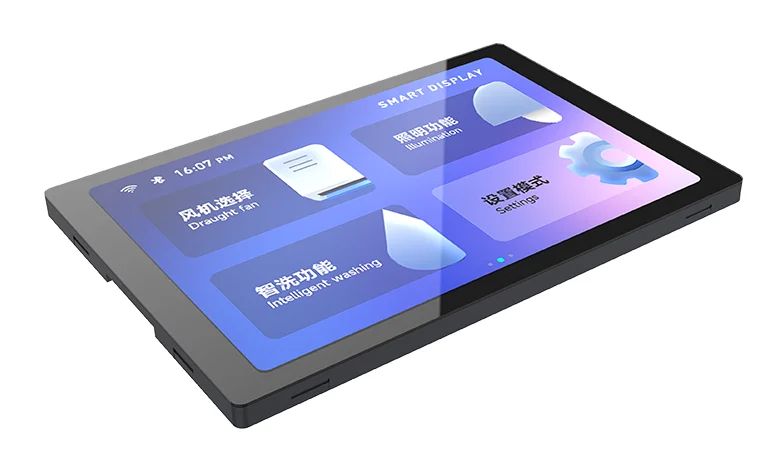

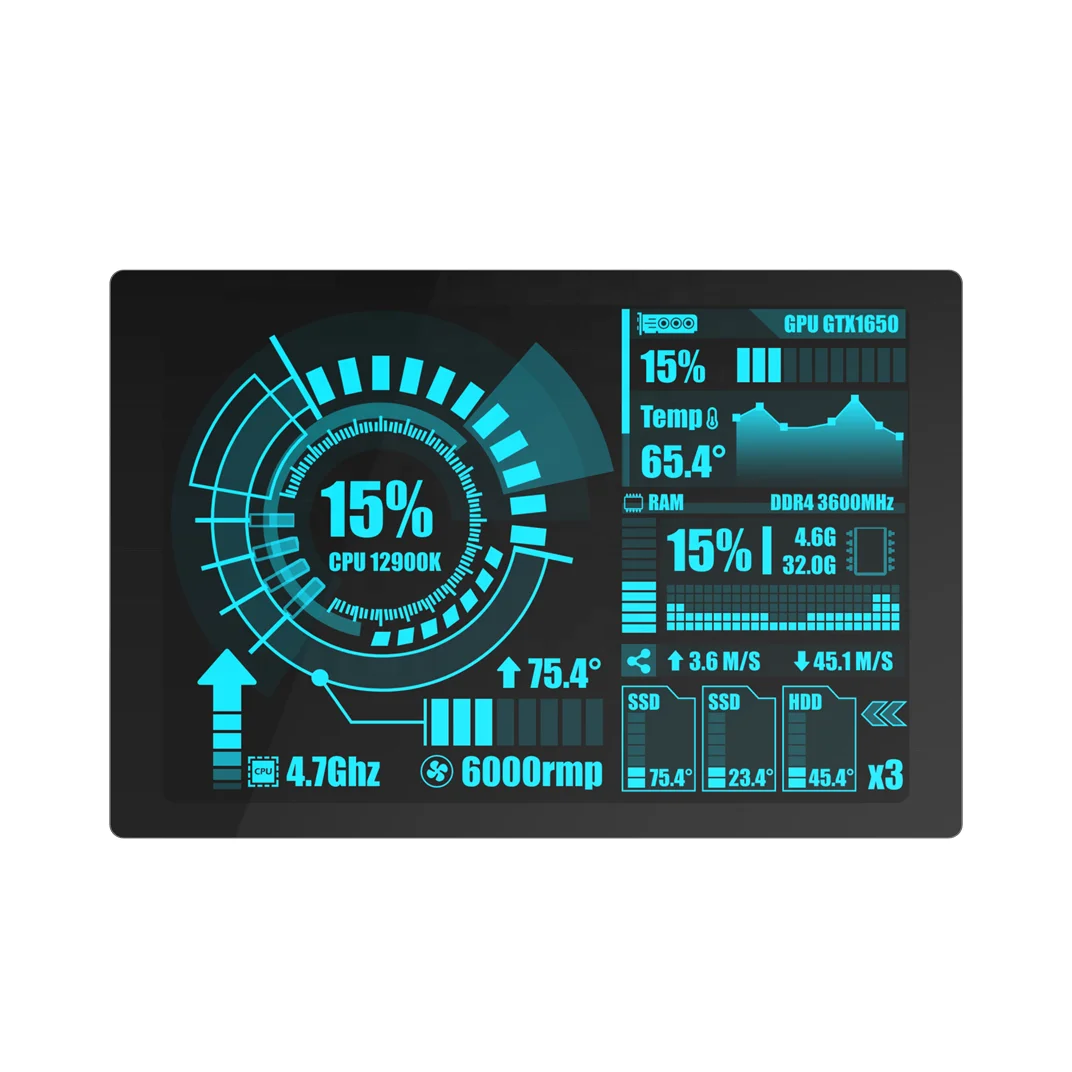

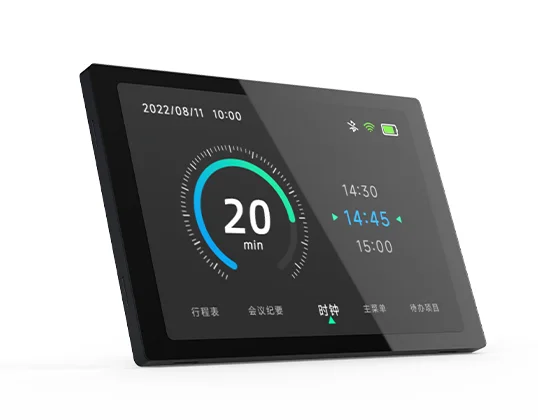

Upgrade WT32-SC01 Plus 16MB Esp32 Lcd Hmi Lcd Board Esp32 Development Board with 3.5 LCD IPS Display Touch Screen

Description

Product description

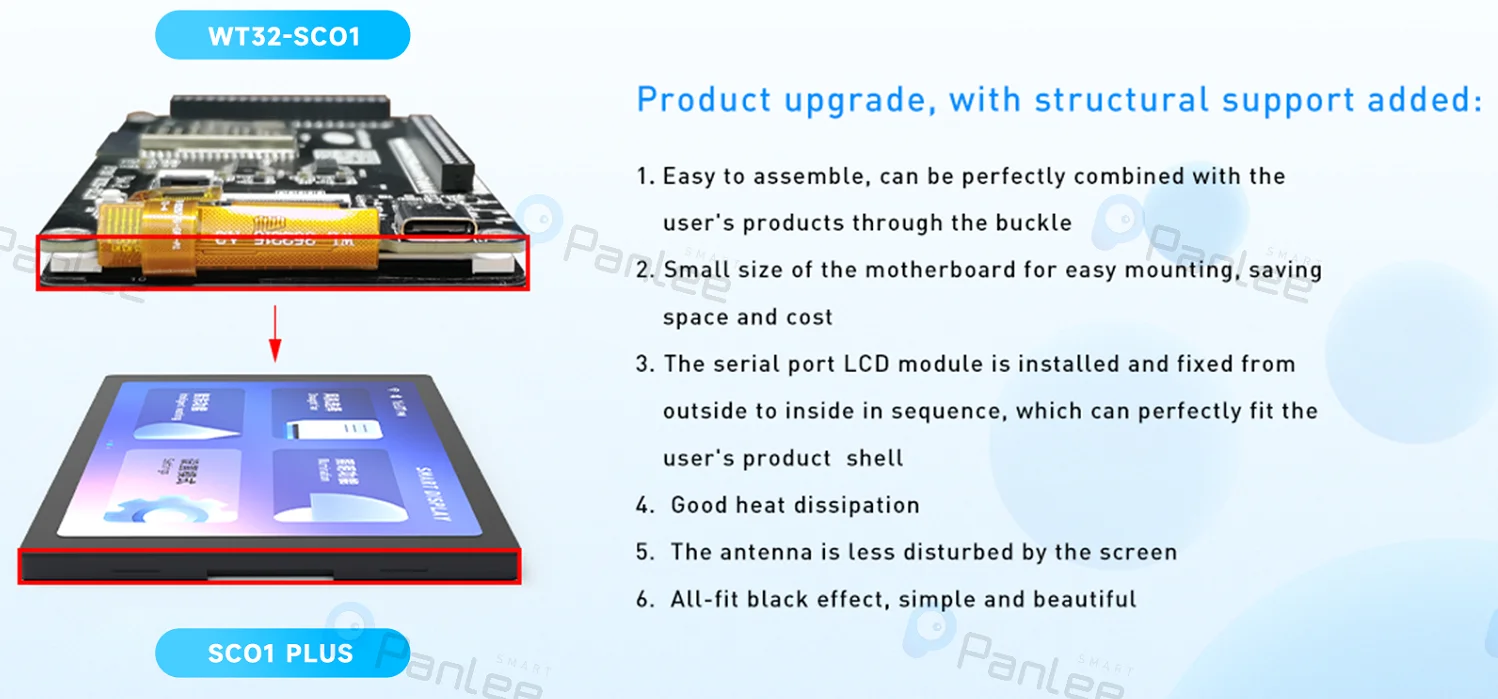

Upgrade WT32-SC01 plus 16MB IOT devices WT32-S3-WROVER module with 3.5 LCD IPS Display Touch Screen 320*480 all-fit black screen Product Description Brief Introduction: 1.WT32-SC01 Plus is a development board for visual touch screen, the board is equipped with GUI platform firmware developed independently, support graphic drag and drop programming to help users complete the development of customized control platform. 2. The main controller of WT32-SC01 Plus development board adopts WT32-S3-WROVER-N16R2 module, this module is a general-purpose WiFi + BT + BLE MCU module, 16MB SPI flash and 2MB PSRAM are configured in. 3. WT32-SC01 Plus development board can also develop and debug functions such as buttons, voice and camera through the expansion interfaces on both sides, greatly shorten the development cycle of users. Product Parameters 1.Specification Details Product Type Development board Product Model WT32-SC01 Plus CPU Dual core xtensa 32 bit LX6 MCU Chip ESP32-DOWD WIFI 2.4GHz WiFi 802.11 B / g / N protocol Bluetooth V4.2 BR/EDR/BLE standard Display 3.5 inch, LCD screen, two touch Resolition 480*320 Power DC 5V 2A OperatingTemperature -20°C~70°C Interface TP/LCM/Speaker/RST/Type-C/UART Clock frequency 80 ~ 240 MHz Antenna PCB board Dimension 92mm*60mm*10.8mm 2. PCB Dimension Comparison 3. Structure Comparison >> Send me inquiry for price, packing, shipping, sample, OEM & ODM service details! Detail Image Product Application Why Choose Us
