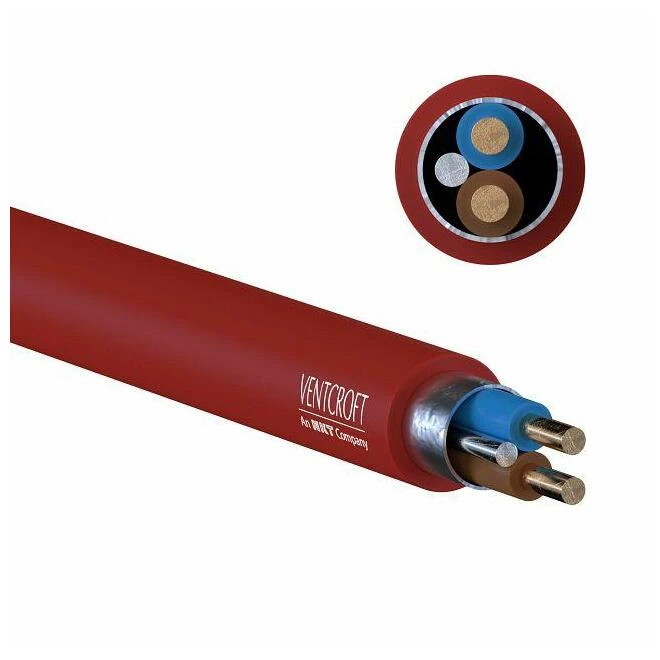

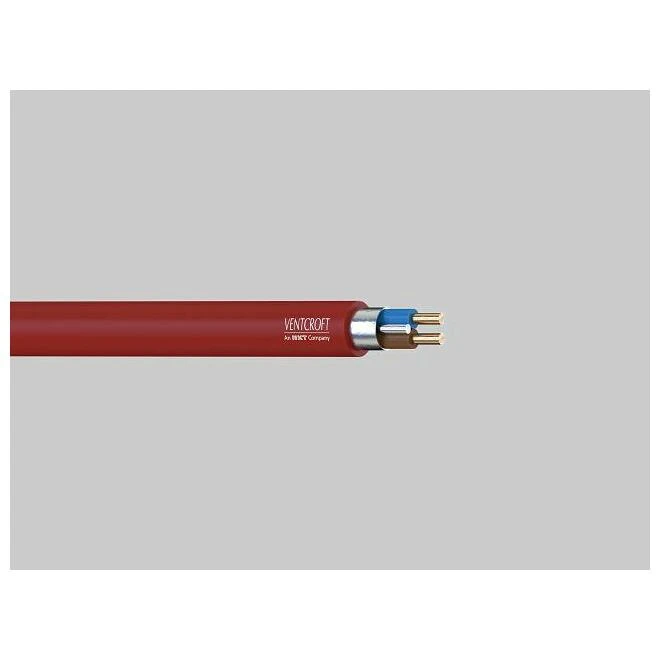

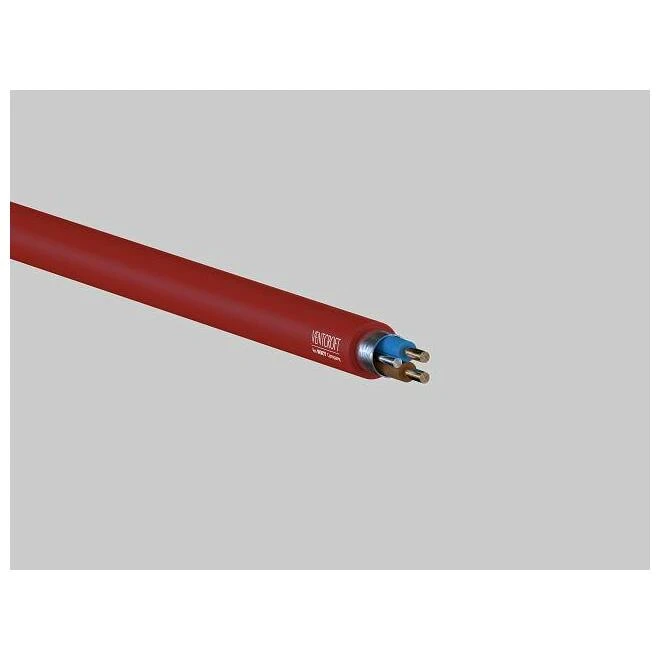

Ventcroft VFP-225ERD FP Cable 2 Core & Earth Fire Resistant Standard 100m Reel 2.5mm Red
£321.54 Incl. VAT
NOBURN Platinum Standard 60 fire performance cable is certified by LPCB & BASEC to fully meet the requirements of BS 7629-1 and BS 5839 Clause 26.2d Code of Practice for Standard 60 fire cables used with UK fire alarm, emergency lighting and voice evacuation systems. NOBURNS’s all in one sheath and unique EZE-PREP© insulation makes it the fastest soft skin fire cable to strip and terminate · · · Easy to Install and Superb Working Flexibility · · No Need to Remove Insulation to Terminate · · Fastest Fire Cable to Prepare for Termination · · Red, White, & Black – outer sheaths available · · Choice of 1.0 mm2 ,1.5 mm2 , 2.5 mm2 or 4.0 mm2 Conductors all with same full size CPC (Earth) · · Aluminium / Co-polymer Foil Screen · · Up to 12 twists per metre for data protection · · Ideal for long cable runs and analogue addressable fire system. · · Operating temperature: -40°C to +90°C
800 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Conductor category Class 1 = solid Conductor material Copper Reaction-to-fire according to EN 13501-6: Class Fca Core colour Red Nominal voltage U 500 V Sheath colour Red Number of cores 2 Nominal cross sectional area of conductor 2.5 mm² · Technical Data Sheet – Click to Download
