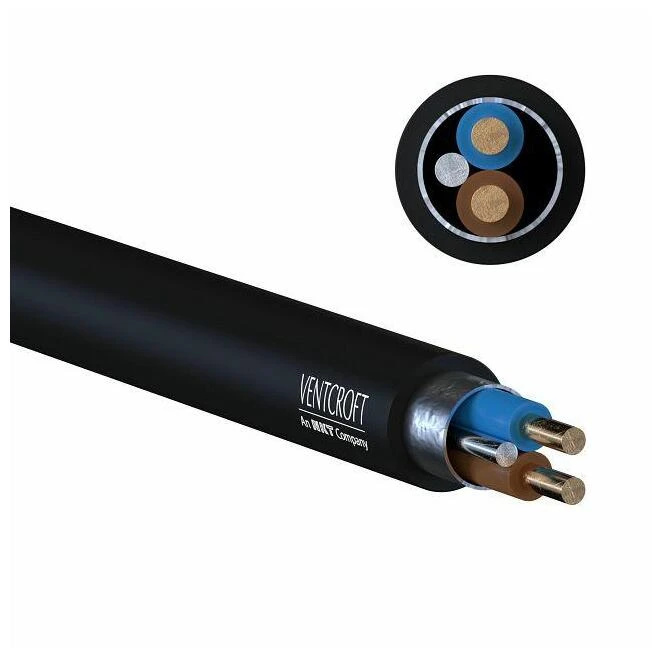

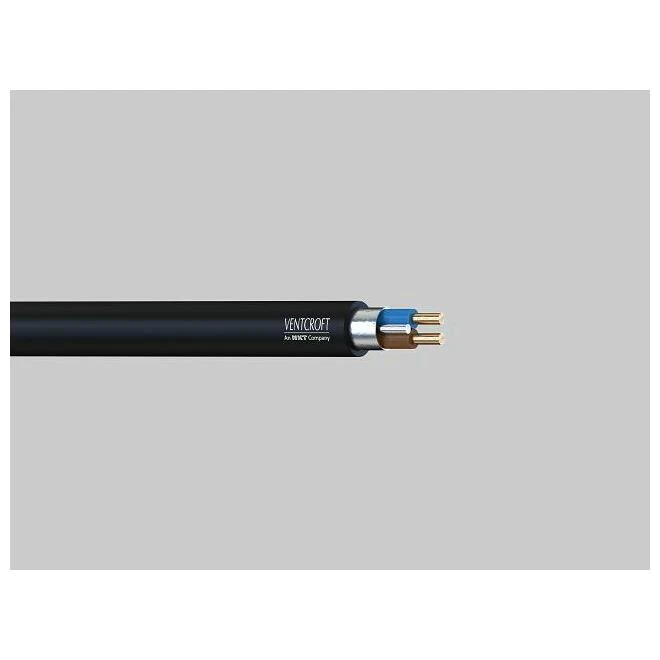

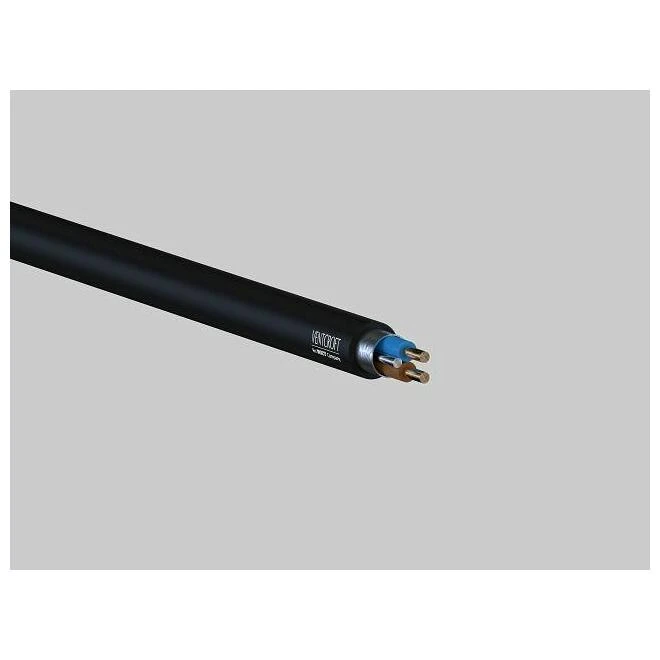

VFP NOBURN 2.5mm² Black Fire Performance Soft Skin Standard Cable 2-Core
£321.54 Incl. VAT
NOBURN Platinum Standard 60 fire performance cable is certified by LPCB & BASEC to fully meet the requirements of BS 7629-1 and BS 5839 Clause 26.2d Code of Practice for Standard 60 fire cables used with UK fire alarm, emergency lighting and voice evacuation systems. NOBURNS’s all in one sheath and unique EZE-PREP© insulation makes it the fastest soft skin fire cable to strip and terminate. · · · Easy to Install and Superb Working Flexibility · · No Need to Remove Insulation to Terminate · · Fastest Fire Cable to Prepare for Termination · · Red, White, & Black – outer sheaths available · · Choice of 1.0 mm2 ,1.5 mm2 , 2.5 mm2 or 4.0 mm2 Conductors all with same full size CPC (Earth) · · Aluminium / Co-polymer Foil Screen · · Up to 12 twists per metre for data protection · · Ideal for long cable runs and analogue addressable fire system. · · BASEC & LPCB Approved & Certified · · Operating temperature: -40°C to +90°C
1100 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Reaction-to-fire according to EN 13501-6: Class B2ca Conductor category Class 1 = solid Core colour Black Conductor material Copper Sheath colour Black Core insulation material Polyvinyl chloride (PVC) Number of cores 2 Nominal cross sectional area of conductor 2.5 mm² Nominal voltage U 500 V Outer diameter approx. 9.2 mm · Technical Data Sheet – Click to Download
