VI13800 Voltage Indicator

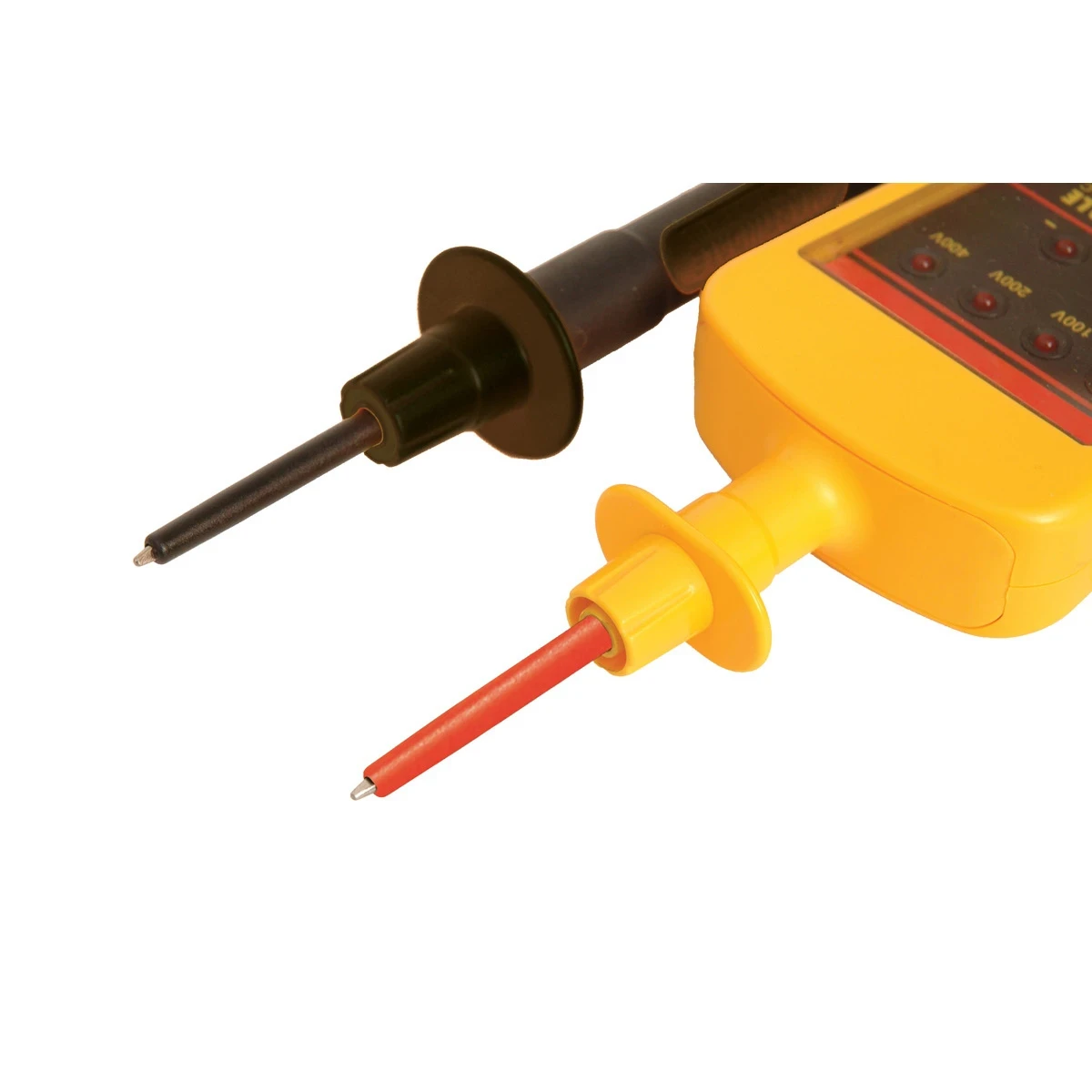

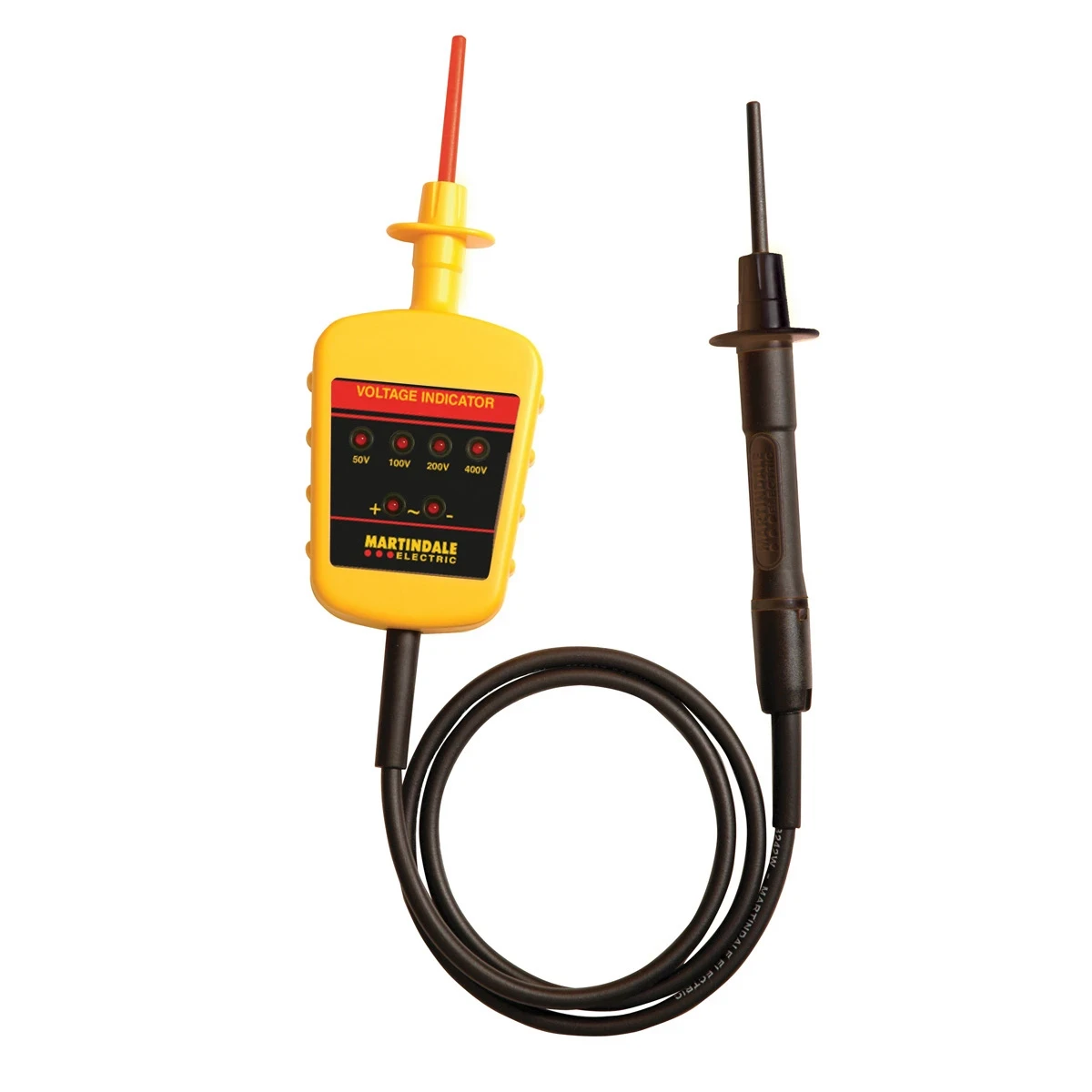

VI13800 is a Voltage Indicator, provides instant visual AC and DC voltage indication in four stages from 50 to 400V. The bright long-life LED indicators give clear and immediate display of the voltage level range. It has retractable probes, heavy duty finger guards and a two-layer double insulated cable with a white inner core to give clear indication of damage that might compromise the user’s safety. The latest design complies with the new standard relating to 2 pole voltage indicators, BS EN61243-3 and the requirements of GS38 Edition 4 2015. The latest version of BS EN61243-3:2010 came fully in to force in May 2013 and all voltage indicators on the British & European market should comply. The VI13800 replaces the industry standard VI13700. The new design includes a high wattage resistor instead of a fuse that will limit the current in the event of damage to the cable in accordance with BS EN61243-3. · · · Conforms to BS EN 61326-1 · · IP54 IP rating · · Pollution degree 2 · · Class II, double insulation · · Up to 2000m altitude · · Nominal voltage threshold tolerance: < 85% of marked threshold indication · · Automatic range detection · · < 0.1s Response time · · Automatic AC/DC voltage detection · · <85% Nominal voltage threshold tolerance
