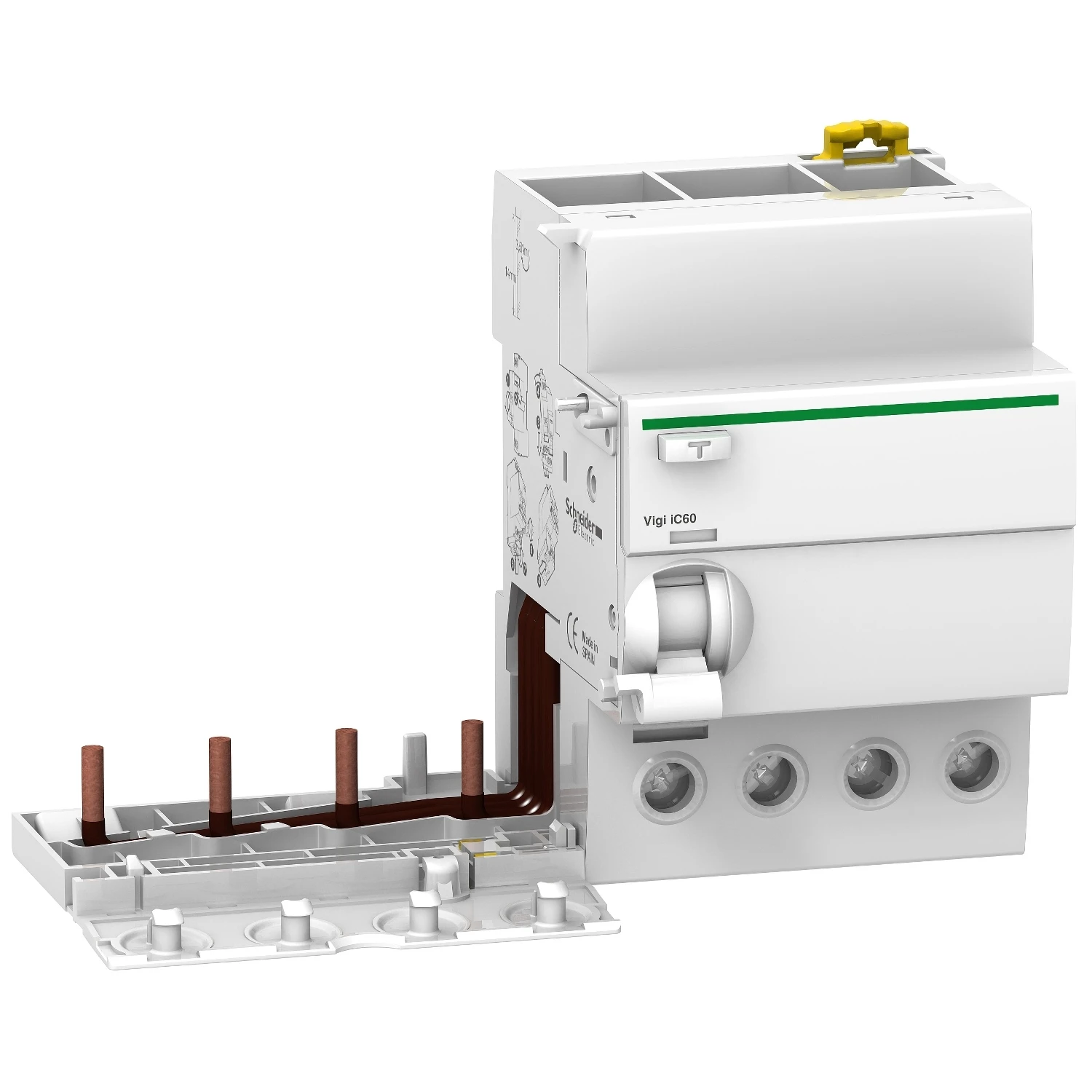

Schneider Electric VIGI IC60 4P 63A 300MA -S A ADD-ON RESID

SKU: A9V25463Go Magpie ID: 5060062343470

Vigi iC60 – earth leakage add-on block – 4P – 63A – 300mA – A type – selective · · · This Acti9 Vigi iC60 is a modular add-on residual current devices. · · It is a 4P, rated current is 63A, operating voltage is 400VAC to 415VAC according to IEC 61009-1. · · The earth leakage protection class is A type with a sensitivity of 300mA and a voltage independent technology. · · This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. · · A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face.

£356.10inc VAT£296.75 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Residual current circuit breaker (RCCB) module Pollution degree 3.00 Surge current capacity 3.00 kA Rated insulation voltage Ui 500.00 V Max. delay time 130.00 ms Number of poles 4.00 Rated impulse-withstand voltage (Uimp) 6.00 kV Nominal current 63.00 A Nominal voltage 400.00 – 415.00 V Rated fault current 0.30 – 0.30 A Connectable conductor cross section solid-core 1.00 – 35.00 mm² Connectable conductor cross section multi-wired 1.00 – 25.00 mm² Ambient temperature during operating 25.00 – 60.00 °C Anti-nuisance tripping version No With interlocking device No Delay adjustable No Rated fault current adjustable No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2190551
