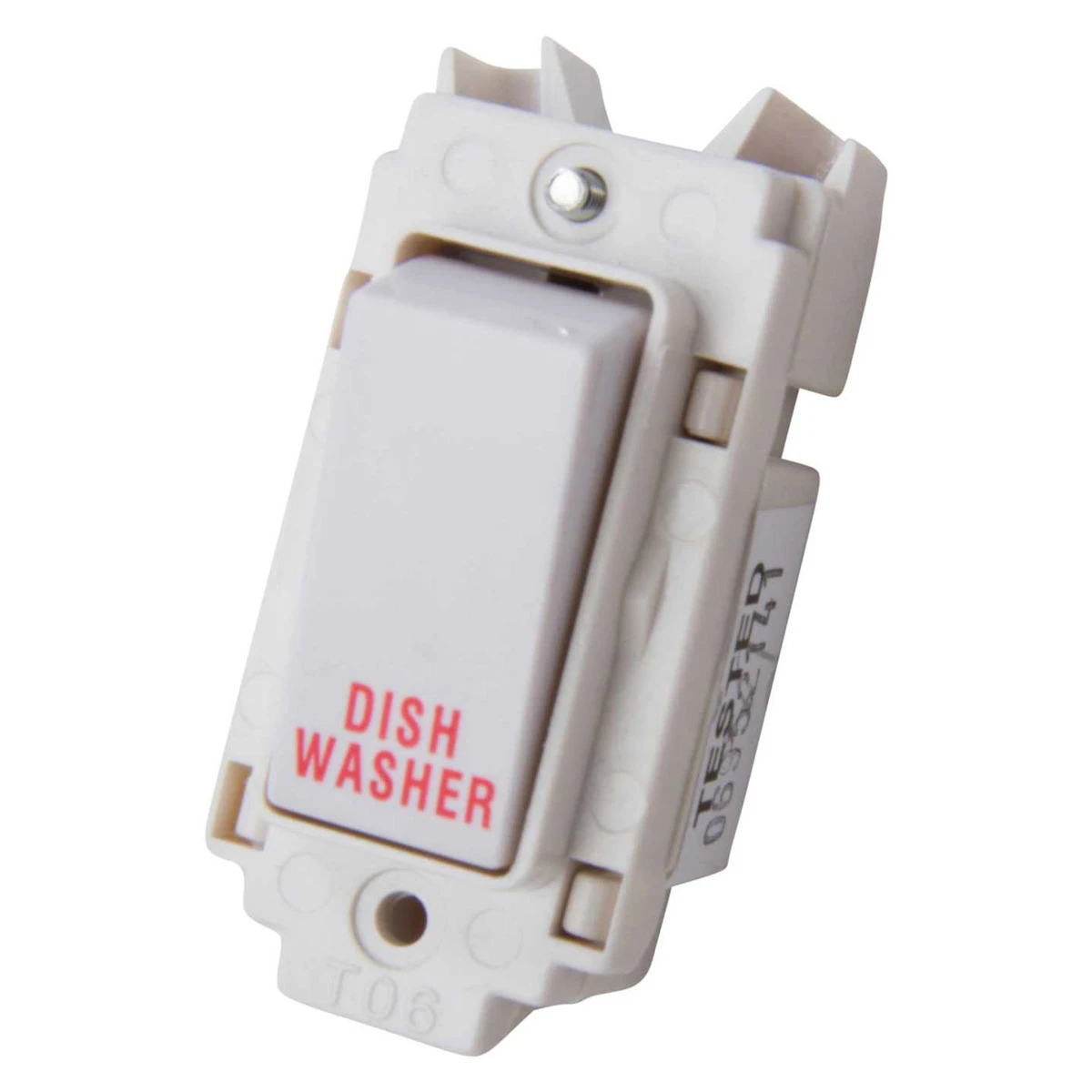

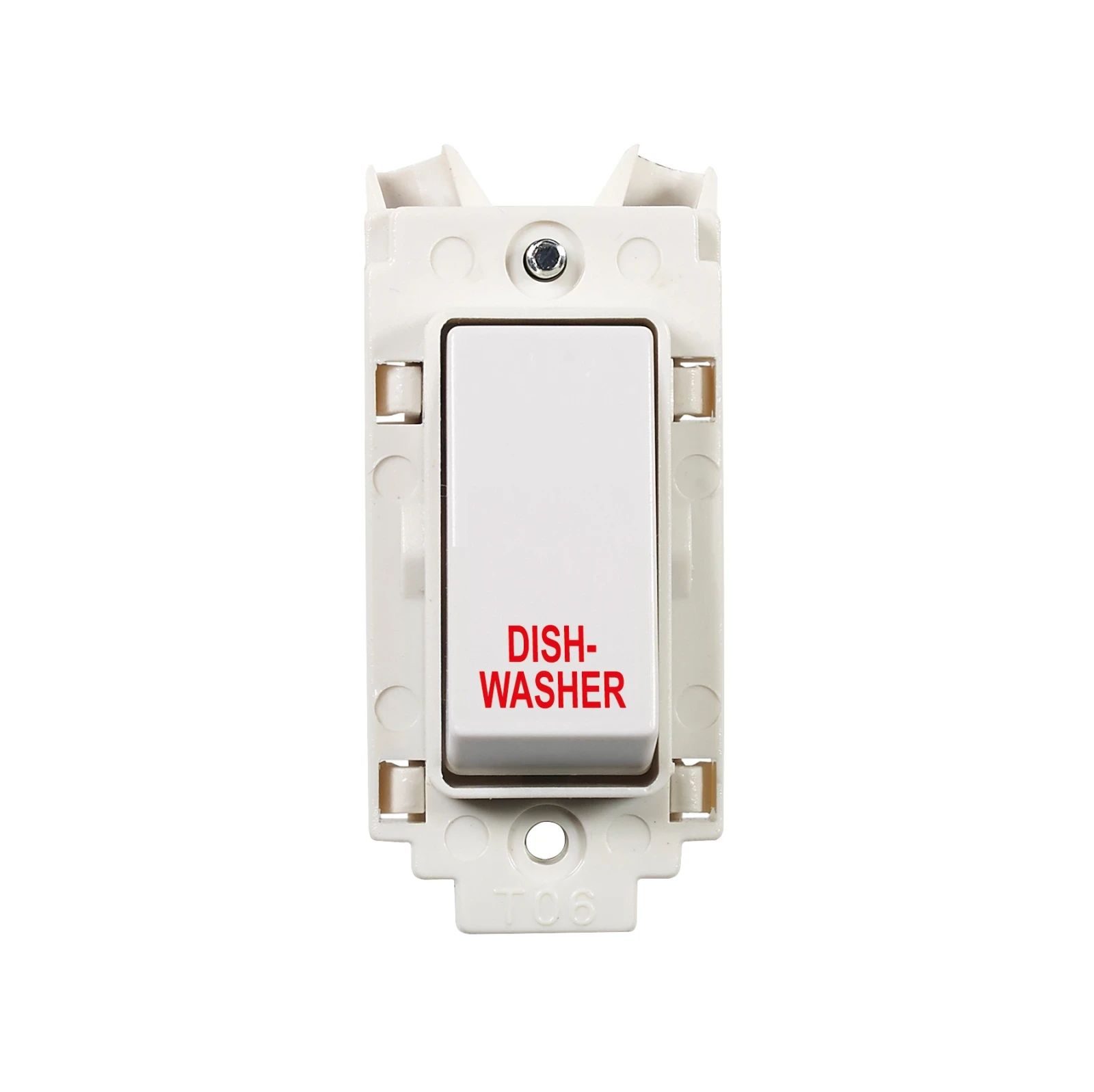

Volex 20A Double Pole Grid Switch Module Printed ‘Dishwasher’

£3.18 Incl. VAT

This switch has silver alloy contacts for prolonged life and low contact resistance and are designed to minimise arc flash and prevent front access to live parts. · · · Double Pole Switching · · Full Rated to 20A

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: VG3460DW Categories: , , Brand: Product Code: 2500106140

Description

Technical Specifications  Technical Specifications Switch Nominal voltage 250 V Number of module spaces (modular system) 1 Recess depth 20.5 mm Rated current 20 A Number of rockers/gangs 1 Minimum depth of back box 25 mm Width of device 25 mm Height of device 55.5 mm Washing machine switch No Depth of device 31 mm Push button switch Yes Feedback-signal contact No Halogen free Yes With mounting plate No · Technical Data Sheet – Click to Download
