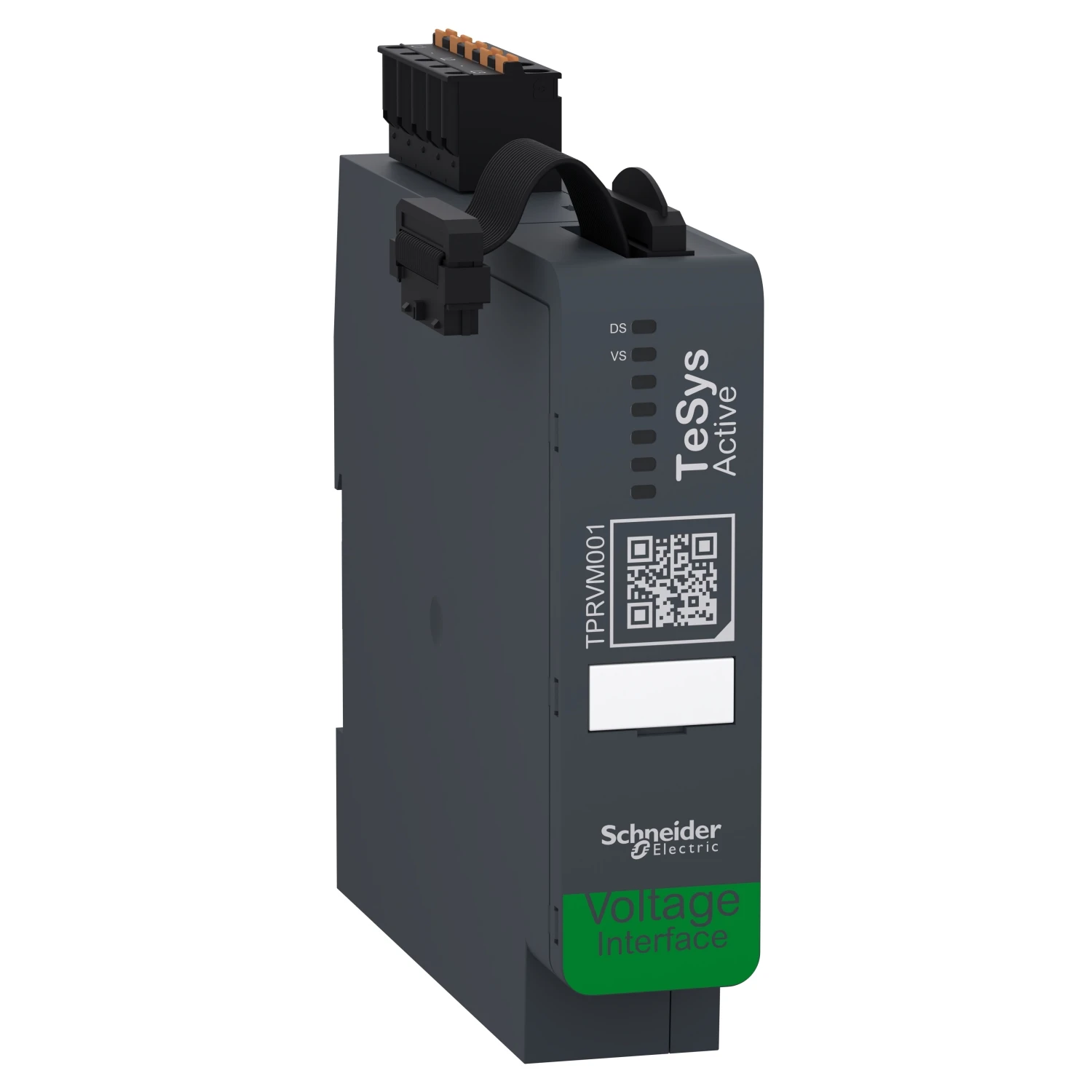

Voltage Interface Module TeSys island
Voltage Interface Module TeSys island
Voltage Interface Module TeSys island - Image 2
Voltage Interface Module TeSys island - Image 3
Voltage Interface Module TeSys island - Image 4

Voltage Interface Module TeSys island

£209.76 Incl. VAT

TeSys island voltage interface module, 100-690V / 47-63Hz. Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys island voltage interface module, 100-690V / 47-63Hz. · · Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. · · It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. · · Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TPRVM001 Categories: , , Brand: Part Number: 2501393219

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – analogue I/O module Height 118 mm Depth 114 mm Width 25 mm Number of HW-interfaces industrial Ethernet 0 Number of HW-interfaces RS-232 0 Number of HW-interfaces RS-422 0 Number of analogue outputs 0 Number of analogue inputs 3 Number of HW-interfaces PROFINET 0 Number of HW-interfaces serial TTY 0 Resolution of the analogue outputs – Bit Number of HW-interfaces USB 0 Resolution of the analogue inputs 13 Bit Number of HW-interfaces Wireless 0 Number of HW-interfaces other 2 Number of HW-interfaces parallel 0 Number of HW-interfaces RS-485 0 Supply voltage AC 60 Hz – – – V Supporting protocol for ASI No Supporting protocol for PROFIBUS No Supporting protocol for LON No Supporting protocol for TCP/IP No Suitable for safety functions No Supply voltage DC 20.4 – 28.8 V Supply voltage AC 50 Hz – – – V Supporting protocol for CAN No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for MODBUS No Supporting protocol for KNX No Supporting protocol for INTERBUS No Input, resistance thermometer No Input, resistor No Input, voltage Yes Appendant operation agent (Ex ib) No Appendant operation agent (Ex ia) No Front built-in possible No Rack-assembly possible No Input, current No Fieldbus connection over separate bus coupler possible Yes Rail mounting possible Yes System accessory Yes Supporting protocol for Foundation Fieldbus No Supporting protocol for DeviceNet Safety No Supporting protocol for EtherNet/IP No IO link master No Supporting protocol for AS-Interface Safety at Work No Radio standard GSM No Radio standard GPRS No Supporting protocol for PROFINET CBA No Supporting protocol for INTERBUS-Safety No Radio standard Bluetooth No Radio standard WLAN 802.11 No Supporting protocol for SUCONET No Supporting protocol for PROFINET IO No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Supporting protocol for SERCOS No Radio standard UMTS No Analogue inputs configurable No Input, thermocouple No Supporting protocol for other bus systems Yes Output signal configurable No Output, voltage No Output, current No Input signal, configurable No Analogue outputs configurable No Wall mounting/direct mounting No · Technical Data Sheet – Click to Download
