Voltage Release Impulse Maintained 220-240V AC 50/60Hz
Voltage Release Impulse Maintained 220-240V AC 50/60Hz

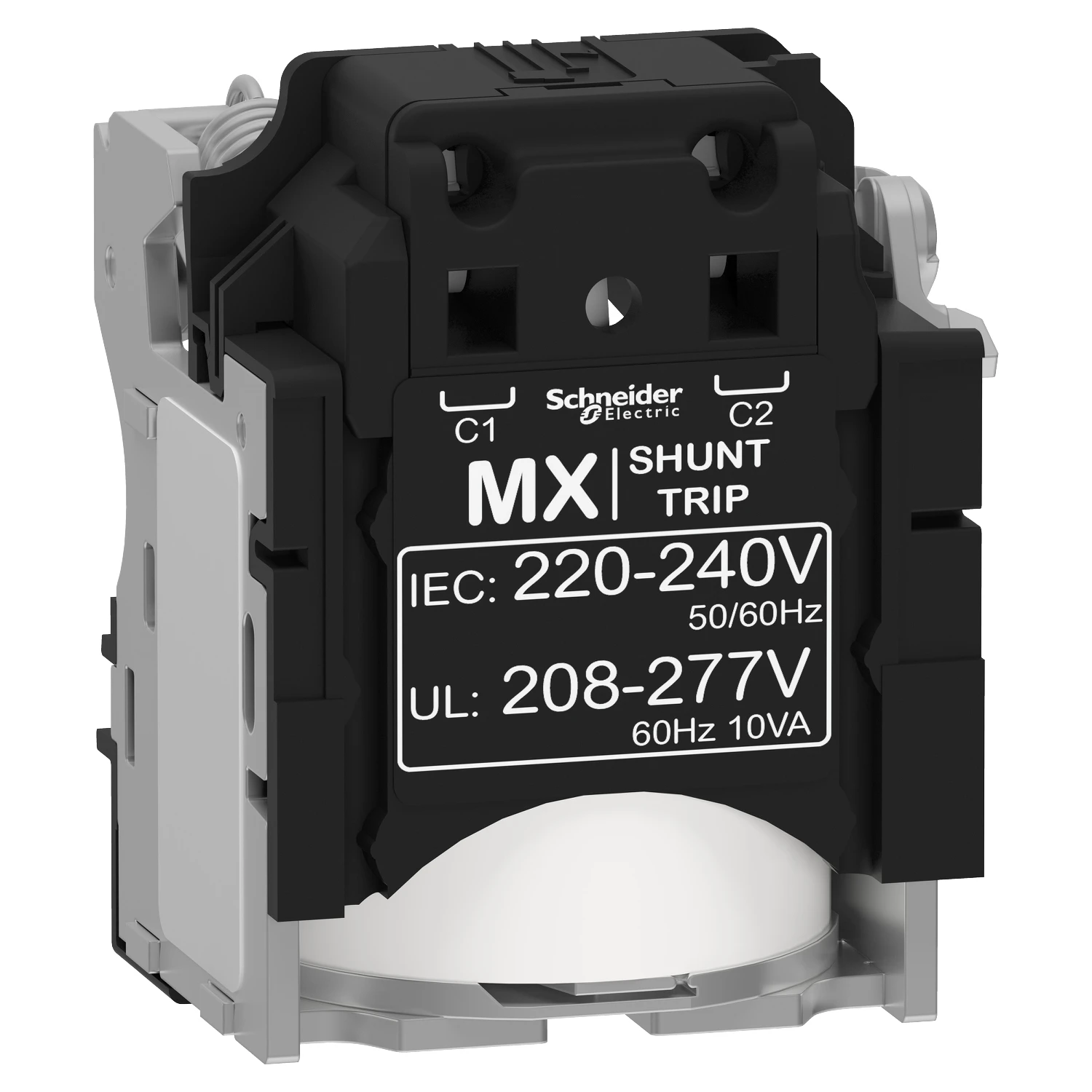

Voltage Release Impulse Maintained 220-240V AC 50/60Hz - Image 2
Voltage Release Impulse Maintained 220-240V AC 50/60Hz - Image 3

Voltage Release Impulse Maintained 220-240V AC 50/60Hz

£112.46 Incl. VAT

This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary. · · · This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. · · Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. · · It is an auxiliary used for emergency off or remote opening applications. · · This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. · · It complies with IEC 60947-2 standard. · · This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. · · Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

10 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LV429387 Categories: , , Brand: Part Number: 2500300134

Description

Technical Specifications  Technical Specifications Shunt release (for power circuit breaker) Number of contacts as normally closed contact 0 Number of contacts as normally open contact 0 Number of contacts as change-over contact 0 End value adjustment range undelayed short-circuit release – A Rated control supply voltage at DC – – – V Initial value of the undelayed short-circuit release – setting range – A Rated control supply voltage at AC 50 Hz 220 – 240 V Rated control supply voltage at AC 60 Hz 220 – 240 V Suitable for motor safety switch No Suitable for power circuit breaker Yes Suitable for off-load switch Yes Suitable for overload relay No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205398
