Circuit Breakers & Devices

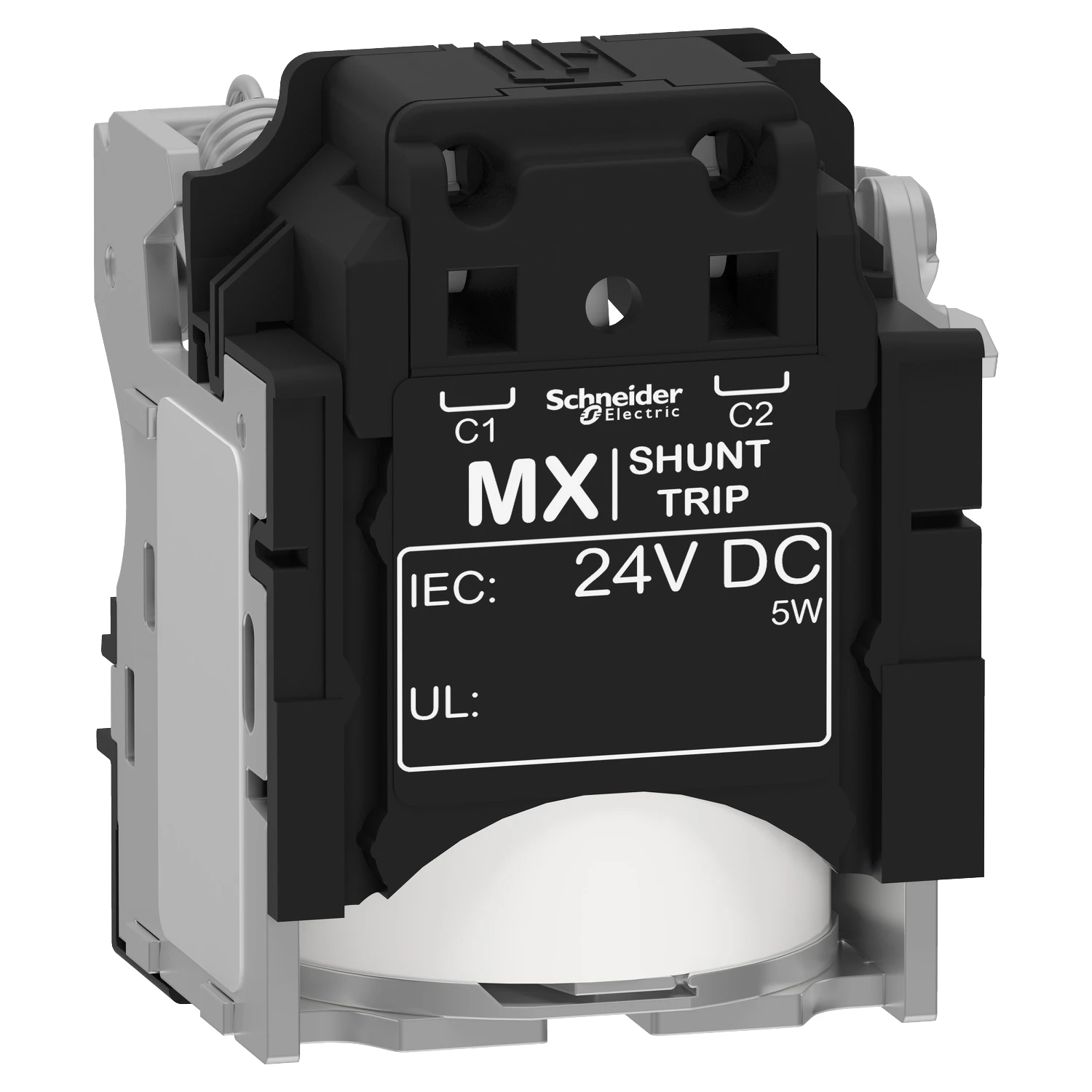

Schneider Electric Voltage Release Shunt Trip MX 24V DC

SKU: LV429390Go Magpie ID: 5060062355316

This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 24 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary. · · · This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. · · Its rated voltage is 24 VDC. · · It is an auxiliary used for emergency off or remote opening applications. · · This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. · · It complies with IEC 60947-2 standard. · · This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. · · Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.

£101.24inc VAT£84.37 ex VAT
In stock
UK deliveryDelivery options and final cost are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Shunt release (for power circuit breaker) Number of contacts as change-over contact 0 Number of contacts as normally open contact 0 Number of contacts as normally closed contact 0 End value adjustment range undelayed short-circuit release – A Initial value of the undelayed short-circuit release – setting range – A Rated control supply voltage at AC 50 Hz – – – V Rated control supply voltage at AC 60 Hz – – – V Suitable for motor safety switch No Rated control supply voltage at DC 24 – 24 V Suitable for off-load switch Yes Suitable for overload relay No Suitable for power circuit breaker Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205398
