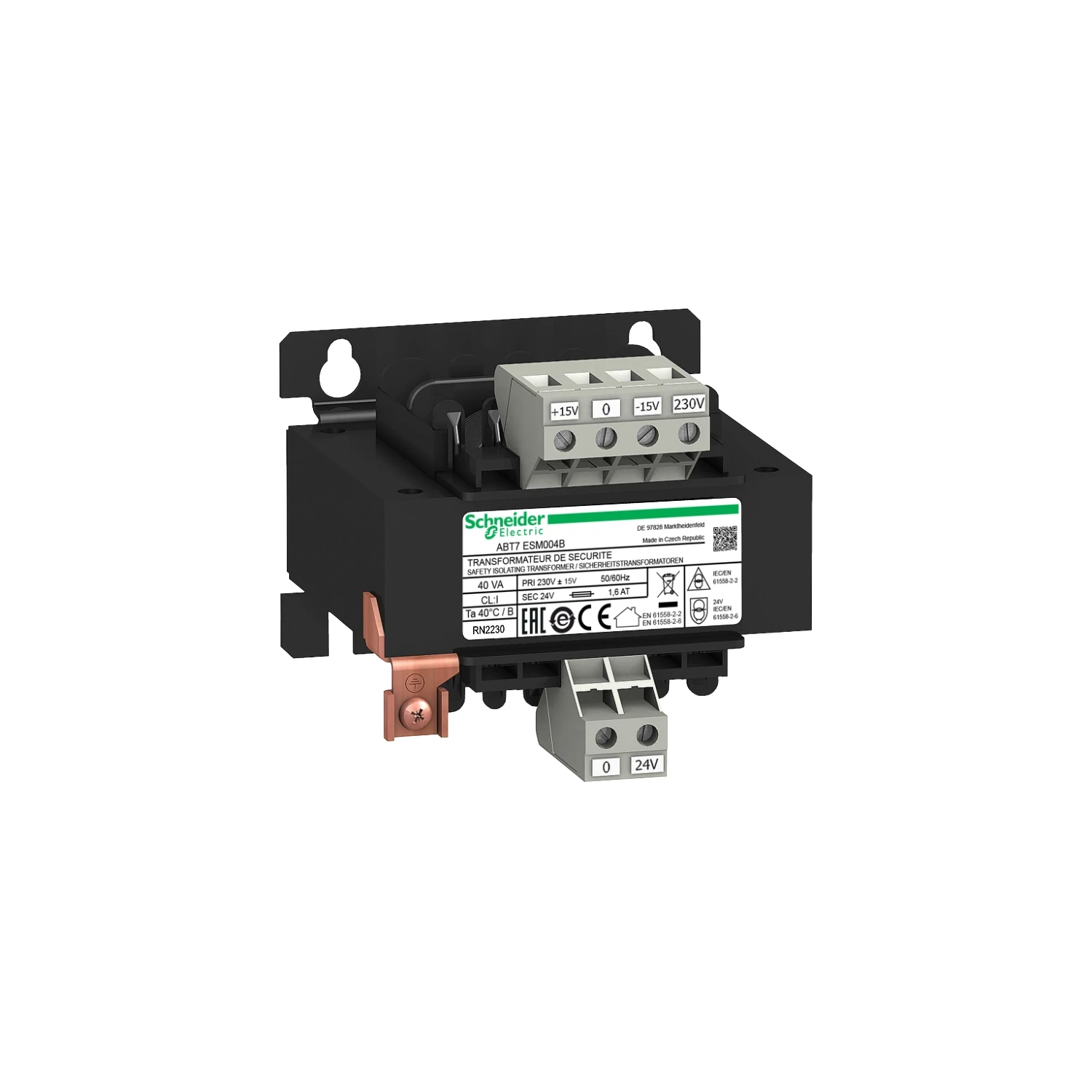

Voltage Transformer 230V 1x24V 40VA
Voltage Transformer 230V 1x24V 40VA
Voltage Transformer 230V 1x24V 40VA - Image 2
Voltage Transformer 230V 1x24V 40VA - Image 3

Voltage Transformer 230V 1x24V 40VA

£58.68 Incl. VAT

This ABT7 transformer supplies alternating current to control circuits while isolating them from mains power. It has a rated input voltage of 230V AC, a rated output voltage of 24V AC and a rated power of 40VA. It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining motor control centers (MCC). It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors. · · · This ABT7 transformer supplies alternating current to control circuits while isolating them from mains power. · · It has a rated input voltage of 230V AC, a rated output voltage of 24V AC and a rated power of 40VA. · · It offers an economic way to supply each consuming load individually, or by groups of loads, in applications such as mining, refining motor control centers (MCC). · · It is ideal for systems accepting low voltage AC power, such as motor protection relays, contactors. · · Weight: 3.06g · · Depth: 18mm

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ABT7ESM004B Categories: , , Brand: Part Number: 2500244354

Description

Technical Specifications  Technical Specifications One-phase control transformer Depth 70.00 mm Height 90.00 mm Width 79.00 mm Relative short circuit voltage 16.00 % Rated apparent power 40.00 VA Primary voltage 3 – – – V Primary voltage 4 – – – V Primary voltage 1 230.00 – 230.00 V Primary voltage 5 – – – V Primary voltage 6 – – – V Secondary voltage 4 – – – V Secondary voltage 6 – – – V Secondary voltage 5 – – – V Secondary voltage 3 – – – V Primary voltage 10 – – – V Primary voltage 9 – – – V Primary voltage 8 – – – V Primary voltage 7 – – – V Secondary voltage 7 – – – V Secondary voltage 10 – – – V Secondary voltage 1 24.00 – 24.00 V Secondary voltage 8 – – – V Secondary voltage 9 – – – V Modular version No Built as energy saving transformer No Suitable for mounting on PCB No Ring core No Built as isolating transformer Yes Built as safety transformer Yes Short-circuit-proof No · Technical Data Sheet – Click to Download
