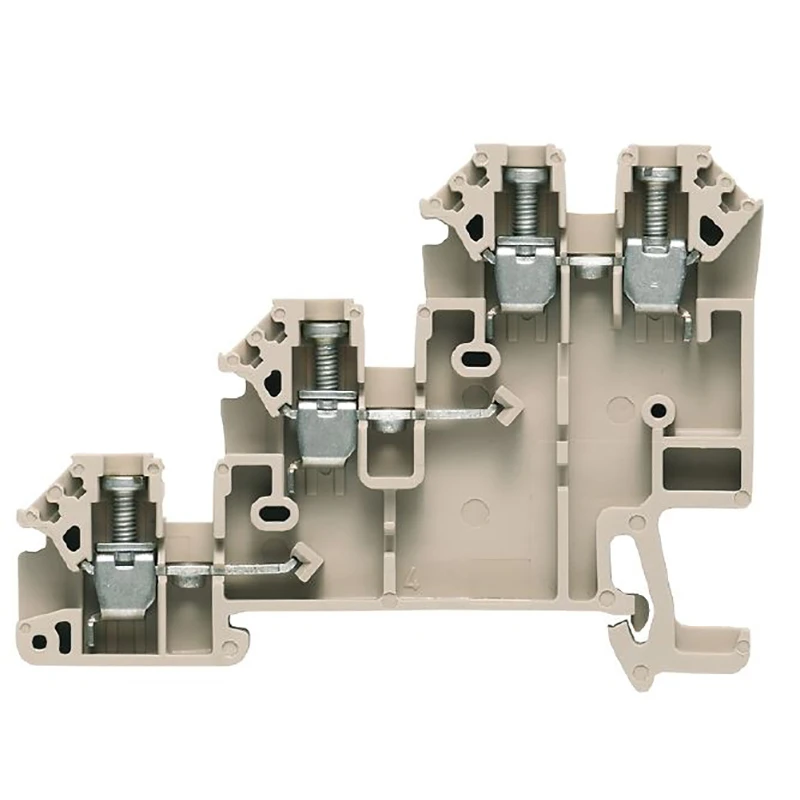

W-Series 2.5mm² 3-Tier Fuse Terminal Block 26A 250V 26-12AWG Dark Beige
W-Series 2.5mm² 3-Tier Fuse Terminal Block 26A 250V 26-12AWG Dark Beige
W-Series 2.5mm² 3-Tier Fuse Terminal Block 26A 250V 26-12AWG Dark Beige - Image 2
W-Series 2.5mm² 3-Tier Fuse Terminal Block 26A 250V 26-12AWG Dark Beige - Image 3

W-Series 2.5mm² 3-Tier Fuse Terminal Block 26A 250V 26-12AWG Dark Beige

£3.23 Incl. VAT

TeSys Deca contactor, 4-pole (4NO), for non-inductive load applications up to 125A/1000V AC-1. It provides a 240V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · Rated current: 26A · · Rated voltage: 250V · · Screw connection · · Snap-on mounting · · Compact (96mm width), DIN-rail mounting or screw fixing. · · Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). · · Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · IP Rating: IP2X · · Normal State Configuration: 4NO · · CE: yes

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1783820000 Categories: , , Brand: Part Number: 2500268798

Description

Technical Specifications  Technical Specifications Sensor/actuator terminal block Type of electrical connection 1 Plug-in connection Material insulation body Thermoplastic Type of electrical connection 2 Plug-in connection Inflammability class of insulation material acc. with UL94 V0 LED switching for No Connection position Above Colour Beige Rated voltage 250 V Length 66 mm Height at lowest possible mounting height 49 mm Width/grid dimension 6 mm Rated current In 24 A Connectable conductor cross section multi-wired 1.5 – 4 mm² Connectable conductor cross section solid-core 0.5 – 4 mm² Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 4 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.5 – 2.5 mm² Operating temperature -50 – 120 °C Number of clamp positions per level 2 Number of levels 1 Closing plate required Yes Explosion-tested version ‘Ex e’ No With PE connection No With shield connection No With power supply function No Disconnect function No Cross connectable Yes Internally connected stages No · Technical Data Sheet – Click to Download
