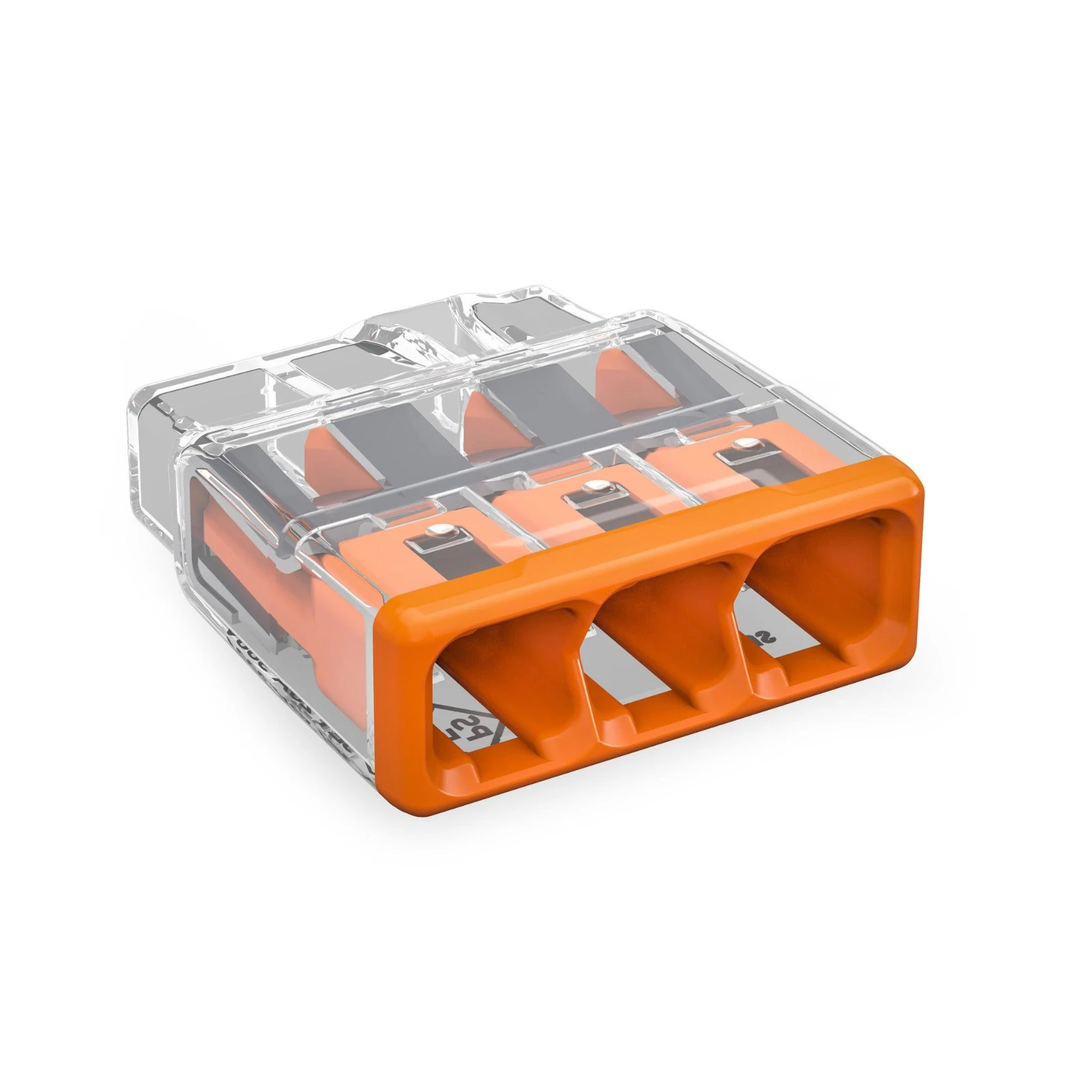

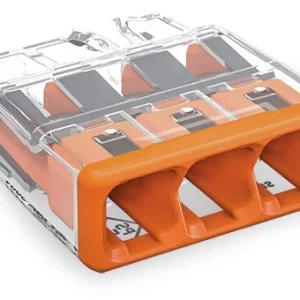

Wago Push Wire Push-In Connectors

Pack of 100

£22.08 Incl. VAT

Connectors with push-in cage clamp. These connectors are suitable for junction boxes. · · · Convenient wiring via extremely compact design,50% faster than screws · · Push-in termination of up to eight solid and stranded conductors · · Conductor range: 0.75 … 4 mm² “s“ and 1.5 … 4 mm² “st“ · · Any combination of conductor sizes is possible · · PUSH WIRE® connection terminates solid (“s+str”) copper conductors

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2773-403 Categories: , , , , , Brand: Product Code: 2501283958

Description

Technical Specifications  Technical Specifications Push in terminal Colour Colourless Nominal voltage 450 V Nominal current 32 A Cable diameter 1.6 – 2 mm Conductor cross section solid (solid, stranded) 0.75 – 4 mm² Transparent Yes Suitable for flexible core No Suitable for multi-wire core Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
