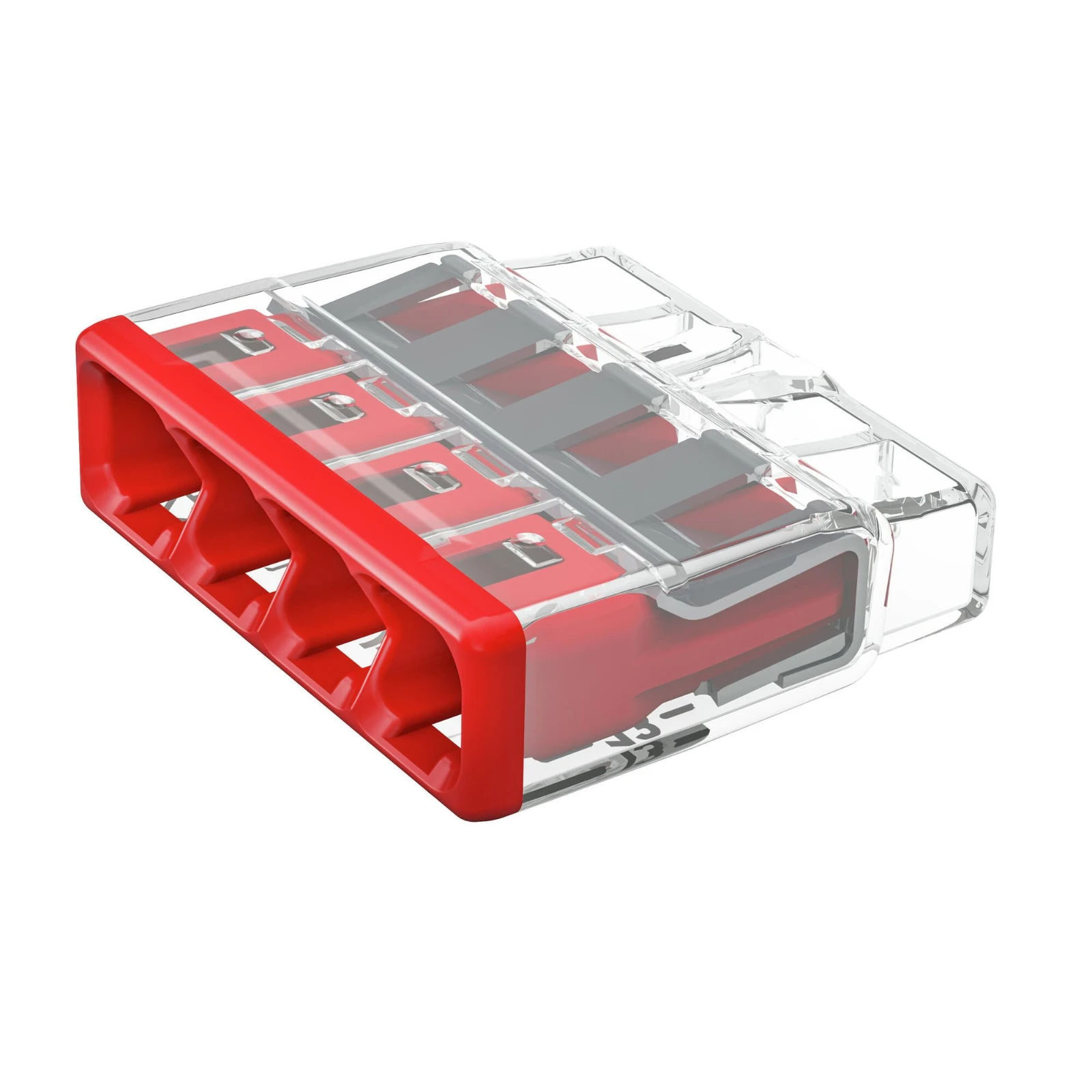

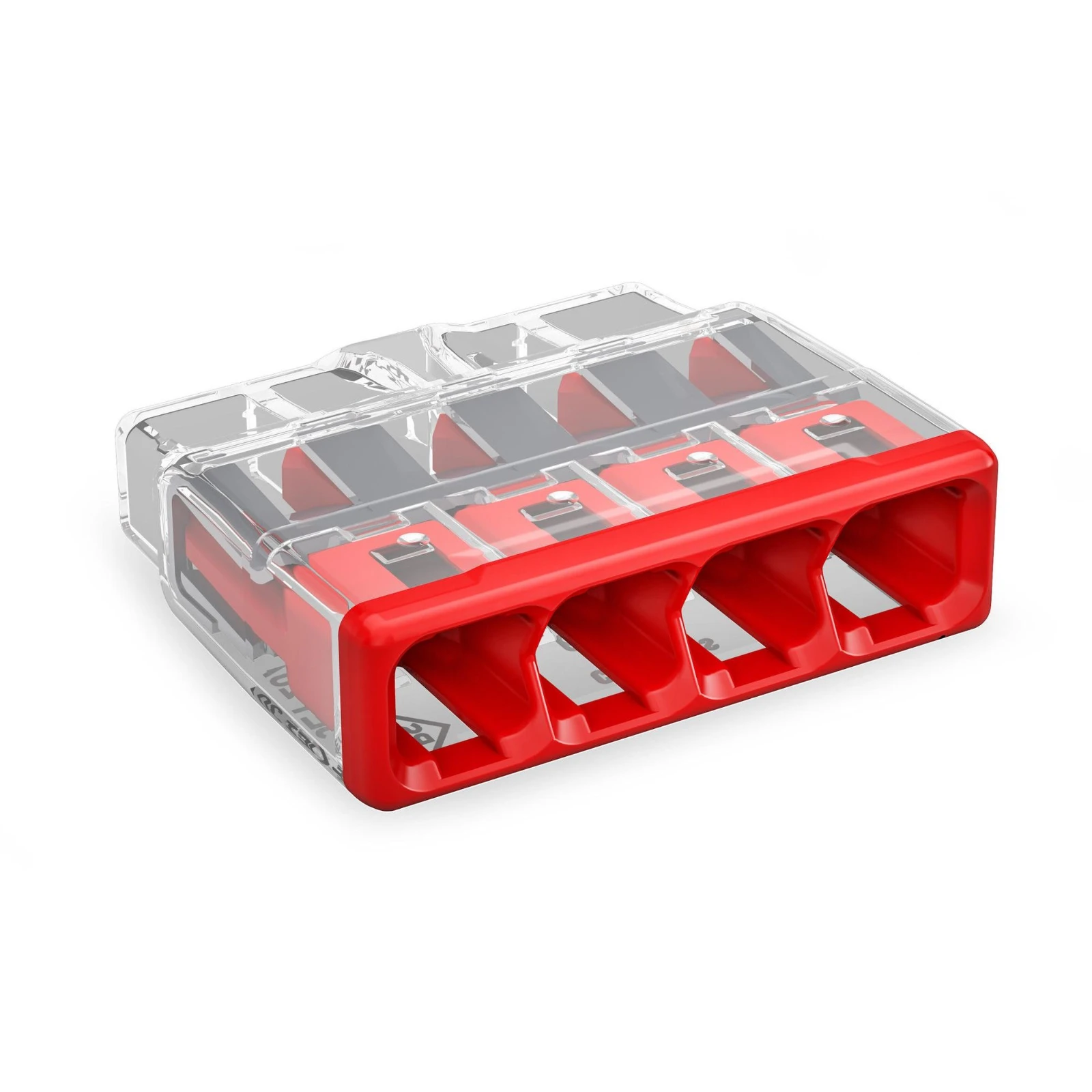

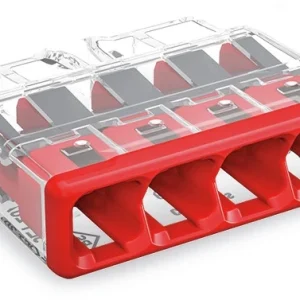

Wago 2773-404 4 Port Push In 32A Compact Splicing Connector
£22.08 Incl. VAT
Compact Splicing Connector, for all conductor types either solid or stranded cores with a minimum cable diameter of 0.75mm² solid core and 1.5mm² stranded core and a maximum of 4mm² for both solid or stranded cores; 2 conductor entry with Push-in connection. With clear transparent end of housing enabling you to view the perfect connection. Surrounding air temperature: max 85°C (T85). · · · Convenient wiring via extremely compact design · · Push-in termination of up to eight solid and stranded conductors · · Conductor range: 0.75 … 4 mm² “s” and 1.5 … 4 mm² “st” · · Any combination of conductor sizes is possible · · 32A Rated · · 50% Less Instertion Force than previous model
1040 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Push in terminal Colour Colourless Number of clamp positions 4 Nominal voltage 450 V Nominal current 32 A Nominal cross section 0.75 – 4 mm² Cable diameter 1.6 – 2 mm Conductor cross section solid (solid, stranded) 0.75 – 4 mm² AWG-range 12 – 14 Transparent Yes Suitable for solid core Yes Suitable for multi-wire core Yes With operation lever No Suitable for flexible core No · Technical Data Sheet – Click to Download
