Wago 3-Conductor Through Terminal Block With Lever And Push-In Cage Clamp 4mm With Test Portside And Center Markingfor Din-Rail 35 X 15 And 35 X 7.5 Push-In Cage Clamp 4mm Grey
£1.91 Incl. VAT

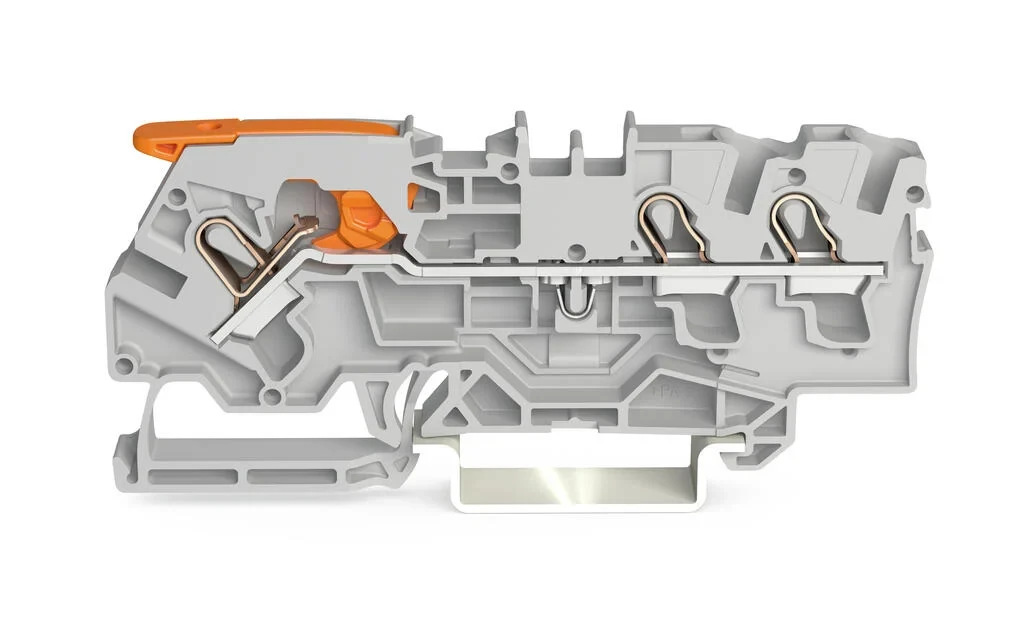

The 2104-1301 WAGO is a 3-pole through terminal block with a lever and Push-in CAGE CLAMP. It is rated for 600V and 32A, and can be used with conductors of 1.5 to 4mm. The terminal block is made of high-quality materials and is designed to withstand the rigors of everyday use. It is easy to install and can be used with a variety of different DIN rails. The 2104-1301 WAGO is a great choice for any project that requires a durable and reliable terminal block. · · · Rated for 600V and 32A · · Designed to withstand the rigors of everyday use · · Can be used with a variety of different DIN rails · · Nominal voltage (III/3) 800V
Out of stock
Description
Technical Specifications Technical Specifications Feed-through terminal block Type of electrical connection 2 Spring clamp connection Colour Grey Type of electrical connection 1 Spring clamp connection Rated current In 32 A Number of levels 1 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 0.5 mm² Connectable conductor cross section multi-wired 0.5 – 0.5 mm² Connectable conductor cross section solid-core 1.6 – 1.6 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.75 – 0.75 mm² · Technical Data Sheet – Click to Download
