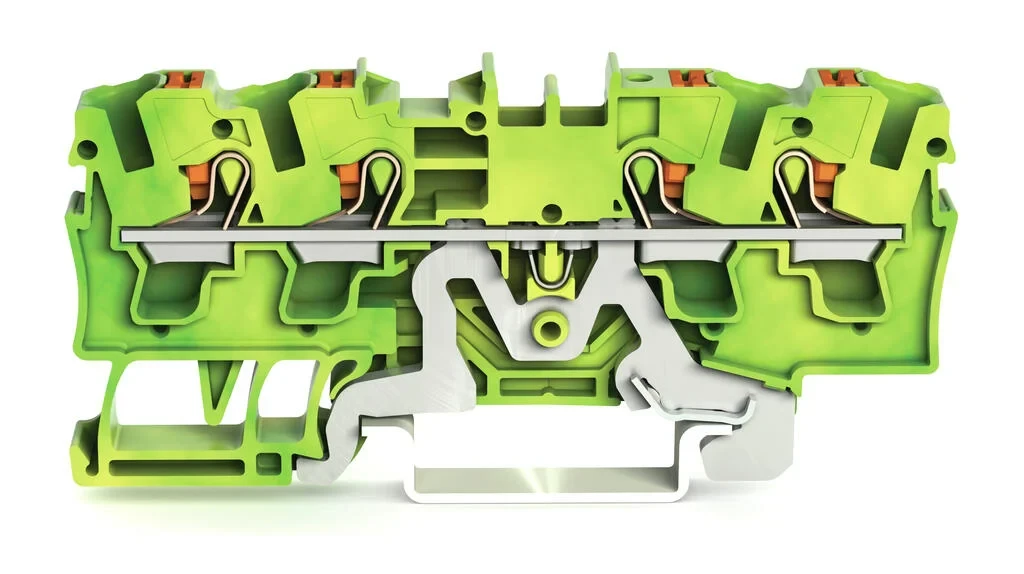

Wago 4-Conductor Ground Terminal Block With Push-Button 4mm² With Test Port Side And Center Marking For Din-Rail 35 X 15 And 35 X 7.5 Push-In Cage Clamp 4mm² Green-Yellow
£4.75 Incl. VAT
The WAGO 2204-1407 is a 4-pole, 4mm² earth terminal block with Push-in CAGE CLAMP technology. It is rated for 800V AC and 1200V DC. The terminal block is made of gray plastic and has a side and center marking. It is compatible with DIN rail 35 x 15 and 35 x 7.5.The Push-in CAGE CLAMP® technology allows for quick and easy wire termination without the need for tools. The wire is simply inserted into the terminal block and the lever is closed. The lever provides a positive connection that is both secure and reliable.The 2204-1407 WAGO also has a test port. This allows you to monitor the connection between the terminal block and the wire. This is useful for troubleshooting or ensuring that the connection is secure.The 2204-1407 WAGO is a versatile and reliable terminal block that is ideal for a variety of applications. It is easy to use and provides a secure connection for wires up to 4 mm². The terminal block is also compatible with DIN rail, making it easy to install and mount. · · · 800V AC and 1200V DC voltage rating · · Gray plastic housing · · Quick and easy wire termination · · Versatile and reliable terminal block
Out of stock
Description
Technical Specifications Technical Specifications Feed-through terminal block Colour Green/yellow Type of electrical connection 1 Spring clamp connection Type of electrical connection 2 Spring clamp connection Number of levels 1 Connectable conductor cross section fine-strand without cable end sleeve 0.5 – 0.5 mm² Connectable conductor cross section fine-strand with cable end sleeve 0.75 – 0.75 mm² Connectable conductor cross section multi-wired 0.5 – 0.5 mm² Connectable conductor cross section solid-core 1 – 1 mm² · Technical Data Sheet – Click to Download
